MERIH STAINLESS, located in Istanbul, Turkey, has built a solid reputation as a reliable manufacturer and supplier of top-notch stainless steel products for markets around the globe. Known for their precision engineering and commitment to high-quality standards, they specifically cater to the Dubai, UAE market with their Stainless Steel 202 Flanges. By blending cutting-edge production methods with rigorous quality control, MERIH STAINLESS guarantees that every flange is durable, dependable, and performs exceptionally well. Their dedication to excellence, prompt delivery, and a customer-focused approach has made them a go-to choice for industries in need of strong stainless steel solutions, offering both standard and tailored flanges to satisfy a variety of engineering needs.
Stainless Steel 202 flanges are primarily made up of 17–19% chromium, 4–6% nickel, and 6–7% manganese, with the remainder being iron and trace elements. This unique blend gives them an austenitic structure, decent corrosion resistance, and good formability. In terms of mechanics, SS 202 flanges boast a tensile strength of about 520–750 MPa, a yield strength of around 275–310 MPa, and an elongation of nearly 35%, making them quite resilient under moderate stress. They have a hardness that falls between 201–217 HB and can maintain stability at temperatures reaching up to 870°C. The combination of strength, ductility, and corrosion resistance makes them ideal for both structural and piping applications in various environments.
| ASME/ANSI B16.5 | Welding Neck Flange, Slipon Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| Pressure Class | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B16.47 | Welding Neck Flange, Blind Flange (Series A & B) |
| Pressure Class | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | (Orifice Flanges) Welding Neck Flange, Slipon Flange, Threaded Flange |
| Pressure Class | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Flange (111/134), Hubbed Slipon Flange (112), Hubbed Threaded Flange (113), Lapped Pipe End Flange (133), Plate Flange (101), Loose Plate Flange (102), Loose Plate with Weld-neck Flange (104), Blank Flange (105) |
| Pressure Class | PN 2.5 to PN 100 |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
Contact us to get a quick quote for your requirement.
Testing and certification of all Merih Stainless Flanges of Stainless Steel 202 will be done at all levels so that the material will be completely tested for performance and quality. The flange is tested as per international standards for mechanical, chemical, and dimensional inspections. With every order, CoC and MTR are provided with traceability against industry requirements. In response to specific requirements of a project, PMI, hardness tests, and other kinds of testing may be requested on an additional testing basis.

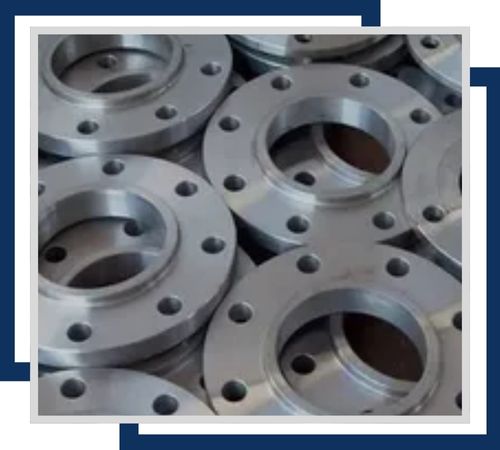

Stainless Steel 202 Threaded Flanges provide a secure, leak-proof connection with easy installation and removal. Ideal for applications requiring high corrosion resistance, they offer durability and strength in various industrial settings.

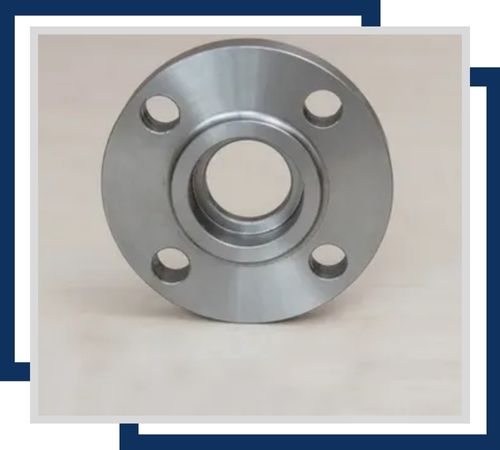

SS Socket 202 Weld Flanges feature a recessed socket for easy welding, providing a strong, corrosion-resistant connection. Ideal for high-pressure applications, they offer durability and reliable performance in challenging environments.

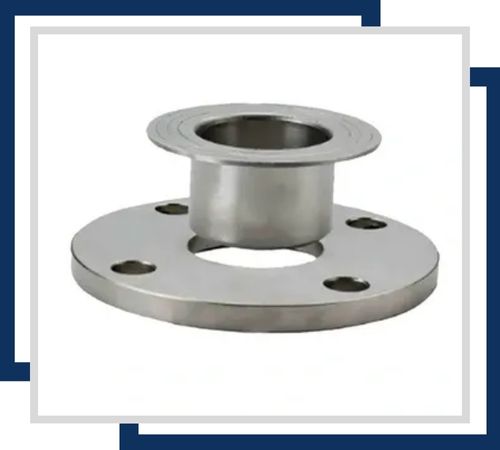

Stainless Steel 202 Lap Joint Flanges offer flexibility with easy alignment and disassembly. Their corrosion-resistant properties make them ideal for systems requiring frequent maintenance, ensuring durable and reliable connections.
You’ll find Stainless Steel 202 flanges widely utilized in the chemical, petrochemical, and food processing industries, thanks to their corrosion resistance and mechanical strength. They play a crucial role in piping systems, pressure vessels, and heat exchangers, providing secure and leak-proof connections. These flanges are also used in water treatment facilities, architectural projects, and industrial equipment where both durability and aesthetic appeal matter. Their versatility allows them to thrive in moderately corrosive environments and indoor settings. Plus, SS 202 flanges are popular for their cost-effectiveness and ease of fabrication, making them a smart choice for many applications.
