MERIH STAINLESS, located in Istanbul, Turkey, is a reputable manufacturer and supplier that specializes in top-notch stainless steel products, including Stainless Steel 309 Bars, specifically catering to clients in Dubai, UAE. Known for its precision engineering and strict adherence to international standards, MERIH STAINLESS blends cutting-edge production methods with thorough quality control to deliver bars that are both durable and reliable. With a strong dedication to excellence, the company serves a variety of industrial sectors, offering products that meet the high demands of modern engineering and construction applications, making it a go-to partner for businesses in search of superior stainless steel solutions in the UAE market.
Stainless Steel 309 Bars are primarily made up of iron, 23% chromium, and 13% nickel, which gives them outstanding resistance to oxidation and corrosion. These bars boast a high melting point and exceptional strength at elevated temperatures, making them perfect for heat-resistant applications. With a tensile strength typically ranging from 515 to 700 MPa and a yield strength of about 205 to 310 MPa, they maintain their structural integrity even under stress. The alloy’s hardness falls between 90 and 95 HRB, while it also offers good ductility and toughness, ensuring reliable performance in demanding environments like high-temperature furnaces, chimneys, and industrial equipment that undergo thermal cycling.
| Specifications | ASTM A276, ASTM A479 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 309 Round Bars | Outside Diameter in the range of 4mm to 500mm |
| SS 309 Bright Bars | Outside Diameter in the range of 4mm to 100mm |
| SS 309 Hex Bars | 18mm – 57mm (11/16″ to 2-3/4″) |
| SS 309 Square Bars | 18mm – 47mm (11/16″ to 1-3/4″) |
| SS 309 Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm, Custom Size Stainless Steel Flats available |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
Element | Content (%) |
Iron, Fe | 60 |
Chromium, Cr | 23 |
Nickel, Ni | 14 |
Manganese, Mn | 2 |
Silicon, Si | 1 |
Carbon, C | 0.20 |
Phosphorous, P | 0.045 |
Sulfur, S | 0.030 |
Properties | Metric | Imperial |
Tensile strength | 620 MPa | 89900 psi |
Yield strength (@ strain 0.200%) | 310 MPa | 45000 psi |
Izod impact | 120 – 165 J | 88.5 – 122 ft-lb |
Shear modulus (typical for steel) | 77 GPa | 11200 ksi |
Elastic modulus | 200 GPa | 29008 ksi |
Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
Elongation at break (in 50 mm) | 45% | 45% |
Hardness, Brinell | 147 | 147 |
Hardness, Rockwell B | 85 | 85 |
Hardness, Vickers (converted from Rockwell B hardness) | 169 | 169 |
Contact us to get a quick quote for your requirement.
We carries out rigorous performance tests on complete batches of Stainless Steel 309 Bars with regards to chemical composition, mechanical properties, and the degree of corrosion resistance. Our products are certified by recognized authorities regarding conformity to international standards for ensuring reliability and consistency with every delivery.

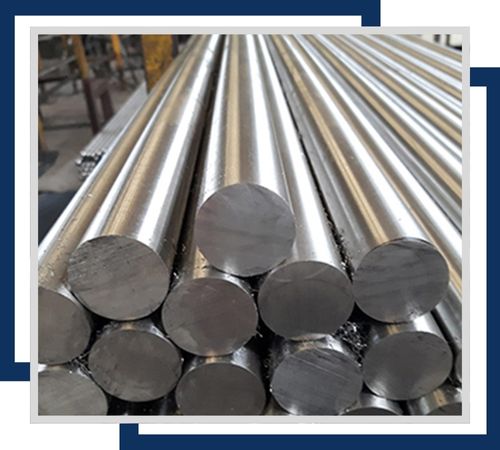

Stainless Steel 309 Round Bars offer excellent corrosion resistance and are available in diameters ranging from 6 mm to 200 mm. Ideal for high-temperature applications and structural uses, they ensure durability and strength.

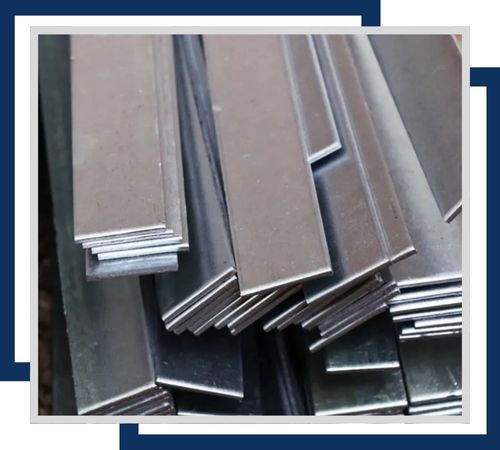

Featuring good corrosion resistance, Stainless Steel 309 Flat Bars come in widths from 20 mm to 150 mm and thicknesses from 5 mm to 50 mm. These bars are used in construction, manufacturing, and industrial applications for their thermal stability.

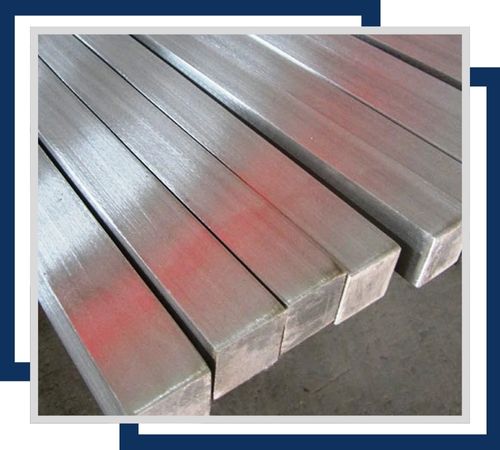

Known for their corrosion resistance, Stainless Steel 309 Square Bars are available in sizes from 10 mm to 100 mm. They are utilized in various structural and industrial applications where strength and heat resistance are required.

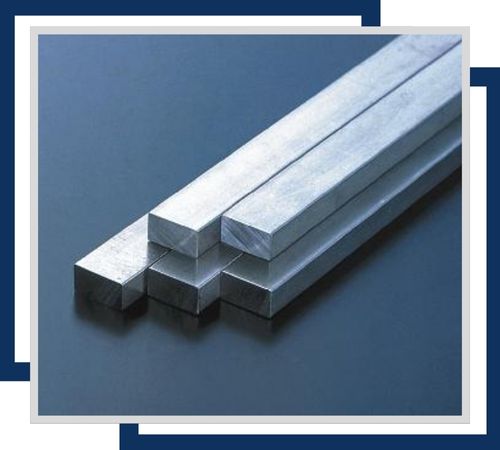

Stainless Steel 309 Rectangular Bars provide corrosion resistance and are offered in dimensions like 20 mm x 10 mm to 150 mm x 50 mm. These bars are suitable for use in high-temperature environments and structural applications.

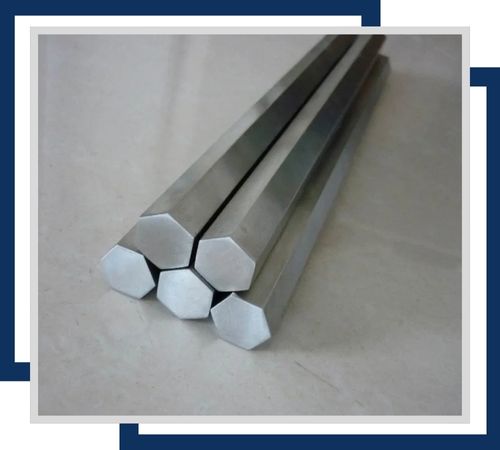

Offering corrosion resistance, Stainless Steel 309 Hexagonal Bars are available in sizes ranging from 6 mm to 50 mm across flats. They are often used in machining, fabrication, and for applications requiring heat resistance.

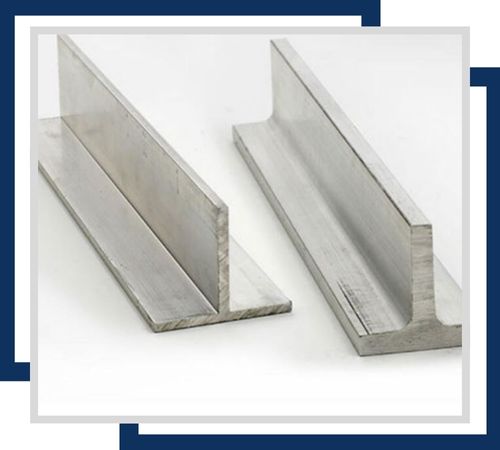

Stainless Steel 309 T-Bars are known for their high-temperature resistance and oxidation resistance. Available in sizes ranging from 15 mm x 15 mm x 6 mm to 100 mm x 100 mm x 12 mm, they are used in industrial applications such as heat exchangers and furnace components, providing durability and strength in extreme conditions.
Stainless Steel 309 Bars find extensive use in industries that require high-temperature resistance and corrosion protection. They are perfect for furnace parts, heat exchangers, boiler components, and chemical processing equipment. Additionally, they are utilized in the automotive, aerospace, and petrochemical sectors where durability in extreme conditions is crucial. Their excellent oxidation resistance makes them ideal for welding and fabricating structural components that are exposed to harsh environments. In construction, 309 bars are employed for architectural applications that demand both aesthetic appeal and long-lasting performance. Their versatility truly shines across various applications.
