MERIH STAINLESS, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of premium stainless steel products, with a particular focus on precision-engineered Stainless Steel 309 Tubing. This tubing is celebrated for its remarkable high-temperature resistance, strength, and durability, all thanks to cutting-edge production techniques and rigorous quality control measures. Catering to sectors like power generation, chemical processing, petrochemical, and aerospace, MERIH STAINLESS guarantees that every tube adheres to international standards. With a commitment to timely delivery, customization, and customer satisfaction, the company has built a solid reputation as a reliable source for stainless steel tubing solutions around the globe.
Stainless Steel 309 Tubing is crafted from an austenitic chromium-nickel stainless steel alloy, specifically designed to excel in high-temperature conditions. Its typical chemical makeup features 23–25% chromium and 12–15% nickel, which together offer outstanding resistance to oxidation, scaling, and corrosion in extreme environments. On the mechanical side, 309 tubing showcases impressive tensile strength, yield strength, and toughness, ensuring it maintains its structural integrity even under thermal stress and challenging industrial conditions. It’s also highly resistant to creep and thermal fatigue, making it perfect for continuous high-temperature applications.
| Specifications | ASTM A/ASME SA213 / A249 / A269 |
| Dimensions | ASTM, ASME and API |
| SS 309 Tubes Size | 10.29 OD (mm) – 762 OD (mm) |
| Thickness | 0.35 OD (mm) to 6.35 OD (mm) in thickness ranging from 0.1mm to 1.2mm. |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round Tubes, Custom Tubes, Square Tubes, Rectangular Tubes, “U” Shape, Hydraulic Tubes |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
| Grade | 309 | |
|---|---|---|
| min | max | |
| C | – | 0.20 |
| Mn | – | 2 |
| Si | – | 1 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 18.0 | 23.0 |
| Mo | – | – |
| Ni | 8.0 | 14.0 |
| N | – | – |
| Grade | 309 | |
|---|---|---|
| Tensile Strength (MPa) min | 620 | |
| Yield Strength 0.2% Proof (MPa) min | 310 | |
| Elongation (% in 50mm) min | 45 | |
| Hardness | Rockwell B (HR B) max | 85 |
| Brinell (HB) max | 169 | |
Contact us to get a quick quote for your requirement.
We provides quality tested Stainless Steel 309 Tubing. All tubing is subjected to dimensional, mechanical and chemical analysis and tested to all industry standards for performance and durability. Compliance certificates are issued along with the products, which assures the strength and reliability of the product for multiple applications in any industry.

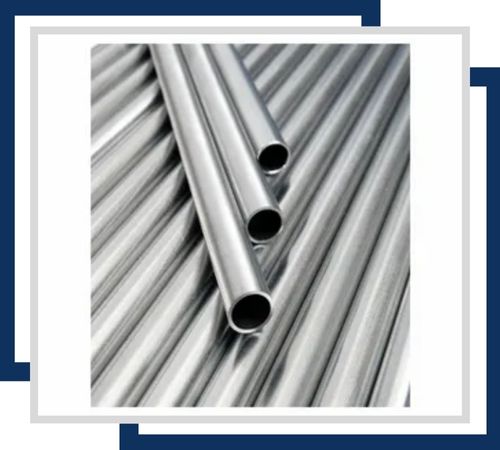

Stainless Steel 309 Seamless Tubing offers excellent corrosion resistance and is available in sizes ranging from 1/8″ to 12″ nominal diameter. It is ideal for high-temperature applications, with superior strength and durability. This tubing type ensures leak-free connections due to its seamless construction.

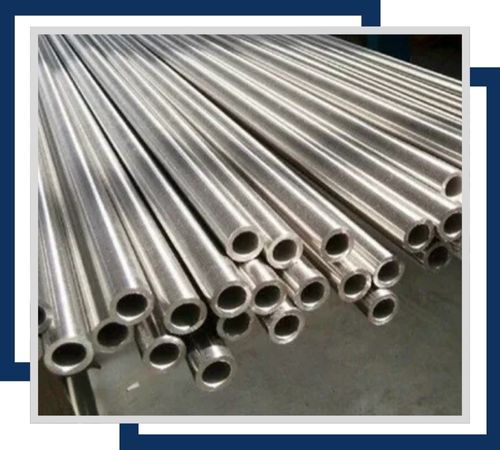

Stainless Steel 309 Welded Tubing provides good corrosion resistance and is available in sizes from 1/8″ to 24″ nominal diameter. It is produced by welding rolled strips of 309 stainless steel, making it cost-effective for various industrial applications. The welded joints are robust, ensuring long-term reliability.
Stainless Steel 309 Heat Exchanger Tube excels in high-temperature environments and comes in sizes from 1/4″ to 12″ outer diameter. Its excellent corrosion resistance makes it suitable for chemical processing and power generation industries. This tubing ensures efficient heat transfer and durability in demanding conditions.

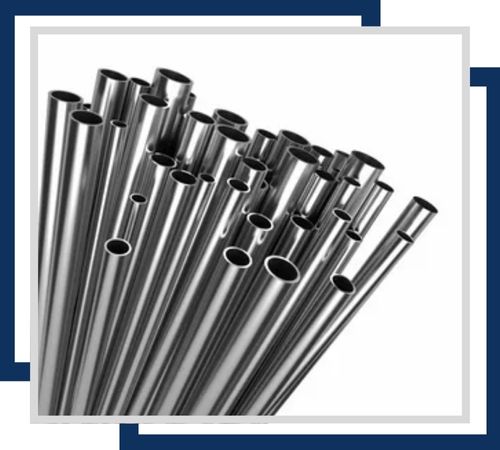

Stainless Steel 309 Instrumentation Tubing, available in sizes from 1/8″ to 1″ nominal diameter, offers superior corrosion resistance and precision. It is ideal for use in high-pressure and high-temperature instrumentation systems. The smooth internal surface ensures accurate and reliable fluid flow.
Stainless Steel 309 Boiler Tubes provide exceptional corrosion resistance and are available in sizes from 1/4″ to 5″ outer diameter. They are designed to withstand high temperatures and pressures in boiler systems. These tubes offer longevity and efficiency in steam generation and other heat-related processes.

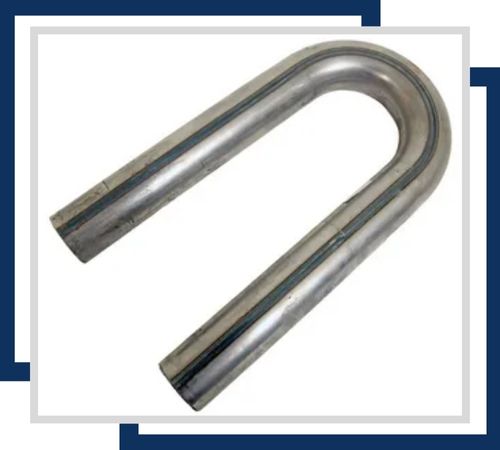

Stainless Steel 309 U-Tubes, with sizes ranging from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and are shaped for efficient heat exchange in compact spaces. They are widely used in heat exchangers, condensers, and economizers. Their U-shape design ensures optimal thermal performance.

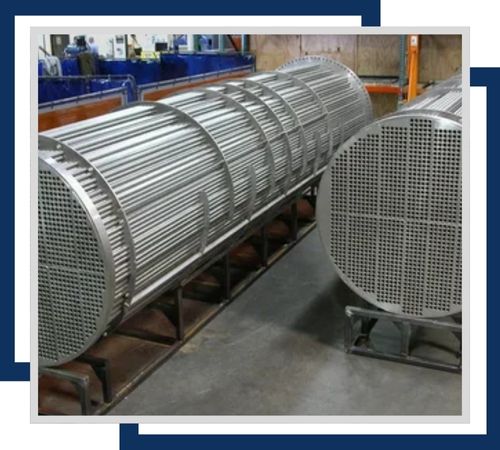

Stainless Steel 309 Condenser Tube provides high corrosion resistance and is available in sizes from 1/4″ to 2″ outer diameter. It is used in condensers for efficient heat transfer in various industrial processes. This tubing type ensures durability and performance in corrosive environments.

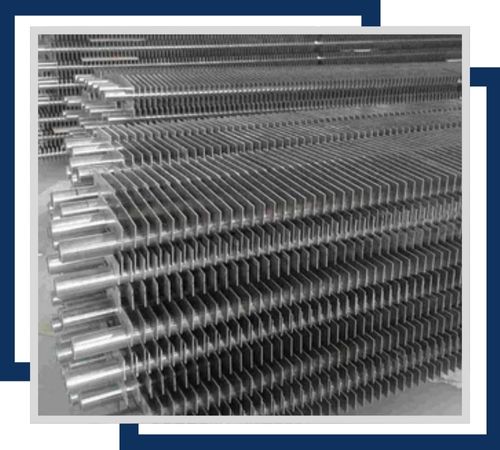

Stainless Steel 309 Fin Tubes, available in sizes from 1/4″ to 3″ outer diameter, offer excellent corrosion resistance and enhanced heat transfer efficiency. The finned design increases the surface area, making them ideal for heat exchangers and cooling systems. These tubes provide reliable performance in high-temperature applications.
This tubing finds its place in various industries that demand durable, heat-resistant, and corrosion-resistant solutions. It’s particularly suited for furnace components, heat exchangers, kiln liners, boiler parts, and equipment used in petrochemical processing. Additionally, it’s utilized in power plants, industrial heaters, and aerospace applications where both strength and high-temperature stability are crucial. Available in a range of sizes, wall thicknesses, and finishes, 309 tubing offers engineers and designers a high-performance option for their most demanding high-temperature projects.
