Home > Forged Fittings > Stainless Steel 310H Forged Fittings
MERIH STAINLESS, based in Istanbul, Turkey, is a reliable manufacturer and supplier of top-notch stainless steel products. Their Stainless Steel 310H Forged Fittings are crafted specifically for high-temperature and corrosive environments, delivering exceptional strength, durability, and reliability. Made in line with international standards, these fittings ensure precise dimensions, leak-proof connections, and long-lasting performance. Perfect for industries like chemical processing, petrochemicals, furnaces, and power generation, MERIH STAINLESS 310H forged fittings guarantee safe, robust, and maintenance-free operation. They’re designed to perform consistently under extreme heat and thermal cycling, making them ideal for critical piping systems.
Stainless Steel 310H Forged Fittings are primarily made of iron, high chromium, and nickel, with a higher carbon content than standard 310 to enhance high-temperature strength and creep resistance. These fittings showcase impressive tensile and yield strength, hardness, ductility, and toughness when faced with thermal stress. The alloy offers outstanding resistance to oxidation, scaling, and corrosion, especially in high-temperature and chloride-rich settings. The forged manufacturing process boosts structural integrity, uniform strength, and durability, ensuring these fittings maintain their mechanical and chemical performance even in demanding high-temperature industrial applications.
| Standard | ASTM A182 / ASME SA182 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Contact us to get a quick quote for your requirement.
We ensures the highest standards for its stainless steel 310H lattice fittings through stringent testing and certification programs. Extensive testing of each component is carried out, including dimensional testing, mechanical testing and corrosion resistance evaluation. Certifications such as Mill Test Reports (MTR) and ISO compliance ensure the reliability and performance of each fitting.

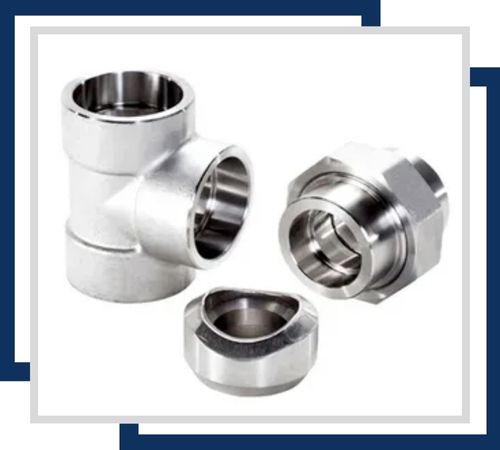

Corrosion-resistant and designed for high-temperature applications, these fittings are ideal for joining pipes. Sizes typically range from 1/4 inch to 4 inches. Dimensions vary based on pipe size, with standard schedules available.

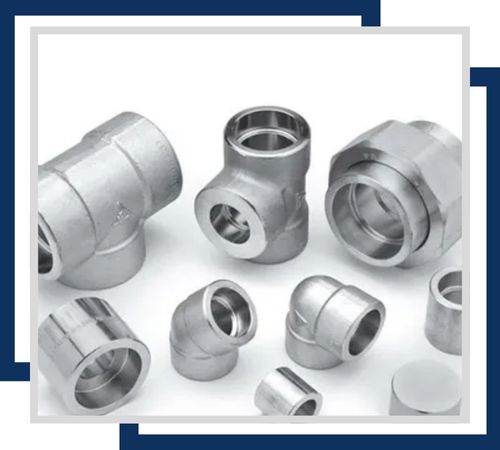

Offering excellent corrosion resistance, these fittings are used where welding is impractical. Common sizes range from 1/8 inch to 2 inches. They are available in various threads per inch, adhering to ANSI standards.

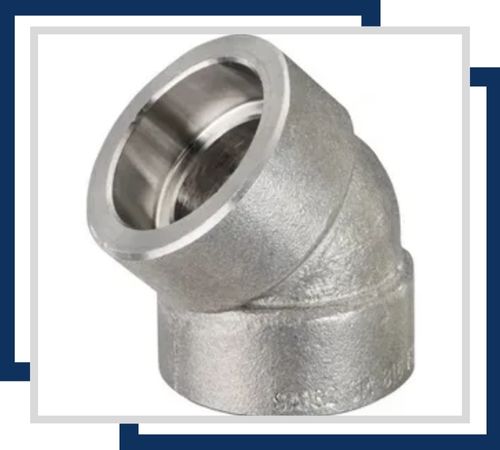

This elbow provides high resistance to oxidation and corrosion at elevated temperatures. Available in sizes from 1/2 inch to 4 inches, it helps in redirecting flow at a 45-degree angle. Dimensions conform to ANSI/ASME standards.

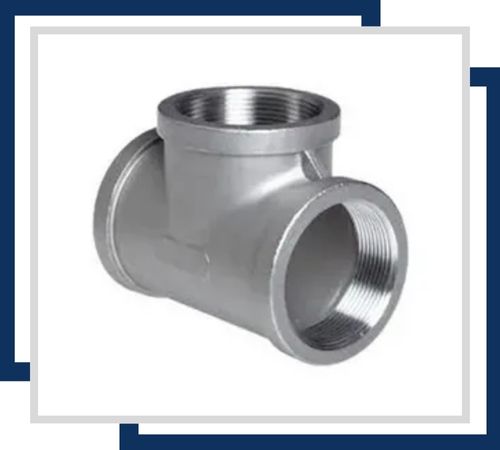

Corrosion-resistant and durable, the threaded tee connects three pipes. Sizes generally range from 1/4 inch to 4 inches, with dimensions following standard pipe thread specifications for ease of connection.

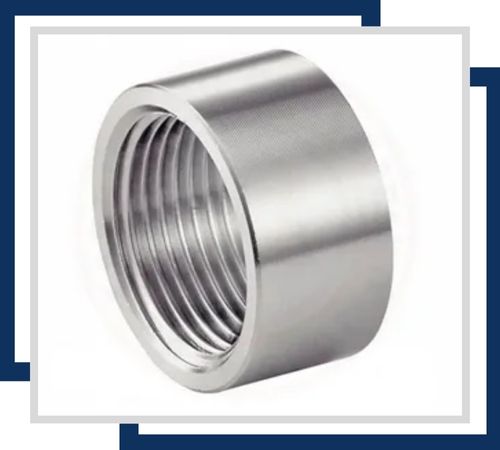

Offering superior resistance to high temperatures and corrosion, this coupling is used for pipe connections. Sizes typically range from 1/4 inch to 2 inches. It features internal threads that match standard pipe sizes.

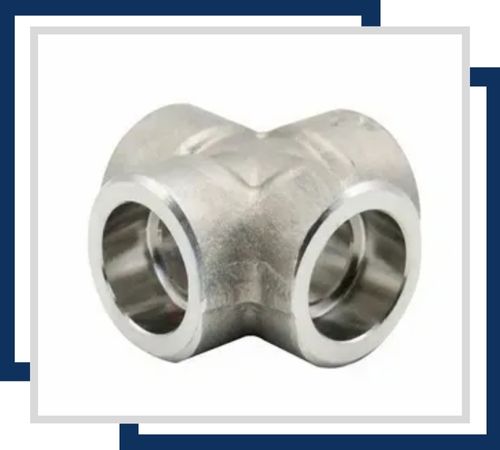

With excellent corrosion resistance, the socket weld cross allows for the connection of four pipes at a single junction. Common sizes range from 1/2 inch to 2 inches, with dimensions based on standard pipe specifications.
Stainless Steel 310H Forged Fittings are extensively utilized in industries that require high-performance and heat-resistant piping solutions. They’re perfect for chemical processing units, petrochemical plants, boilers, furnaces, heat exchangers, thermal power plants, and refineries. These fittings connect pipes, valves, and machinery in systems that face extreme heat or corrosive conditions. Their elevated carbon content guarantees superior creep and tensile strength, while their excellent oxidation resistance ensures they can handle the toughest environments.
