MERIH STAINLESS, located in Istanbul, Turkey, has made a name for itself as a leading manufacturer and supplier of Stainless Steel 316/316L Forged Fittings. They pride themselves on delivering top-notch products that adhere to international standards. With state-of-the-art manufacturing facilities and a strong focus on precision engineering, the company offers fittings that are not only durable but also resistant to corrosion, making them perfect for demanding industries. The Stainless Steel 316/316L Forged Fittings are particularly sought after for their impressive strength, excellent weldability, and remarkable resistance to chloride environments. MERIH STAINLESS is dedicated to ensuring reliability, performance, and timely delivery to its global customers, establishing itself as a trusted partner for industries that need high-quality forged fittings for critical applications.
These fittings are made from molybdenum-bearing austenitic stainless steels, primarily composed of chromium, nickel, and 2–3% molybdenum, which enhances their resistance to pitting and crevice corrosion. Type 316 has a higher carbon content, which boosts strength at elevated temperatures, while 316L features lower carbon, offering outstanding resistance to sensitization and intergranular corrosion after welding. Both grades showcase impressive tensile and yield strength, excellent toughness, and dependable hardness. Their mechanical properties, along with their resistance to oxidation and chloride attack, make them ideal for use in aggressive and corrosive environments.
Specifications ASTM A182 & ASME SA182
Standard ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size 1/8” NB to 4” NB (Socketweld & Screwed-Threaded)
Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Type Socketweld Fittings, Screwed-Threaded Fittings
Forged Fittings Items 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc.
Type Socketweld Fittings, Screwed-Threaded Fittings
Grade 316 / 316L UNS (S31600, S31603), DIN (1.4401 / 1.4436, 1.4404 / 1.4435)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316/ | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316L | 1399 °C (2550 °F) |
Contact us to get a quick quote for your requirement.
We ensures Stainless Steel 316/316L Forged Fittings of the highest quality. The products that leave our portal are all tested dimensionally, mechanically and chemically so as to guarantee performance and durability. We provide complete certifications in the form of material certificates and testing reports. All those cross international standards for all our customers’ satisfaction.

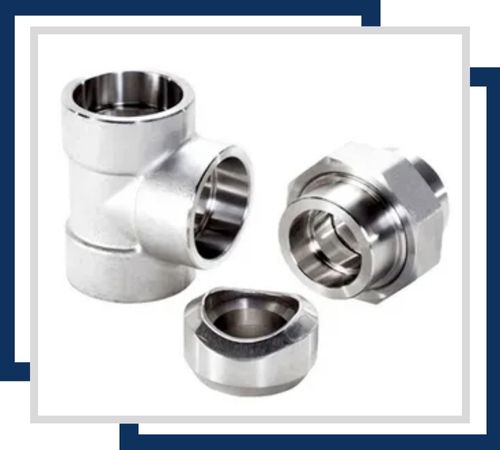

These fittings are available in various sizes, typically from 1/8″ to 4″ in diameter. They are designed for high-pressure applications and provide excellent resistance to corrosion, especially in marine environments.

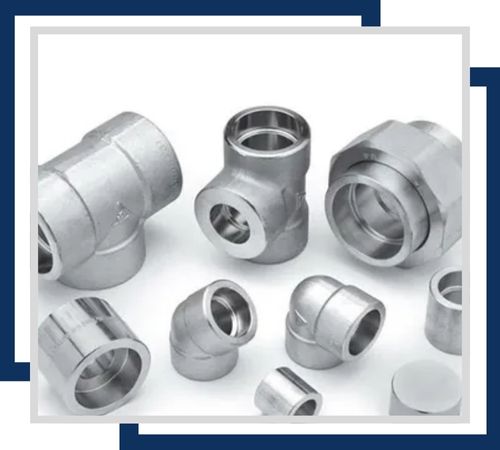

Threaded fittings come in sizes ranging from 1/8″ to 6″. They offer superior corrosion resistance and are ideal for use in aggressive environments such as chemical processing and marine applications.

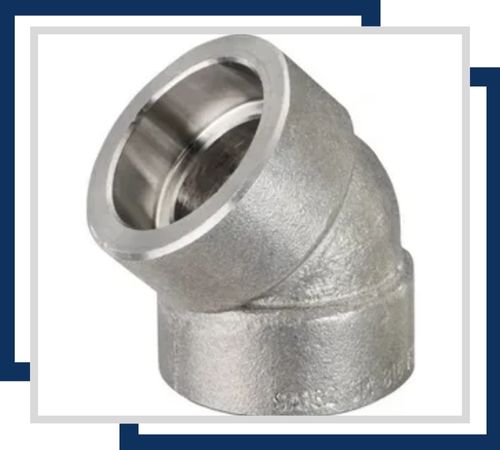

This elbow fitting is commonly available in sizes from 1/2″ to 4″. It facilitates smooth flow changes and resists corrosion effectively, making it suitable for high-pressure and high-temperature systems.

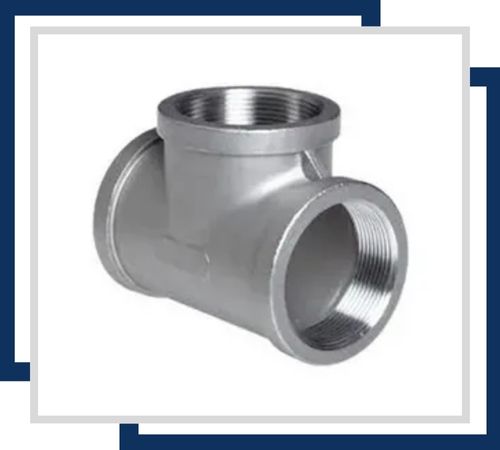

Threaded tees are available in sizes ranging from 1/8″ to 6″. They are used to connect three pipes at a junction and offer excellent resistance to corrosion and high temperatures.
This fitting is typically available in sizes from 1/8″ to 4″. It is used to connect a pipe to another fitting or equipment and provides high resistance to corrosion and wear.

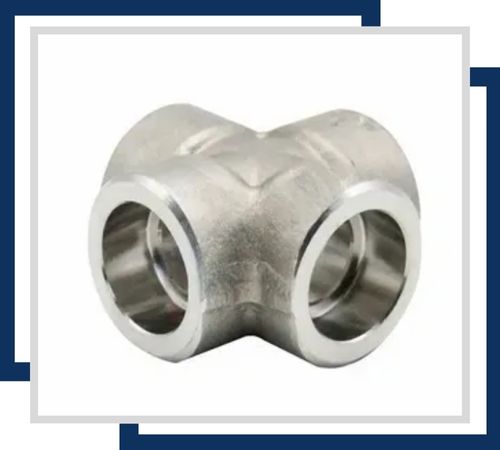

Available in sizes from 1/2″ to 4″, the socket weld cross is used to connect four pipes at right angles. It offers excellent corrosion resistance and is suitable for high-pressure applications.
Stainless Steel 316/316L Forged Fittings find their place in various industries that demand exceptional corrosion resistance and durability. They are commonly used in chemical processing, marine, oil and gas, food processing, and pharmaceutical sectors due to their ability to endure harsh chemicals and saline conditions. Additionally, these fittings are extensively utilized in piping systems for power generation, heat exchangers, paper and pulp production, and water treatment facilities. Thanks to their excellent weldability and resistance to chloride-induced corrosion, Stainless Steel 316/316L Forged Fittings guarantee long-lasting reliability and efficiency.
