MERIH STAINLESS, based in Istanbul, Turkey, has made a name for itself as a top-notch manufacturer and supplier of high-quality stainless steel products, delivering robust solutions for both industrial and commercial needs. One of their standout products, Stainless Steel 409 Pipes, is designed to perform exceptionally well in environments with moderate corrosion and high temperatures. Renowned for their reliability, these pipes promise a long service life, impressive thermal stability, and strong resistance to oxidation. MERIH STAINLESS takes pride in ensuring that each pipe meets international standards, blending precision engineering with rigorous quality control. These pipes find extensive use in automotive, industrial, and construction sectors for efficient fluid and gas transport.
Stainless Steel 409 Pipes are made from ferritic stainless steel, featuring about 10–11.5% chromium, low carbon content (≤0.08%), and trace amounts of titanium, manganese, and silicon. This unique blend gives them excellent oxidation resistance and moderate corrosion protection in high-temperature settings. In terms of mechanical properties, 409 Pipes boast a tensile strength of around 450–550 MPa, a yield strength of 250–350 MPa, and good ductility for bending and shaping. Their ability to resist high-temperature oxidation makes them ideal for exhaust systems and industrial furnaces, while their moderate corrosion resistance ensures they hold up well in mildly corrosive environments.
| Item | Stainless Steel 409 Pipe |
| Standard | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Type | Seamless / ERW / Welded / Fabricated / CDW |
| Outer Diameter Size | SEAMLESS – 1/2″ NB TO 18″ NB WELDED / ERW- 1″ NB TO 16″ NB EFW – 8″ NB TO 110″ NB |
| Form | Round Pipes, Square Pipes, Rectangular Pipe, “U” Shape Pipes, Hydraulic Pipes |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size End: Plain End, Beveled End, Treaded |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiographic Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| Grade | C | Mn | Si | P | S | Cr | MO | Ni | CU | |
| 409 | Min | – | – | – | – | – | 10.5 | – | – | – |
| max | 0.03 | 1.00 | 1.00 | 0.04 | 0.02 | 11.7 | – | 0.5 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) | Brinell (HB) | ||||
| 409 | 380 | 170 | 20 | 88 | 0.5t |
Contact us to get a quick quote for your requirement.
We tests all kinds of stainless steel 409 piping with high emphasis on quality and performance. In addition, international standards such as ASTM and ASME are in place for any product. Even each batch in terms of machinery quality, dimensional accuracy, or corrosion resistance guarantees that the resultant pipes are going to be available with reliable output.

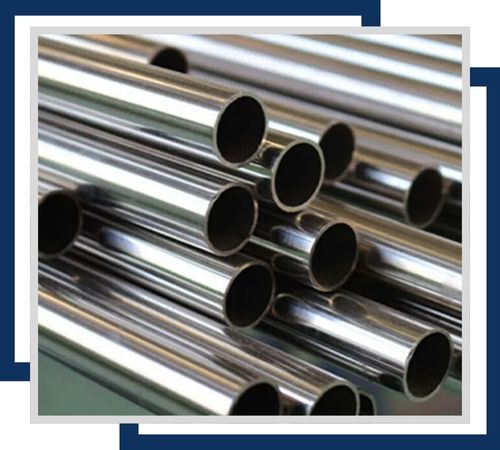

Stainless Steel 409 is a ferritic alloy known for its high resistance to oxidation and corrosion. Commonly used in automotive exhaust systems and industrial applications, it offers good strength and durability.

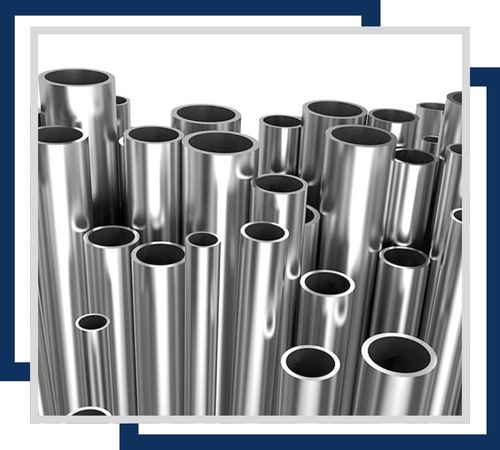

Stainless Steel 409 seamless pipe features high resistance to oxidation and corrosion, making it ideal for exhaust systems and industrial applications. Its seamless construction provides superior strength and reliability.

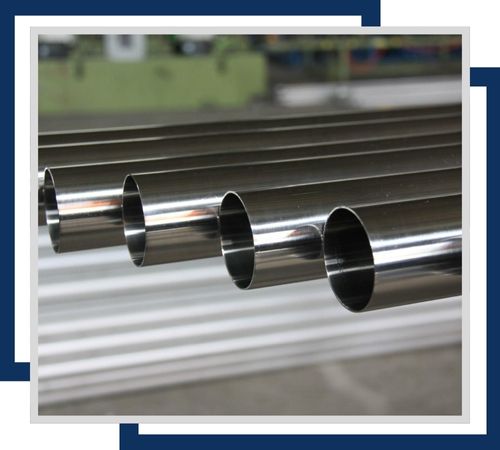

Stainless Steel 409 welded pipe combines high oxidation and corrosion resistance with durability. It’s commonly used in automotive exhaust systems and industrial applications, offering strength through its welded construction.

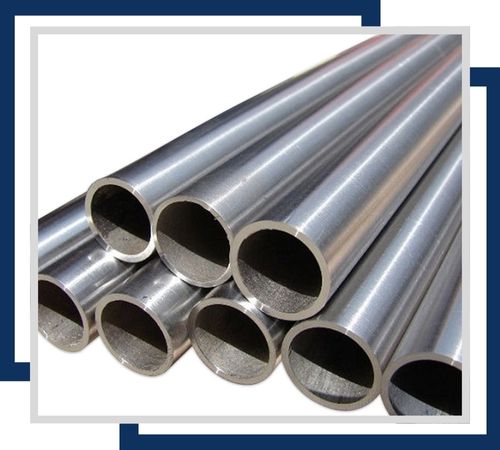

Stainless Steel 409 ERW (Electric Resistance Welded) pipe offers excellent resistance to corrosion and oxidation. It’s used in automotive and industrial applications, featuring strong welds and good mechanical properties.
Stainless Steel 409 EFW (Electric Fusion Welded) pipe provides excellent corrosion and oxidation resistance. Ideal for automotive and industrial uses, it features strong, uniform welds and high durability.

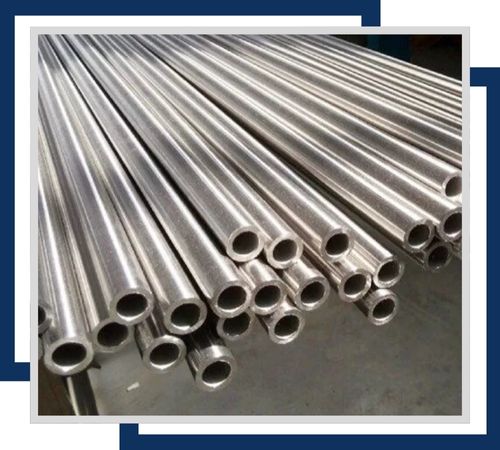

Stainless Steel 409 fabricated pipe is engineered for strength and durability, offering excellent resistance to oxidation and corrosion. It’s commonly used in customized applications, including exhaust systems and industrial components.
Merih Stainless is a leading supplier, and stockist of high-quality Stainless Steel 409 Pipes in Istanbul, Turkey. Our products are widely used in various applications, and we are committed to delivering excellent service, resulting in high customer satisfaction. Our unique finishing techniques further distinguish us in the stainless steel industry. We are dedicated to consistently providing superior products and effectively meeting our customer’s needs.
Stainless Steel 409 Pipes are a popular choice in the automotive and industrial fields where heat and corrosion resistance are essential. They’re frequently used in exhaust systems, heat exchangers, and automotive mufflers because they can handle high temperatures and resist oxidation. Moreover, 409 Pipes are utilized in industrial furnaces, HVAC systems, and petrochemical plants where moderate corrosion resistance is a must. These pipes are also great for ducting and transporting gases, making them a versatile option for various applications.
