MERIH STAINLESS, based in Istanbul, Turkey, is a trusted stainless steel product manufacturer and supplier that offers stainless steel 409L tubing. Renowned for precision production and strict quality control, MERIH STAINLESS has tubing solutions that suit the requirements of industries like automotive, industrial fabrication, and construction. With the state-of-the-art production facilities and compliance with international standards, the company provides long-lasting and high-performance products. Their dedication to customer satisfaction and prompt delivery has established them as a brand name for affordable and corrosion-resistant stainless steel tubing.
Stainless steel 409L tubing is produced using a low-carbon form of ferritic stainless steel, generally containing 10.5–11.75% chromium and up to 0.03% carbon. The lower content of carbon lowers carbide precipitation during the welding process, improving corrosion resistance and weldability. The alloy is also commonly comprising titanium stabilization to further enhance resistance to sensitization. The tubing has moderate tensile strength, typically between 350–500 MPa, with good yield strength and high resistance to oxidation under high temperatures. Its ferritic microstructure provides excellent thermal conductivity and formability that makes it a good candidate for numerous applications in industry.
| Material | Grade |
|---|---|
| GRADES | TP 409L Stainless Steel Tubes / UNS S40903 / DIN 1.4512 |
| SIZE | 1/2″ NB to 24″ NB |
| STANDARDS | ASTM A213, ASTM A249, ASTM A554, ASTM A269, ASTM A270, ASTM A790, ASTM A789 |
| TYPE | Seamless Tubes, Welded Tubes, EFW Tubes, ERW Tubes, Fabricated Tubes, Cold Drawn Welded Tubes (CDW Tubes) |
| FORM | Round Tubes, Square Tubes, Rectangular Tubes, Oval Tubes, Hydraulic Tube, etc. |
| END | Plain End, Treaded, Beveled End |
| TOLERANCE on Length | Commercial Length: 6000mm +/- 30mm Fix Length: from 1200 mm up to 12000mm with a tolerance up to -0/+ 5mm |
| FINISH | Seamless, Welded, Brushed, Pickled, Solution Annealed and Pickled up to O.D. 219.1mm, Polished Grit 120 – 600, Mirror Polished |
| AISI 409L | Maximum | Minimum |
|---|---|---|
| Ni | 28.00 | 23.00 |
| C | 0.20 | – |
| Mn | 2.00 | – |
| P | 00.045 | – |
| S | 00.035 | – |
| Si | 1.00 | – |
| Cr | 23.0 | 19.0 |
| Mo | 5.00 | 4.00 |
| N | 00.25 | 00.10 |
| CU | 2.00 | 1.00 |
| Element | Grade 409L |
|---|---|
| Density | 8 |
| Melting Range | 1300 -1390 ℃ |
| Tensile Stress | 490 |
| Yield Stress (0.2%Offset) | 220 |
| Elongation | 35% minimum |
| Hardness (Brinell) | – |
Contact us to get a quick quote for your requirement.
We ensures that the stainless steel 409L tubing maintains rigorous testing and certification processes to ensure excellent standards. All our products have completed extensive tests for dimensional accuracy, corrosion resistance, and mechanical properties. Certified to international quality standards, each batch is held up against stringent performance standards, ensuring reliability and durability in a wide variety of applications.

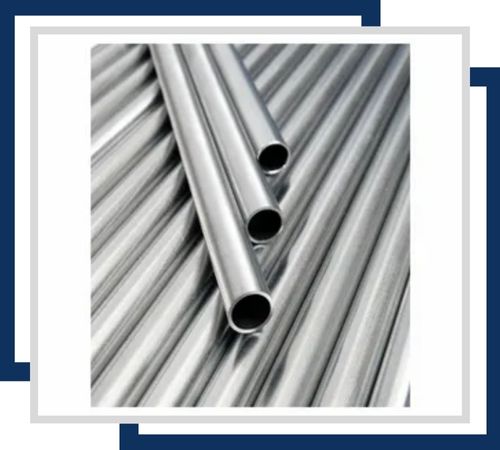

Offering excellent corrosion resistance, Stainless Steel 409L Seamless Tubing is known for its uniformity and strength. It typically comes in sizes ranging from 6mm to 350mm in diameter and lengths of up to 6 meters. Ideal for applications requiring high pressure and corrosive resistance.

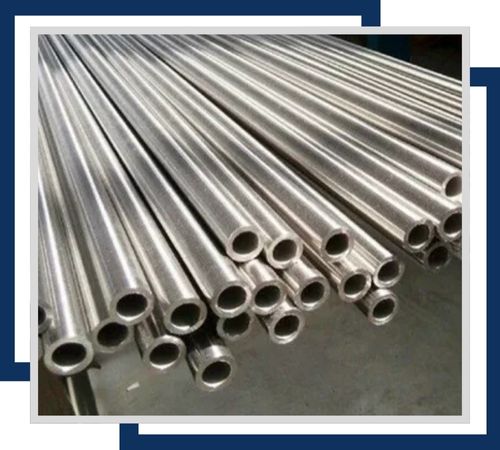

Stainless Steel 409L Welded Tubing provides superior resistance to chloride-induced stress corrosion cracking. Available in sizes from 10mm to 150mm in diameter and standard lengths of 6 meters. It is often used in industrial and chemical processing applications where weld strength is critical.

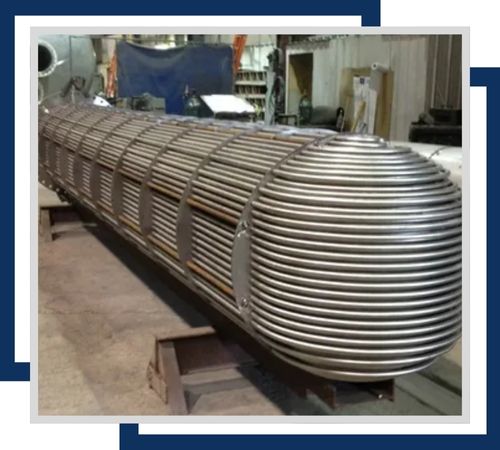

Featuring outstanding corrosion resistance, Stainless Steel 409L Heat Exchanger Tubes are used in demanding environments. Sizes typically range from 6mm to 50mm in diameter, with wall thickness varying from 1mm to 3mm. These tubes are designed for high temperature and pressure conditions.

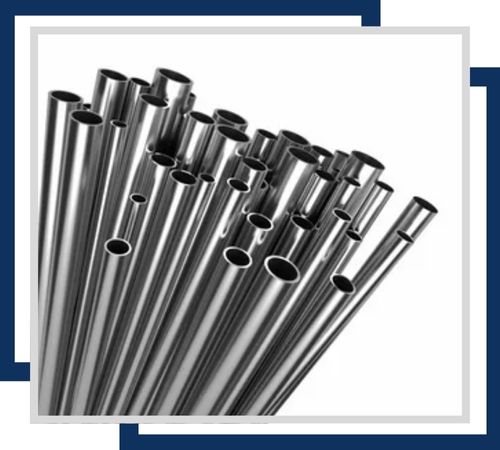

Stainless Steel 409L Instrumentation Tubing offers excellent resistance to corrosion and is ideal for precise measurement systems. Common sizes include 1/8″ to 1/2″ in diameter and lengths up to 6 meters. It is suitable for high-pressure applications and harsh environments.

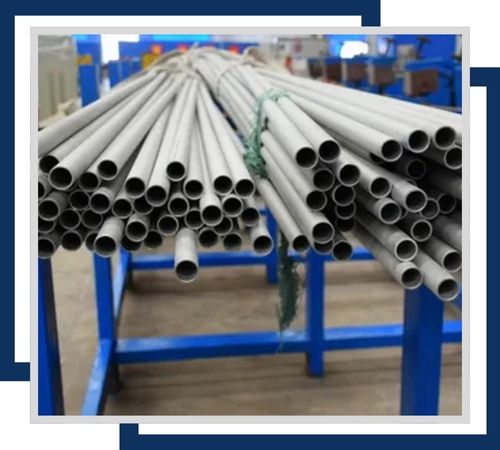

With superior resistance to both oxidation and corrosion, Stainless Steel 409L Boiler Tubes are used in high-pressure steam applications. Sizes typically range from 25mm to 100mm in diameter, with lengths of up to 6 meters. They are essential for maintaining efficiency in boiler systems.

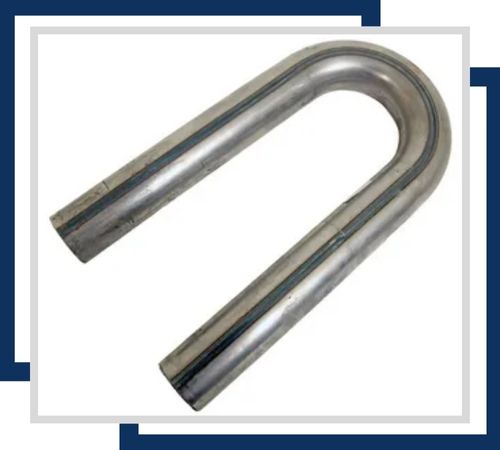

Stainless Steel 409L U-tubes provide excellent resistance to corrosive fluids and are commonly used in heat exchangers. Standard sizes range from 10mm to 100mm in diameter with various lengths. They are designed to handle thermal expansion and contraction in dynamic environments.

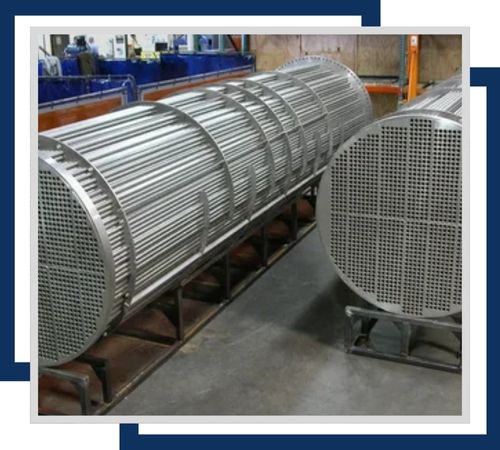

Stainless Steel 409L Condenser Tubes are used in marine and power generation applications, offering exceptional resistance to seawater and acidic environments. Sizes typically range from 10mm to 50mm in diameter and lengths up to 6 meters, providing durability and efficiency.

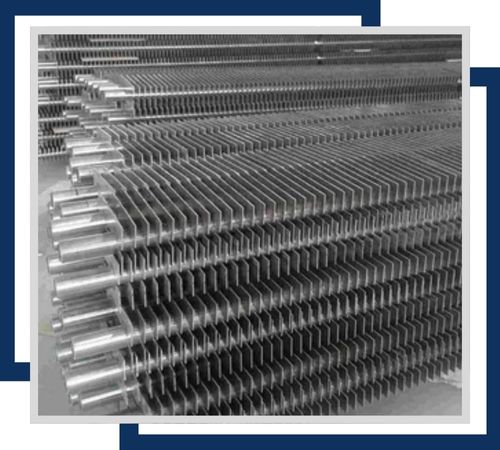

Stainless Steel 409L Fin Tubes are designed for enhanced heat transfer and corrosion resistance in air-cooled heat exchangers. They are available in various diameters, commonly 25mm to 50mm, with fin lengths customizable to specific requirements, ensuring effective cooling in challenging environments.
Stainless steel 409L tubing finds extensive usage in automotive exhaust systems, especially in mufflers, catalytic converters, and heat exchangers, where high-temperature corrosion as well as thermal cycling resistance is required. It is also used in industrial heat treating equipment, HVAC systems, and other applications where cost-effective, corrosion-resistant tubing with the ability to handle high temperatures is needed. The improved weldability and lower risk of sensitization make 409L tubing an excellent choice in fabrication work when durability and long service life are a priority.
