MERIH STAINLESS, based in Istanbul, Turkey, is a reliable manufacturer and supplier of Stainless Steel 416 tubing, delivering top-notch solutions for industries that need corrosion resistance, machinability, and durability. Thanks to cutting-edge production technology and strict quality control, MERIH STAINLESS guarantees that each tube meets international standards for precision, mechanical performance, and reliability. Designed for long-lasting service in tough environments, Stainless Steel 416 tubing offers excellent dimensional stability, machinability, and resistance to moderate corrosive conditions. Available in a variety of sizes and specifications, these tubes are commonly used in the automotive, chemical, industrial machinery, and engineering sectors.
Stainless Steel 416 tubing is a martensitic stainless steel alloy primarily made up of iron, chromium, and carbon, with a touch of sulfur to enhance machinability. It provides moderate corrosion resistance along with impressive tensile strength, hardness, and wear resistance. The alloy can be heat-treated to boost its mechanical properties, resulting in better toughness and fatigue performance. This tubing maintains its dimensional stability and mechanical integrity even under stress, making it perfect for precision components and demanding industrial applications.
| Grade | UNS | BS | BS | EN | EN | Swedish | Japanese |
| – | No. | EN | Name | SS | JIS | ||
| 416 | S41600 | 416S21 | 56AM | 1.4005 | X12CrS13 | 2380 | SUS 416 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 416 | min.max. | -0.15 | -1.25 | -1.00 | -0.060 | 0.15- | 12.0-14.0 | – | – |
| Tempering Temperature (°C) | Tensile Strength(MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
| Annealed * | 517 | 276 | 30 | 262 | – |
| Condition T ** | 758 | 586 | 18 | 248-302 | – |
| 204 | 1340 | 1050 | 11 | 388 | 20 |
| 316 | 1350 | 1060 | 12 | 388 | 22 |
| 427 | 1405 | 1110 | 11 | 401 | # |
| 538 | 1000 | 795 | 13 | 321 | # |
| 593 | 840 | 705 | 19 | 248 | 27 |
| 650 | 750 | 575 | 20 | 223 | 38 |
Contact us to get a quick quote for your requirement.
We ensures the highest quality stainless steel 416 tubing through stringent testing and certification procedures. Each tube undergoes a thorough inspection, including dimensional testing, mechanical property testing and corrosion resistance evaluation. Certificates of compliance with traceability and quality reports are provided to ensure efficiency and reliability.

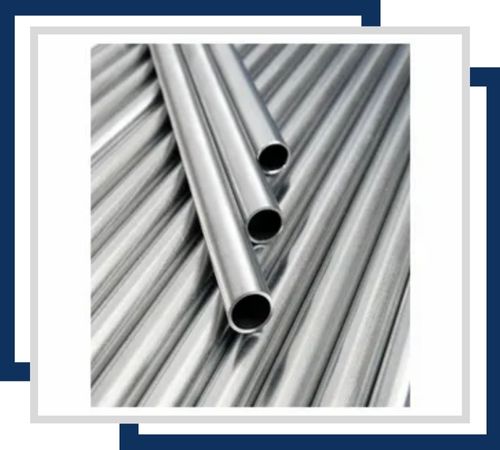

Available in sizes ranging from 0.25″ to 6″ outer diameter, 416 seamless tubing offers excellent corrosion resistance and machinability. Ideal for precision applications where smooth surfaces and dimensional accuracy are critical.
With dimensions typically ranging from 0.5″ to 24″ outer diameter, 416 welded tubing is corrosion-resistant and cost-effective for larger diameter applications. It is suitable for structural and non-critical fluid transfer purposes.

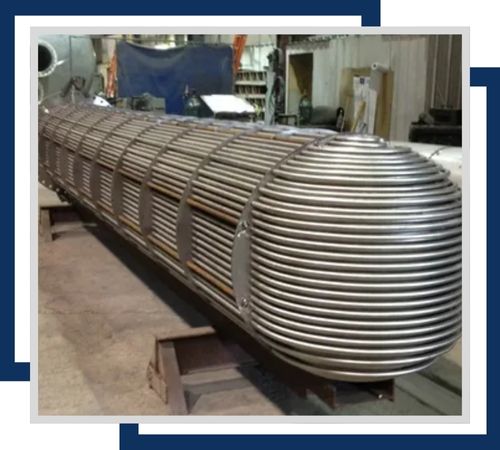

Available in sizes from 0.5″ to 2″ outer diameter, these tubes provide good corrosion resistance and thermal conductivity. They are used in heat exchangers where strength and durability are essential.

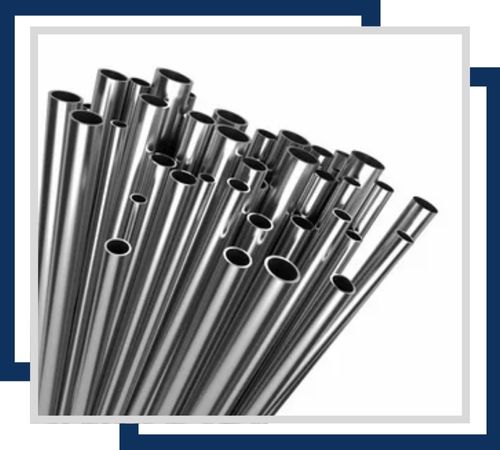

Ranging from 1/8″ to 1″ outer diameter, 416 instrumentation tubing offers excellent corrosion resistance and high strength. It is used in precise control and measurement applications in various industries.

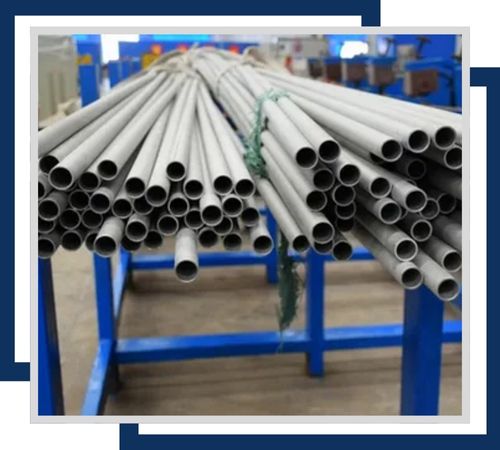

With sizes typically from 0.5″ to 5″ outer diameter, 416 boiler tubes provide excellent corrosion resistance and high-temperature performance. They are designed for use in steam boilers and other high-pressure environments.

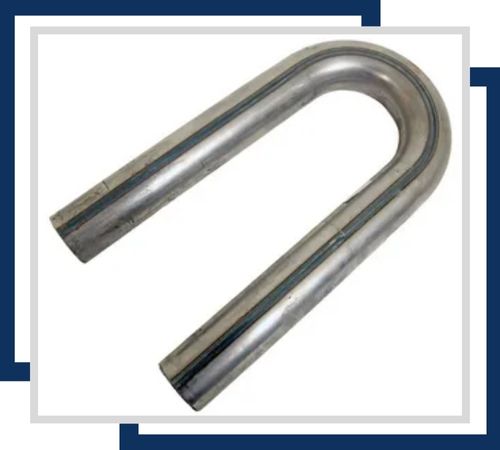

Available in dimensions from 0.5″ to 3″ outer diameter, 416 U-tubes are corrosion-resistant and ideal for heat exchangers where compact design and efficient heat transfer are required. Their U-shape allows for easier installation in tight spaces.

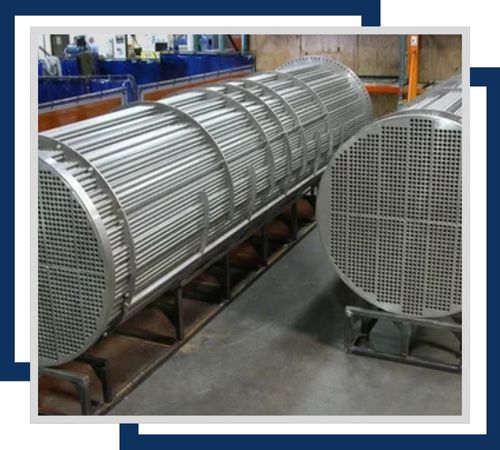

Ranging from 0.5″ to 2″ outer diameter, 416 condenser tubes offer good corrosion resistance and efficient heat transfer. They are used in condensers to cool steam and other fluids in power plants and industrial applications.

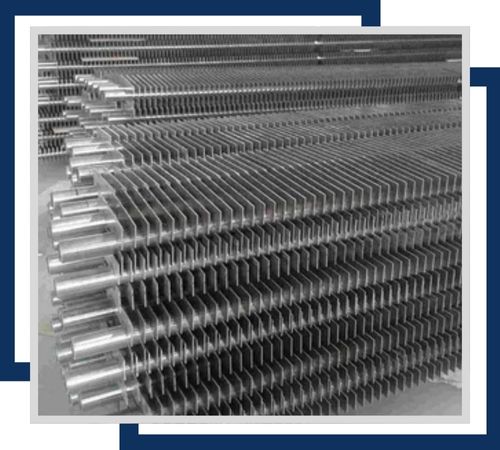

With sizes typically from 0.5″ to 3″ outer diameter, 416 fin tubes provide excellent corrosion resistance and enhanced heat transfer capabilities. They are used in heat exchangers and air coolers where maximizing surface area is critical for efficient operation.
You’ll find Stainless Steel 416 tubing widely utilized in industries that require a blend of corrosion resistance, excellent machinability, and strong mechanical performance. It’s perfect for shafts, fasteners, valve components, pump parts, and precision machinery. Additionally, it’s used in automotive, chemical processing, and industrial equipment where moderate corrosion resistance and ease of fabrication are crucial. The tubing’s durability, machinability, and long service life help minimize maintenance needs and ensure reliable operation. Stainless Steel 416 tubing offers efficient and dependable solutions for essential industrial and engineering applications.
