MERIH STAINLESS, based in Istanbul, Turkey, is a reliable manufacturer and supplier of top-notch Stainless Steel Forged Fittings. Designed for durability, precision, and resistance to corrosion, these fittings ensure dependable and leak-proof connections in piping and industrial systems. MERIH STAINLESS guarantees that each forged fitting adheres to international standards for mechanical strength, dimensional accuracy, and operational reliability. These fittings are widely utilized in the oil and gas, chemical, petrochemical, power generation, and water treatment sectors, offering strong performance, easy installation, and a long service life, even in high-pressure, high-temperature, and chemically aggressive environments.
The Stainless Steel Forged Fittings from MERIH STAINLESS are crafted from high-quality stainless steel alloys that include iron, chromium, nickel, and trace elements to boost corrosion resistance, strength, and toughness. Their mechanical properties feature a tensile strength ranging from 500 to 750 MPa, yield strength between 250 and 500 MPa, and hardness suitable for demanding industrial applications. The precision forging process guarantees exceptional structural integrity, dimensional accuracy, and uniformity. These fittings are designed to resist oxidation, pitting, and chemical attacks, ensuring reliable performance in high-pressure, high-temperature, and corrosive settings.
| Specifications | ASTM A403/ ASME SA403 |
|---|---|
| Size | Seamless Butt Weld Fittings : 1/2″ – 10″ Welded Butt Weld Fittings : 1/2″ – 48″ |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| Stainless Steel Forged Fittings | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.
We ensures that all stainless steel forged fittings undergo rigorous testing to ensure quality, strength and durability. Each product is thoroughly inspected using advanced techniques such as dimensional testing, pressure testing and material analysis. The company offers a full range of certifications, including ASTM, ISO, and other industry standards, assuring reliable and compliant fittings.
Corrosion-resistant and durable, these fittings are ideal for high-pressure applications. They are typically available in sizes ranging from 1/8 inch to 4 inches, with dimensions conforming to ANSI B16.11 standards, ensuring a secure and leak-proof connection.

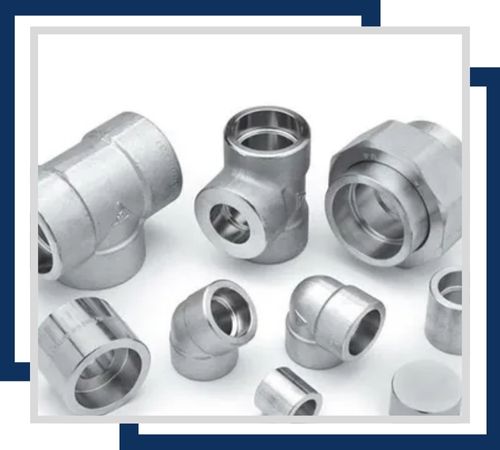

These fittings offer excellent corrosion resistance and are suitable for moderate to high-pressure applications. Sizes range from 1/8 inch to 6 inches. They conform to ASTM A105 or A182 standards, providing reliable connections with threaded ends for easy installation.

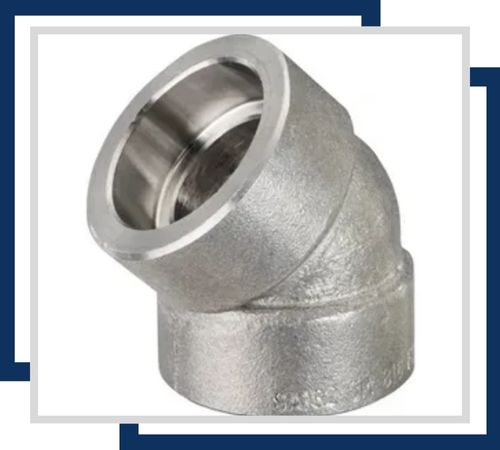

Designed for high-pressure systems, these elbows provide corrosion resistance and are available from 1/2 inch to 4 inches. They are made to ANSI B16.11 specifications, facilitating smooth directional changes in piping systems with minimal pressure loss.

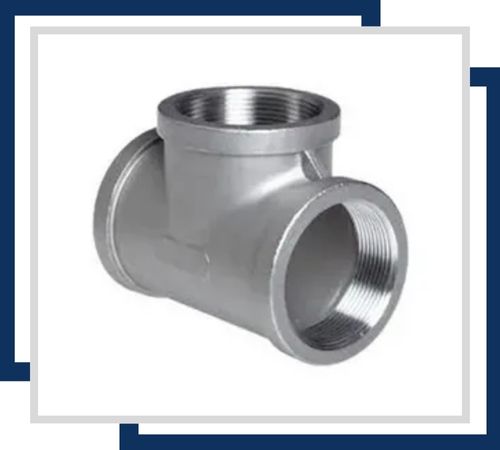

Corrosion-resistant and versatile, threaded tees come from 1/8 inch to 6 inches. They adhere to ASTM standards, enabling the branching of pipes at a 90-degree angle while ensuring a secure and leak-free connection for various piping systems.

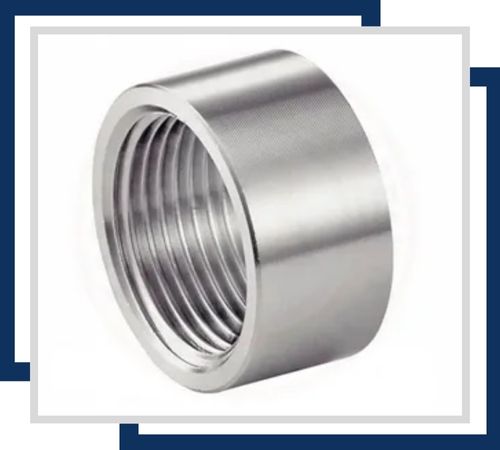

Half couplings are available in sizes from 1/8 inch to 6 inches, offering corrosion resistance and strength. They conform to ASTM A105 or A182 standards and are used to connect pipes or tubes, providing a reliable interface in threaded applications.

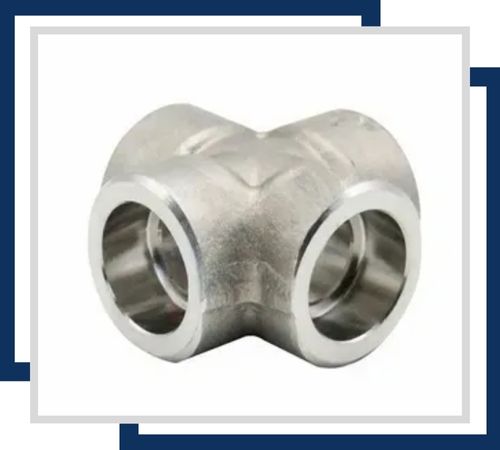

These fittings, resistant to corrosion and high-pressure environments, are available in sizes from 1/2 inch to 4 inches. They meet ANSI B16.11 standards and provide four-way connections, enabling the branching of pipes in multiple directions within a system.
Stainless Steel Forged Fittings are commonly used to connect pipes, valves, pumps, and equipment in both industrial and commercial piping systems. They find applications in oil and gas pipelines, chemical and petrochemical facilities, power generation systems, water treatment plants, and manufacturing machinery. These fittings create leak-proof, strong, and durable joints, which are essential for operational safety and efficiency. Forged fittings are particularly suited for high-pressure, high-temperature, and corrosive environments where reliability is paramount. Engineers and contractors trust these fittings to deliver consistent performance under challenging conditions.
