MERIH STAINLESS, located in Istanbul, Turkey, is a reputable manufacturer and supplier that specializes in top-notch stainless steel products, serving global markets like Dubai, UAE. Known for their precision and durability, the company provides Stainless Steel 310 Fasteners that meet rigorous industrial standards. With a strong commitment to excellence, MERIH STAINLESS guarantees a superior surface finish, precise dimensions, and excellent corrosion resistance, making their fasteners a reliable choice for critical applications. Catering to industries that require strength, heat resistance, and longevity, the products from MERIH STAINLESS showcase advanced engineering and consistent quality, solidifying their reputation as a go-to source for Stainless Steel 310 Fasteners around the world.
Stainless Steel 310 fasteners are made up of 24–26% chromium and 19–22% nickel, which gives them outstanding oxidation and corrosion resistance, especially at high temperatures. This austenitic alloy has a high melting point and retains excellent strength even up to 1100°C, making it perfect for high-heat settings. With a typical tensile strength ranging from 580–750 MPa and a yield strength of 275–410 MPa, these fasteners hold their structural integrity under pressure. The material also boasts good creep resistance, a hardness of about 95 HRB, and remarkable toughness, ensuring long-lasting durability in both industrial and extreme temperature situations.
| Specifications | ASTM F593, F594, F1554 / ASME SF593, F594, F1554 |
|---|---|
| Fasteners size | Bolt / Screw Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Nuts Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Washers Size : M3 – M56 | 3/6″ to 2″ | Custom Sizes Machine Screws Size : M1.6 – M12 Self Tapping Screw Size : No.2 – No. 14 |
| Fasteners Length | 3 mm to 200 mm |
| Fastener Threads | UNF, BSW, BSF, METRIC, UNC or as required |
| Standard of Stainless Steel Fasteners | DIN : DIN 934, DIN 931, DIN 970, DIN 933 UTS : UNEF, NPT, UNC, UNS, UNF, NPTF ISO : JIS standards, ISO 4033, ISO 4032, ANSI – American National Standards Institute ASME B18.5 ANSI B 28.2.4 1M as per defined in ASME B16.5 standard SS Stud Bolt length ANSI B 18.2.4 2M as per defined in ASME B18.2.2 SS Hex nuts |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Surface Coating | Ptfe Coated Stainless Steel Fasteners Phosphate Coating Teflon Coating Zinc Coating Hot Dipped Galvanizing Coating Cadmium Coating Xylon Coating |
| Fasteners Finishing | Stainless steel : Self-Colour, Passivated, Bright Zinc Plated (BZP), Hot Dip Galvanised (HDG), Stainless Steel, Sherardized, some special one like DACROMET Geometry and Mechanically Applied coating ,Dacroment, nickel plated, anodizing, plated zinc-nickel Zinc (blue, black, yellow, white), black oxide. |
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
|
SS 310 |
0.015 max |
2.0 max |
0.15 max |
0.020 max |
0.015 max |
24.00 – 26.00 |
0.10 max |
19.00 – 21.00 |
54.7 min |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310 | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

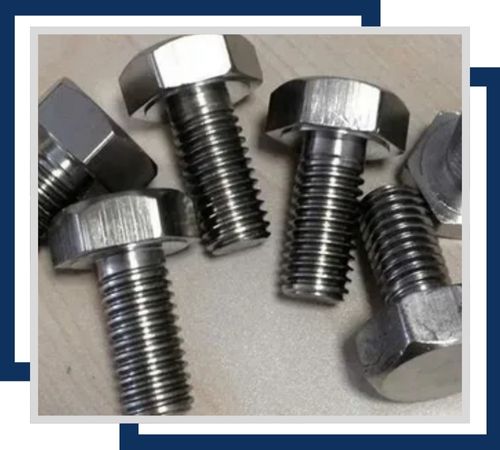

Stainless Steel 310 Bolts offer excellent corrosion resistance in high-temperature environments. Available in various sizes from M3 to M30 and lengths from 10mm to 300mm, they are ideal for structural and high-heat applications.

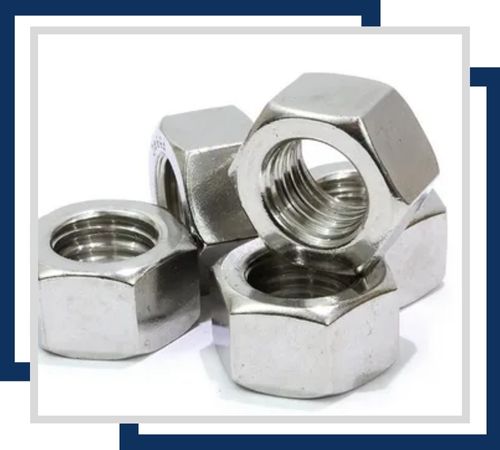

Stainless Steel 310 Nuts provide superior corrosion resistance and high-temperature stability. They come in sizes ranging from M3 to M30, with standard hex dimensions ensuring compatibility with bolts and screws in demanding environments.
Stainless Steel 310 Stud Bolts are known for their exceptional resistance to oxidation and corrosion at elevated temperatures. Typically available in sizes from M6 to M36 and lengths from 20mm to 300mm, they are used in heavy-duty applications.

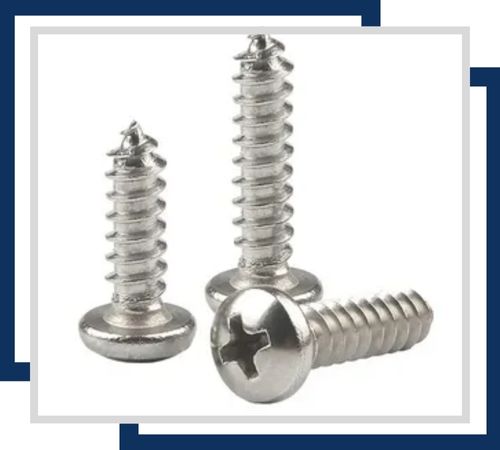

Stainless Steel 310 screws offer outstanding resistance to corrosion and heat. They are available in sizes from M3 to M20 and lengths ranging from 10mm to 200mm, suitable for use in high-temperature and corrosive environments.

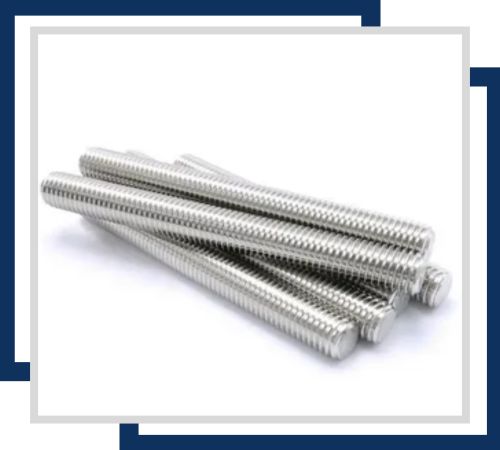

Stainless Steel 310 threaded rods provide excellent durability and resistance to high temperatures and corrosion. They are available in diameters from M6 to M36 and lengths up to 3000mm, making them versatile for various industrial applications.

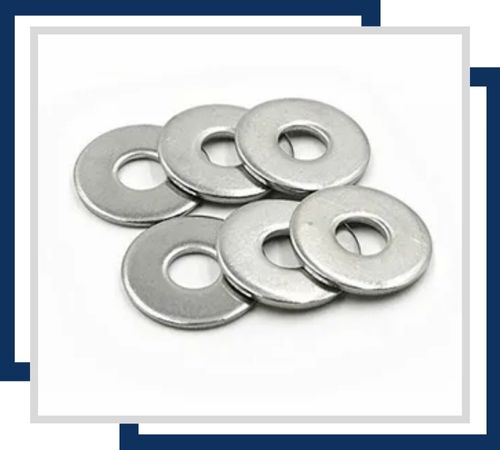

Stainless Steel 310 washers offer superior corrosion and heat resistance, ensuring long-term performance. Sizes range from M3 to M30, with thicknesses typically between 0.5mm and 10mm, suitable for providing stability and load distribution in harsh environments.
We are proud to present a world-class range of SS 310 Fasteners designed to satisfy specific customer size requirements. From the very first step, our commitment to quality is further demonstrated by rigorous end-product testing to industry standards. End-product testing includes 100% radiography, strength tests, macro/micro tests, material analysis, third-party inspections, intergranular corrosion tests, chemical analyses, and positive material identification (PMI). In this way, we assure that our fasteners will be up to the mark in terms of long life, performance, and complete conformity with all industry requirements.
Stainless Steel 310 fasteners find extensive use in high-temperature and corrosive environments, such as furnaces, heat exchangers, and boiler assemblies. They are particularly suited for the chemical, petrochemical, and power generation industries, where stability under thermal stress is essential. Additionally, these fasteners are utilized in automotive exhaust systems, aerospace components, and industrial machinery that require resistance to oxidation and scaling. Their durability and mechanical strength make them ideal for construction projects, high-performance equipment, and applications in the energy sector, where reliability and safety are paramount.
