MERIH STAINLESS, Istanbul, Turkey, is a reliable producer and supplier of high-performance Stainless Steel 316/316L Channels. Renowned for their accuracy in engineering and adherence to global quality standards, MERIH STAINLESS produces corrosion-proof structural profiles for challenging industrial and architectural applications. These channels are produced through sophisticated machinery and rigorous quality control processes to achieve dimensional precision, strength, and durability. With the customer-centric approach and reliable delivery strengths, MERIH STAINLESS is catering to a broad spectrum of industries, such as marine, chemical processing, food manufacturing, and construction, and is therefore a reliable ally in stainless steel structural solutions.
316/316L Stainless Steel Channels are molybdenum-containing austenitic stainless steel channels with higher corrosion resistance, particularly in chloride-containing and seawater environments. Their chemical composition is Chromium (16–18%), Nickel (10–14%), Molybdenum (2–3%), and carbon content of ≤0.08% for 316 and ≤0.03% for 316L. Mechanical properties are a minimum tensile strength of 515 MPa, yield strength of 205 MPa, and elongation of 40%. The lower carbon level in 316L improves weldability and minimizes the risk of intergranular corrosion following welding, suitable for structural purposes where long-term reliability is required.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Contact us to get a quick quote for your requirement.

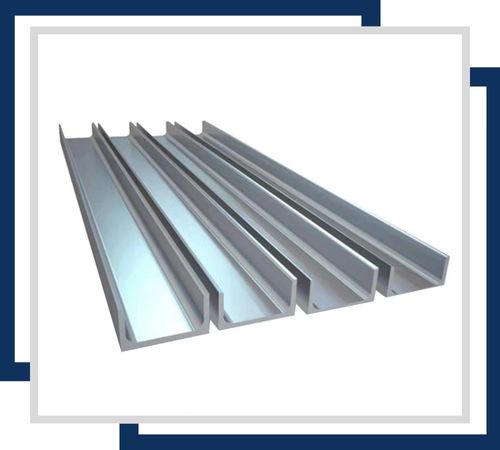

Stainless Steel 316/316L channels are structural elements made from corrosion-resistant stainless steel. They provide high strength and durability, ideal for marine, chemical, and high-temperature applications.

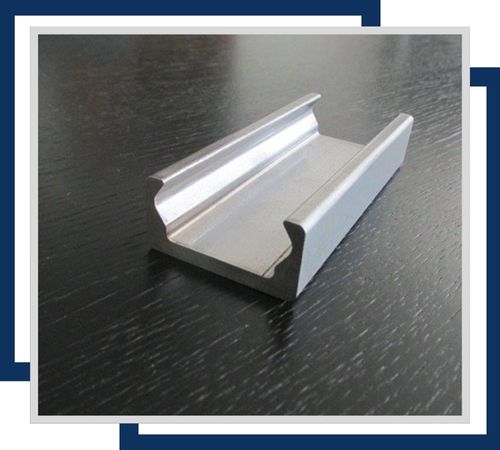

SS 316/316L C channels are stainless steel sections shaped like a “C,” offering high strength and superior corrosion resistance. They are used for support and framing in demanding environments.

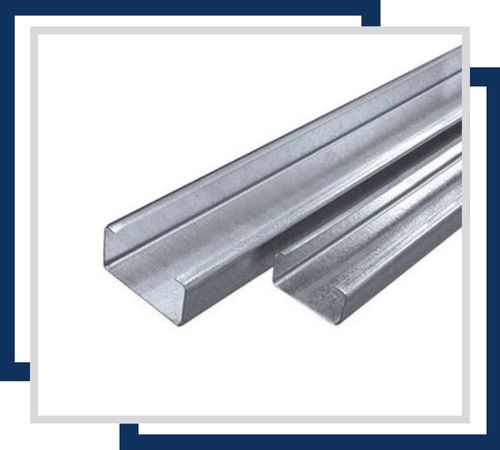

Stainless Steel 316/316L U channels are structural components with a “U” shape, known for excellent strength and corrosion resistance. They are used in marine, chemical, and high-temperature environments for support and reinforcement.

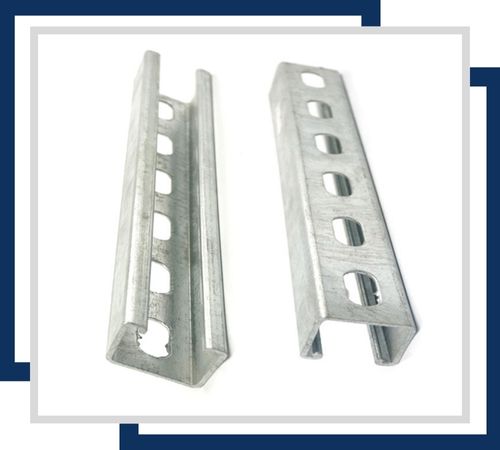

SS 316/316L strut C channels are stainless steel sections with a “C” shape, designed for robust support and framing. They offer high strength, durability, and excellent corrosion resistance for industrial applications.

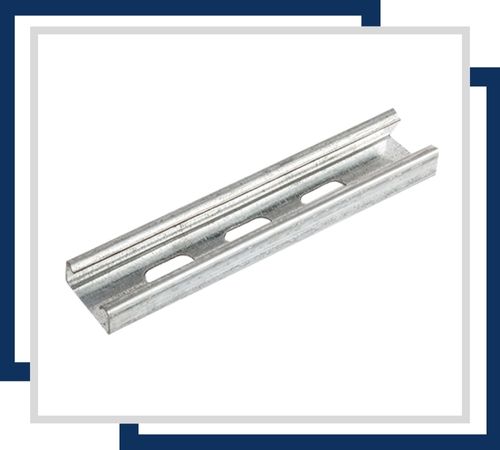

SS 316/316L cold-rolled Unistrut channels are stainless steel channels produced through cold rolling. They offer high strength, excellent corrosion resistance, and are used for versatile support and framing in demanding environments.

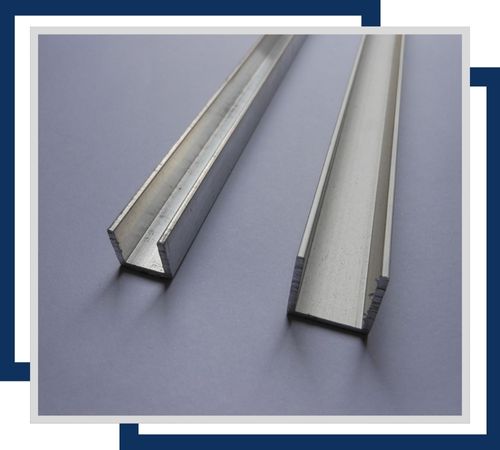

SS 316/316L double C type channels are stainless steel sections with two “C” shapes back-to-back. They provide enhanced strength and stability, suitable for heavy-duty support and structural applications in harsh environments.
Each Stainless Steel 316/316L Channel is carefully packed with the use of best materials for its prevention from undergoing damages upon corrosion whether in processing or during shipping to its destination. Packing the materials as such, we always see to it that our orders reach our customers in the best possible and timely way due to available transport systems and modes. Requisite accompanying documentation all highest will be handed over to customers as soon as delivery is accomplished to make the deal seem smooth and transparent.
316/316L Stainless Steel Channels are extensively used in support and structural applications where strength and resistance to corrode are imperative. These channels are widely utilized in marine environments, chemical plants, pharmaceutical plants, and food-grade buildings because they are pitting and crevice corrosion resistant. They are also utilized in architectural structures, wastewater treatment plants, and seashore construction where saltwater and aggressive chemicals are often encountered. They are appropriate for structural or decorative uses in strongly corrosive or sanitary situations because of their high weldability, strength, and attractive finish.
