Home > Stud Bolts > Stainless Steel 330 Stud Bolts
MERIH STAINLESS, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of high-quality Stainless Steel 330 Stud Bolts. Known for their unwavering dedication to quality, precision, and durability, this company serves a variety of industrial sectors by delivering fasteners that adhere to strict international standards. Their Stainless Steel 330 Stud Bolts are produced using cutting-edge manufacturing techniques, guaranteeing exceptional corrosion resistance, high-temperature endurance, and robust mechanical strength. MERIH STAINLESS blends technical know-how with state-of-the-art production facilities, providing reliable, long-lasting fasteners that excel in even the toughest environments, making them a go-to choice for engineers and industries around the globe.
These Stainless Steel 330 Stud Bolts are primarily made from iron, chromium, nickel, along with trace amounts of copper and silicon, which give them outstanding oxidation resistance. Thanks to their unique alloy composition, they can handle continuous high temperatures of up to 1150°C (2100°F) without losing their structural integrity. On the mechanical side, these bolts boast high tensile strength, impressive hardness, and remarkable fatigue resistance, ensuring they can withstand heavy loads and thermal cycling. Their low carbon content helps reduce carbide precipitation, further boosting their corrosion resistance. This perfect blend of chemical makeup and mechanical properties makes Stainless Steel 330 the ideal choice for extreme industrial environments.
| Material | Specification | Standards | Length | Size |
| 330 Stainless Steel Fasteners | IS BS ASTM | DIN, ISO, JIS, GB, IS, BS, ASTM | 3 mm to 200 mm | M 02 to M 160 |
| Component | Wt. % |
| C | Max 0.08 |
| Cr | 19 |
| Fe | 42 |
| Mn | Max 2 |
| Ni | 36 |
| P | Max 0.04 |
| S | Max 0.03 |
| Si | Max 1.13 |
| Hardness, Brinell | 139 | 139 | Converted from Rockwell B hardness. |
| Hardness, Knoop | 155 | 155 | Converted from Rockwell B hardness. |
| Hardness, Rockwell B | 80 | 80 | |
| Hardness, Vickers | 153 | 153 | Converted from Rockwell B hardness. |
| Tensile Strength, Ultimate | 585 MPa | 84800 psi | |
| Tensile Strength, Yield | 290 MPa | 42100 psi | at 0.2% offset |
| Elongation at Break | 45 % | 45 % | in 50 mm |
| Modulus of Elasticity | 197 GPa | 28600 ksi | at 21°C, 179 GPa at 315°C, 164 GPa at 540°C, 145 GPa at 760°C, 134 GPa at 870°C, 124 GPa at 980°C |
| Charpy Impact | 325 J | 240 ft-lb | Annealed |
Contact us to get a quick quote for your requirement.

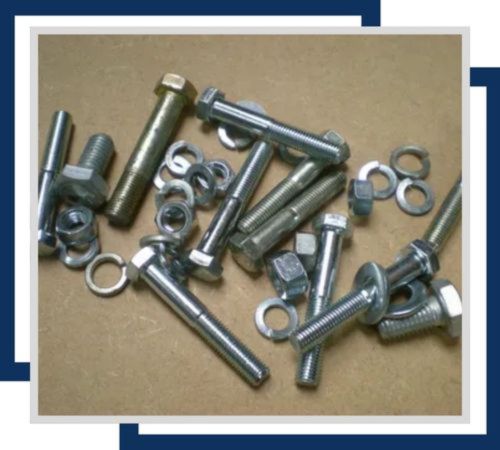

Stainless Steel 330 Stud Anchor Bolts offer superior high-temperature and corrosion resistance. Ideal for heavy-duty applications, they ensure secure anchoring in extreme environments like furnaces, petrochemical plants, and industrial machinery.

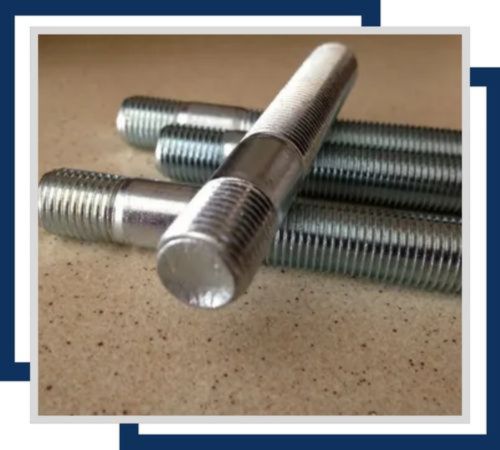

Stainless Steel 330 Stud Exhaust Bolts provide exceptional high-temperature and corrosion resistance, making them ideal for exhaust systems in industrial applications. They ensure durable, reliable fastening in extreme heat environments.

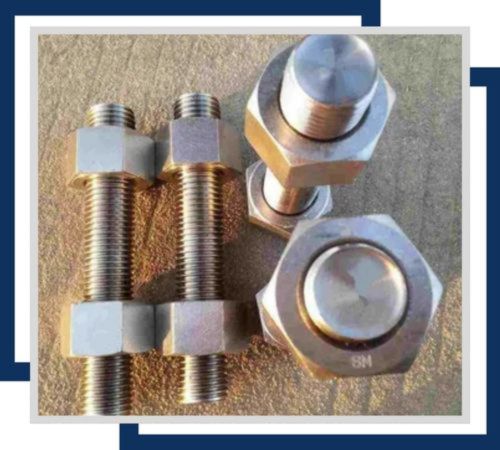

Stainless Steel 330 Hex Stud Bolts offer high-temperature and corrosion resistance, ideal for industrial applications. They ensure reliable, durable fastening in extreme environments such as furnaces and petrochemical facilities.
We have a high-quality assurance of the complete transparency of our Stainless Steel 330 Stud Bolts. The orders come along with some documents, like a commercial invoice, a packing list, a fumigation certificate, a heat treatment chart, and a NABL-approved lab test report. Material Test Certificates per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third-Party Inspection Certificates are provided by us. We arrange all of our documentation completely for maximum client satisfaction.
Stainless Steel 330 Stud Bolts find their place in industries that demand high-temperature performance and corrosion resistance. They’re commonly used in power plants, chemical processing, petrochemical, and oil and gas sectors for assembling boilers, heat exchangers, furnaces, and pressure vessels. These bolts are also perfect for high-temperature piping systems, turbines, and industrial machinery that face extreme thermal conditions. Their ability to endure heavy stress and resist oxidation makes them essential for critical structural applications. MERIH STAINLESS guarantees that these stud bolts meet the highest standards for performance and reliability.
