Home > Stud Bolts > Stainless Steel 409 Stud Bolts
MERIH STAINLESS is a Turkey-based company, with its head office located in Istanbul, that manufactures and supplies top-notch stainless steel fasteners, including Stainless Steel 409 Stud Bolts. The organization is famous for its ability to make long-lasting, affordable solutions for challenging industrial use. With technology-driven manufacturing, rigorous quality control, and dedication to customer satisfaction, MERIH STAINLESS produces fasteners to international standards. Operating in a diverse range of industries worldwide, the company has earned a solid reputation for reliability, accuracy, and prompt delivery, establishing it as a valued source for stainless steel stud bolts and fastening systems.

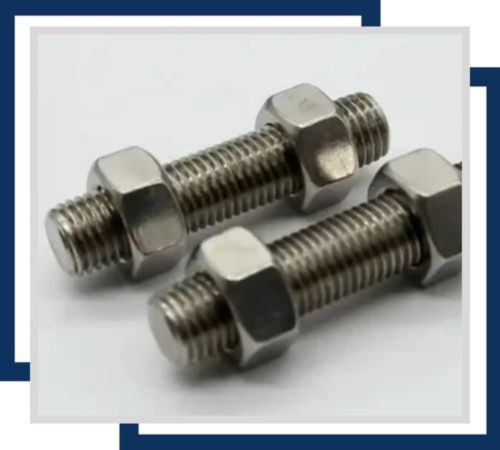

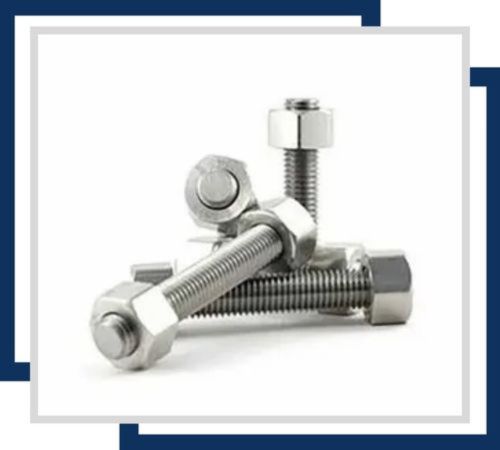

Stainless Steel 409 Stud Bolts consist of a ferritic stainless steel alloy containing 10.5–11.75% chromium, with a low carbon content (up to 0.08%) and small traces of titanium or niobium for stabilization. They have fair corrosion resistance, good oxidation resistance, and excellent weldability. Mechanical properties involve tensile strength of approximately 380–450 MPa, yield strength of about 170–275 MPa, and fair ductility. The alloy has structural integrity in mildly corrosive conditions and at high temperatures, and it is therefore acceptable for light-duty, high-heat services.
Material | Specification | Standards | Size | Length |
Stainless Steel 409 Stud Bolt | ASTM, ASME and API | ASTM B 193 / ASME SB 193 | M02 to M30 | 3 mm To 200 mm |
|
Element |
Content |
|---|---|
|
Carbon |
0.08 max |
|
Manganese |
1.00 max |
|
Phosphorus, max |
0.045 max |
|
Sulfur, max |
0.045 max |
|
Silicon |
1.00 max |
|
Nickel |
0.5 |
|
Chromium |
11.75 |
|
Molybdenum |
– |
| Tensile Strength/Ultimate Tensile Stress (UTS) – (Mpa) | 450 |
| Yield Strength/Proof Stress(0.2% Offset) (YS) – (Mpa) | 240 |
| Elongation in 4D (El) | 25% min |
| Reduction | – |
Contact us to get a quick quote for your requirement.

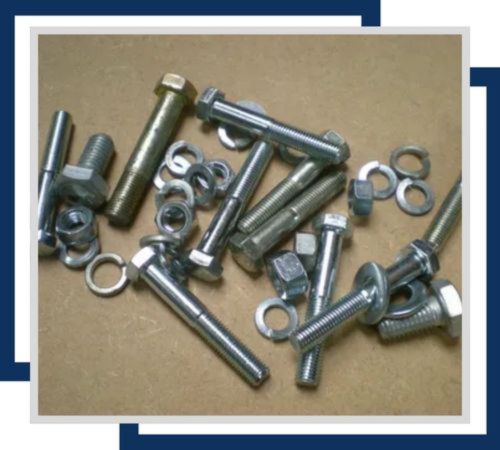

Stainless Steel 409 Flange Stud Bolts are designed for robust performance in high-temperature and corrosive environments. Their flange design ensures secure, stable connections, making them ideal for automotive and industrial uses.

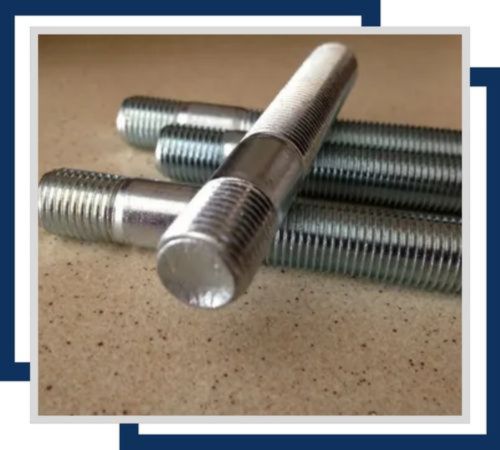

Stainless Steel 409 Tap End Stud Bolts are engineered for durability and strength in high-temperature applications. Their tap end design provides secure threading and reliable performance in demanding automotive and industrial settings.

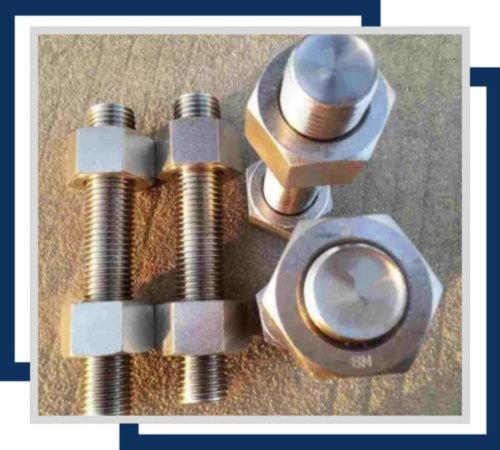

Stainless Steel 409 Double End Stud Bolts feature threaded ends for versatile applications, offering exceptional strength and corrosion resistance. Ideal for high-temperature environments, they ensure reliable, durable performance in automotive and industrial settings.
We ensure 100% transparency for our Stainless Steel 409 Stud Bolts with quality assurance measures. We provide all the orders with critical documents, which include a commercial invoice, packing list, fumigation certificate, heat treatment chart, and a NABL-certified lab test report. We also give a Material Test Certificate as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third-Party Inspection Certificate. Our well-structured documentation process is mainly aimed at achieving client satisfaction at the highest possible level.
Stainless Steel 409 Stud Bolts find extensive application in exhaust systems for motor vehicles, heat shields, mufflers, and catalytic converters because of their satisfactory heat and oxidation resistance. They can also be employed to fasten components in furnaces, ducting, and thermal processing equipment. These bolts are widely applied in automotive, HVAC, power generation, and general fabrication industries where moderate corrosion resistance, heat stability, and economy are critical. They are a convenient option for bolting in moderately stressful applications due to their strength, formability, and heat resistance balance.
