Home > Stud Bolts > Stainless Steel 416 Stud Bolts
MERIH STAINLESS, Istanbul, Turkey, is a world-class producer and supplier of stainless steel fasteners, with top-quality products such as Stainless Steel 416 Stud Bolts. The company is known for precision processing, punctual delivery, and conformance to international quality standards. MERIH STAINLESS supplies a variety of industries, such as the automotive, aerospace, and general engineering sectors. Their sophisticated production equipment and stringent inspection protocols guarantee the supply of uniform, high-quality parts. With a commitment to customer satisfaction and technical assistance, MERIH STAINLESS has established a solid reputation as a reliable supplier within domestic markets as well as overseas.

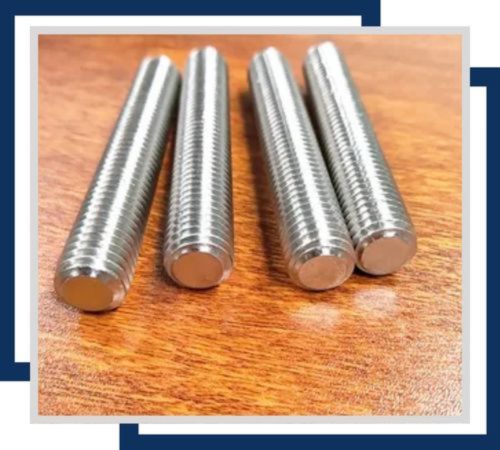

Stainless Steel 416 Stud Bolts are produced from free-machining martensitic stainless steel alloy containing nominally 0.15% carbon, 12–14% chromium, and sulfur to promote machinability. This alloy provides moderate corrosion resistance and fine machinability—the finest of all stainless steels. Upon heat treatment, 416 can attain tensile strengths of 700–850 MPa and yield strength of approximately 450–600 MPa with a Rockwell hardness of up to 40 HRC. Although not for very corrosive environments, 416 is the best choice for any application demanding good strength, fair corrosion resistance, and excellent machinability.
| Material | Specification | Standards | Length | Size |
| 416 Stainless Steel Stud Bolts | IS BS ASTM | DIN, ISO, JIS, GB, IS, BS, ASTM | 3 mm to 200 mm | M 02 to M 160 |
| Component | Wt. % |
| C | Max 0.15 |
| Cr | 13 |
| Fe | 84 |
| Mn | Max 1.25 |
| Mo | Max 0.6 |
| P | Max 0.06 |
| S | Max 0.15 |
| Si | Max 1 |
| Mechanical Properties | Metric | English | Comments |
| Hardness, Rockwell B | 82 | 82 | |
| Tensile Strength, Ultimate | 515 MPa | 74700 psi | |
| Tensile Strength, Yield | 275 MPa | 39900 psi | at 0.2% offset |
| Elongation at Break | 30 % | 30 % | in 50 mm |
| Modulus of Elasticity | 200 GPa | 29000 ksi | |
| Shear Modulus | 83 GPa | 12000 ksi |
Contact us to get a quick quote for your requirement.

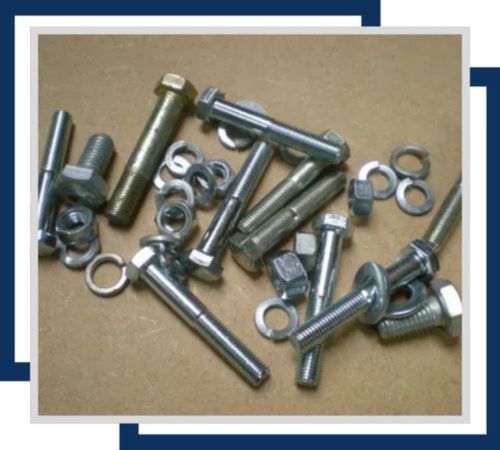

Stainless Steel 416 Anchor Stud Bolts provide robust, corrosion-resistant anchoring solutions for structural applications. Designed for high strength and durability, they ensure reliable fixation in demanding environments and heavy-duty settings.

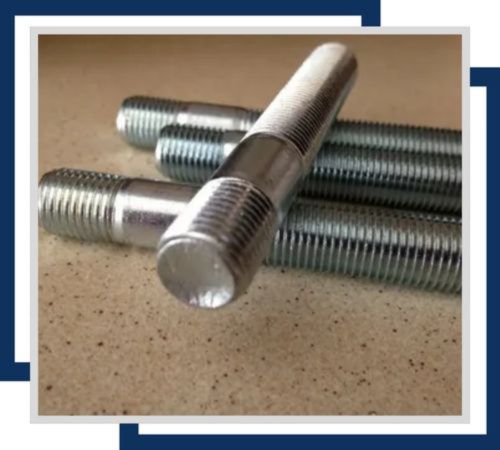

Stainless Steel UNS S41600 Stud Bolts are engineered for superior strength and corrosion resistance. Ideal for high-stress applications, these bolts ensure durable, reliable connections in challenging industrial and structural environments.

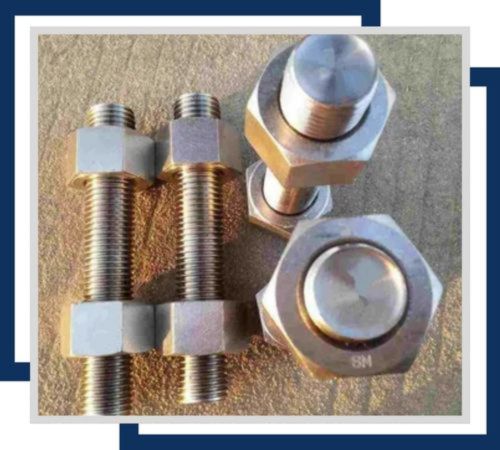

Stainless Steel 416 Flush Head Stud Bolts offer a sleek, low-profile design while delivering exceptional strength and corrosion resistance. Ideal for applications requiring a flush surface and reliable, high-strength fastening.
Every Stainless Steel 416 Stud Bolt is packaged on the best quality material that protects them against damages due to rusting and tearing during transit. The deliveries to our clients come on time and we are committed to the project to deliver dependable and speedy delivery services. All the necessary documents related to products are to be delivered along with the delivery for customer satisfaction.
Stainless Steel 416 Stud Bolts are applied in uses where machining at high speeds, strength, and dimensional stability are critical. Some of these uses include parts used in the automotive industry, pumps, valves, screw machines, and other industrial assemblies. They are widely preferred in mass production since they are readily machined, especially in processes where precision and efficiency are important. Though not suitable for marine or chemical process atmospheres, 416 stud bolts excel in dry, non-corrosive or lightly corrosive environments. The fact that they can be heat treated to different levels of hardness also makes them fit for wear-intensive mechanical fastening use.
