Merih Stainless, an Istanbul, Turkey-based manufacturer and supplier of high-quality stainless steel products such as Stainless Steel 17-4 PH Plates and Sheets, is renowned for its emphasis on accuracy and quality. Merih Stainless supplies high-performance and long-lasting materials that exceed global standards. The company utilizes the most modern manufacturing technologies and has rigorous quality control procedures in place to deliver sheets and plates capable of handling challenging industrial environments. Merih Stainless 17-4 PH Sheets and Plates of Stainless Steel find extensive applications in all industries and provide superior strength, corrosion resistance, and reliability for demanding applications globally.
Stainless Steel 17-4 PH Sheets and Plates consist of chromium (15–17.5%), nickel (3–5%), and copper (3–5%), with the addition of niobium for precipitation hardening. This alloy provides a compromise between high strength and average corrosion resistance, with tensile properties of up to 1100 MPa and yield strengths of approximately 1000 MPa following heat treatment. It has mechanical properties over a wide range of temperatures and environments, with good toughness and stability of dimensions. The alloy also has very good weldability and machinability and is thus very flexible in the various fabrication techniques.
| Grade | C | Mn | Si | P | S | Cr | Mo |
| SS 17-4PH | 0.07 max | 1.0 max | 1.0 max | .07 max | .03 max | 17.5 – 15.0 | .05 |
| Grade | Ultimate Tensile Strength, psi | Yield Strength, psi | Elongation | Rockwell Hardness |
| SS 17-4PH | 160,000 | 145,000 | 5% | C35 |
Contact us to get a quick quote for your requirement.

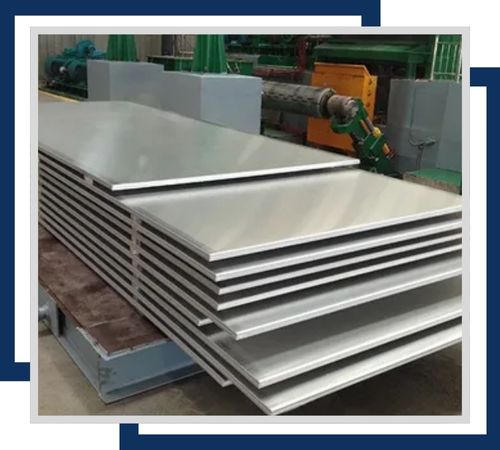

Stainless Steel 17-4 PH Hot Rolled Sheets and Plates is available in any size. Sizing usually takes place between 3mm-150mm thick. The characteristics of the SS 17-4 PH are that they show excellent strength with high hardness in them, making their application possible under heavy wear resistance application.

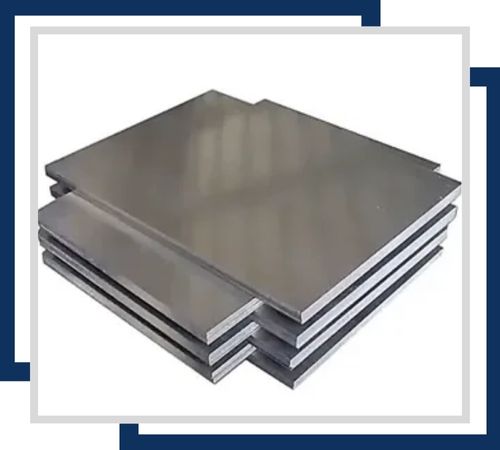

Stainless Steel 17-4 PH Cold Rolled Sheets are available in 0.3mm to 6mm in thickness and up to 1500mm in width with a smooth surface finish. These sheets have improved mechanical properties and dimensional accuracy, thus suitable for precision components. It retains good corrosion resistance, suitable for aerospace and pharmaceutical industries.

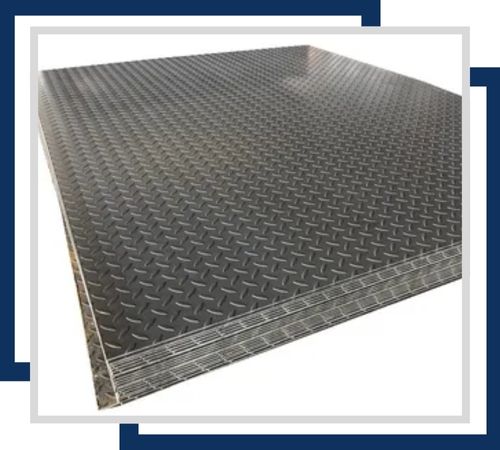

Stainless Steel 17-4 PH Chequered Plates are offered in thickness between 3mm and 12mm with sizes up to 2500mm x 1250mm. Patterns give this chequered plate a slip resistance surface, making it aptly suited for industrial floors and stair treads. Corrosion resistance is excellent due to this alloy and ensures that durable service in harsh conditions will be possible.

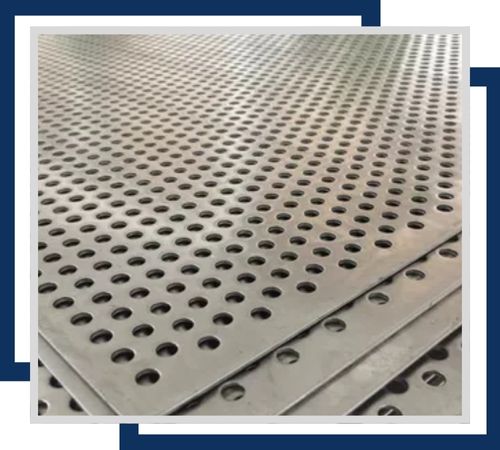

Stainless Steel 17-4 PH Perforated Plates are available in a range of thicknesses from 1mm to 10mm and various hole sizes and patterns. The perforated design of these plates is used for filtration, ventilation, and decorative applications. They maintain high strength and corrosion resistance, making them suitable for marine and chemical processing industries.

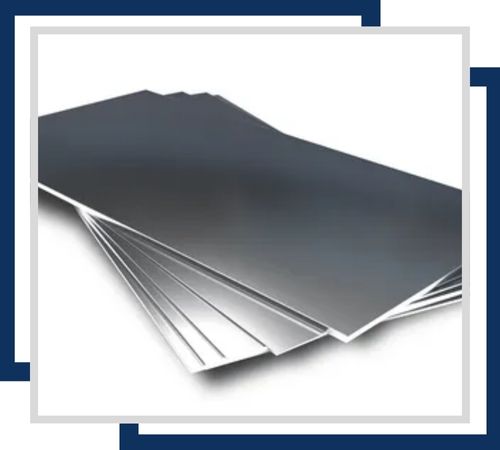

Stainless Steel 17-4 PH Shim Sheets are precision thin sheets ranging from 0.1mm to 5mm in thickness and available in various dimensions. These sheets are used for precise alignment and spacing in machinery and equipment. They offer excellent corrosion resistance and durability in challenging environments.

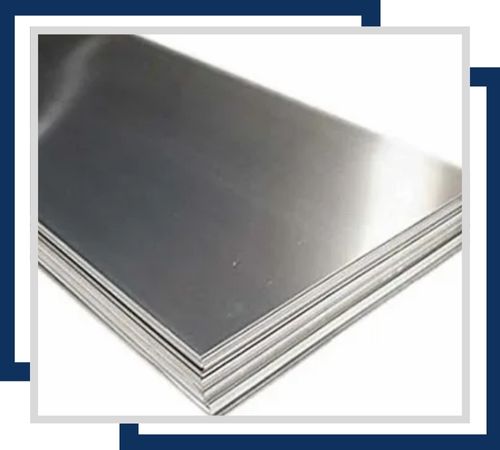

Stainless Steel 17-4 PH Polished Plates are made in the following thicknesses, from 1mm up to 8mm, and size up to 2500mm x 1250mm. The plates possess a reflective surface finish. Such plates are used for architectural and decorative purposes where the aesthetic value is important and where corrosion resistance is required. The plates offer high strength and durability under outdoor and corrosive conditions.
Merih Stainless provides a seamless experience to the customers by offering all documents for the high-quality Stainless Steel 17-4 PH Sheets and Plates. We provide necessary documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports in order to establish authenticity and quality of the product. All the Stainless Steel 17-4 PH Sheets and Plates have numerous test certificates that include MTC as per EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates to ensure our dedication to customer satisfaction and continuous pursuit of product excellence.
Stainless Steel 17-4 PH Sheets and Plates find extensive use in applications demanding high mechanical strength and resistance to corrosion. They are used in aerospace, chemical processing, petrochemical, marine, and nuclear industries. They are well suited for the production of pressure vessels, structural parts, shafts, and turbine components. Their resistance to stress corrosion cracking and ability to retain strength under cyclic loading makes them suitable for applications demanding high criticality and safety concerns. In addition, the formability of the alloy and its heat-treatability promote various engineering and fabrication applications.
