MERIH STAINLESS, located in Istanbul, Turkey, stands out as a top manufacturer and supplier of premium stainless steel products, including Stainless Steel 440B Sheets and Plates. Known for its dedication to precision, durability, and customer satisfaction, MERIH STAINLESS meets a variety of industrial needs with dependable and corrosion-resistant solutions. The company skillfully blends advanced production methods with rigorous quality control, ensuring that each sheet and plate adheres to international standards. With a global clientele, MERIH STAINLESS has built a reputation as a reliable partner in providing high-quality 440B stainless steel materials for applications that demand strength, hardness, and long-lasting performance in challenging environments.
Stainless Steel 440B Sheets and Plates are martensitic stainless steels characterized by a high carbon content of about 0.75–0.95%, along with 16–18% chromium and small amounts of manganese, silicon, and molybdenum. This unique composition grants them impressive hardness, wear resistance, and moderate corrosion resistance. Their mechanical properties boast tensile strength reaching 700–800 MPa, yield strength around 450–500 MPa, and hardness levels of 50–55 HRC after appropriate heat treatment. These sheets and plates can be hardened through quenching and tempering, making them perfect for applications that require exceptional durability, precise machining, and a long service life under stress.
| Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Plates Thickness | 0.3 mm to 120 mm |
| Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Finish | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Profiling | Plasma Plate Cutting, Laser Plate Cutting, Oxy-propane Flame Cutting |
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 440B | 0.6 -0.75 | 1.00 max | 1.00 max | 0.04 max | 0.030 max | 16.00 -18.00 | – |
| Tempering Temperature (°C) | Tensile Strengtd (MPa) | Yield Strengtd 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Rockwell (HR C) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed* | 758 | 448 | 14 | 269HB max | – |
| 204 | 2030 | 1900 | 4 | 59 | 9 |
| 260 | 1960 | 1830 | 4 | 57 | 9 |
| 316 | 1860 | 1740 | 4 | 56 | 9 |
| 371 | 1790 | 1660 | 4 | 56 | 9 |
Contact us to get a quick quote for your requirement.

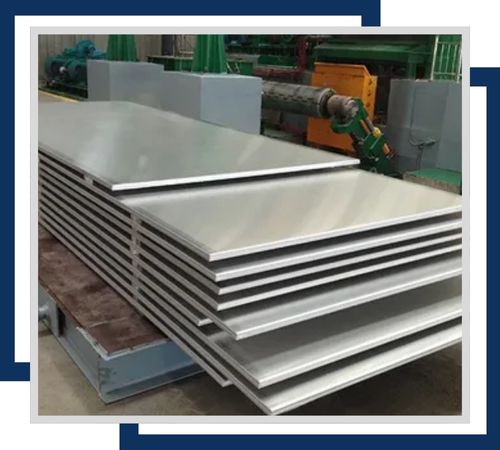

The excellent corrosion resistance provided by Stainless Steel 440B Hot Rolled Sheets ensures that it can be delivered in sizes between 3mm up to 150mm thickness, and in up to 2500mm width, for use where high strength and resistance to wear is required.

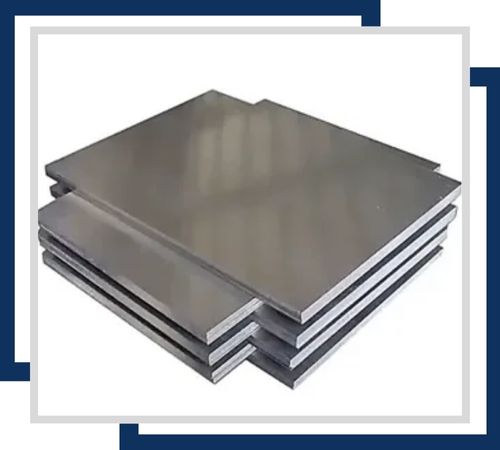

Cold-rolled stainless steel plates 440B have excellent corrosion resistance and a bright finish. These plates are available in a thickness range of 0.3mm to 6mm and widths up to 2000mm, which makes them ideal for precision applications that require tight tolerances.

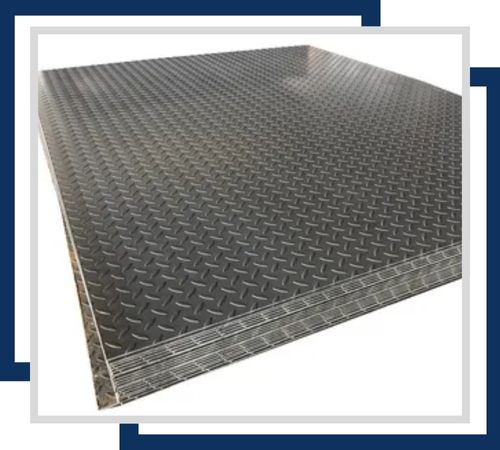

Stainless Steel 440B Chequered Plates, with raised patterns for improved grip, are resistant to corrosion. The thicknesses available are 1.5mm to 10mm, and the widths go up to 1500mm, which is perfect for flooring and stair treads.

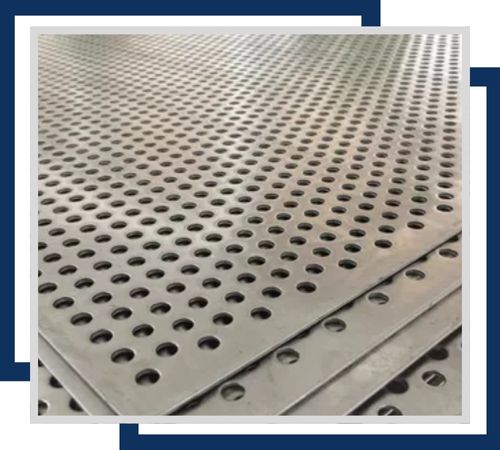

The perforated sheets are made from Stainless Steel 440B, providing corrosion resistance and ventilation. Generally available in a thickness range of 0.5mm to 3mm, and sheet sizes up to 2000mm x 4000mm, the perforated sheets are used for filtration, architectural, and decorative applications.

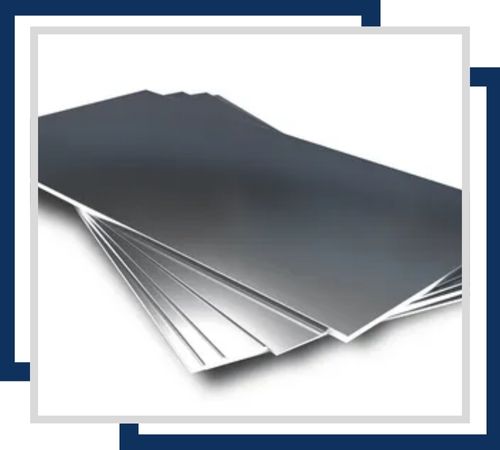

Stainless Steel 440B Shim Sheets are corrosion resistant and find applications in fine adjustment of machines and tools. The sheets have a thickness ranging from 0.05mm to 3mm and come in standard sizes such as 1000mm x 2000mm.

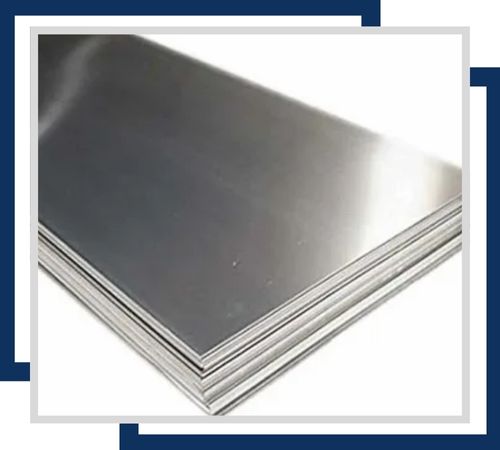

The 440B Polished Plates of Stainless Steel offer corrosion resistance along with an excellent aesthetic appeal, and are offered in a variety of thicknesses between 1mm and 50mm and widths up to 2000mm, especially for decorative and architectural applications.
Stainless Steel 440B Sheets and Plates find extensive use in applications that demand high wear resistance and moderate corrosion resistance. They are commonly utilized in industrial blades, cutting tools, surgical instruments, valve components, and bearings. Additionally, they play a crucial role in manufacturing precision engineering parts, automotive components, and high-strength mechanical parts where durability and hardness are essential. Thanks to their ability to maintain sharp edges and resist deformation under heavy loads, 440B sheets and plates are favored in industries like aerospace, medical, tooling, and machinery manufacturing, providing long-lasting performance.
Stainless Steel 440B Sheets and Plates are applied where strength along with resistance to wear is very much in demand. Some common applications are for manufacturing blades, cutting tools, surgical instruments because of the exceptional hardness along with edge retention. Industrial machinery, automobile parts, valves are other application areas because they need the presence of a great deal of strength along with corrosion resistance. They are used in aerospace as well as defence applications where there is a demand for making components which need high performance at extreme conditions.
