Merih Stainless, Istanbul, Turkey is a prime manufacturer and supplier of high-quality stainless steel products, such as Stainless Steel 17-7 PH Sheets and Plates. Known for its precision and strength, Merih Stainless offers solutions that are specially designed to suit the requirements of different industrial sectors. The company uses sophisticated manufacturing methods and strict quality control to make sure its products conform to international standards. Merih Stainless Stainless Steel 17-7 PH Sheets and Plates are engineered to provide exceptional strength, corrosion resistance, and long-lasting performance, which makes them ideal for applications that are challenging both domestically and internationally.
Stainless Steel 17-7 PH Sheets and Plates of Merih Stainless contain nearly 17% chromium and 7% nickel with minute quantities of aluminum that allow precipitation hardening. This alloy has high tensile strength of up to 1300 MPa following heat treatment along with superior fatigue resistance and corrosion resistance. The material is stable and mechanically sound throughout a broad temperature range. Its good formability and toughness make it suitable for fabrication into intricate shapes without loss of accuracy and tensile strength.
| Element | Content (%) |
|---|---|
| Chromium, Cr | 16-18 |
| Nickel, Ni | 6.50 – 7.75 |
| Manganese, Mn | 1 max |
| Silicon, Si | 1 max |
| Aluminum, Al | 0.75 – 1.50 |
| Carbon, C | 0.09 max |
| Phosphorous, P | 0.040 max |
| Sulfur, S | 0.030 max |
| Iron, Fe | Balance |
| Property | 17-7PH ≤ 0.010 inch thick | 17-7PH > 0.010 inch thick |
|---|---|---|
| Yield Strength, min. (ksi) | 65 | 55 |
| Tensile Strength, min. (ksi) | 150 | 150 |
| Elongation, min. (%) | – | 20 |
| Hardness, max. (Rb) | – | 92 |
Contact us to get a quick quote for your requirement.

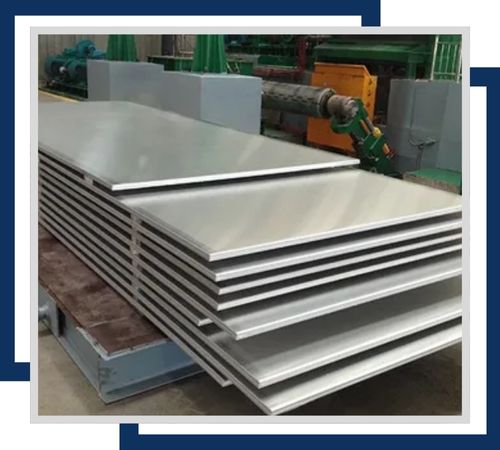

Stainless Steel 17-7 PH Hot Rolled Plates are characterized by excellent strength and hardness. Available in a range of sizes and thicknesses from 3mm to 120mm, the plates have good corrosion resistance and can be used under high-stress conditions.

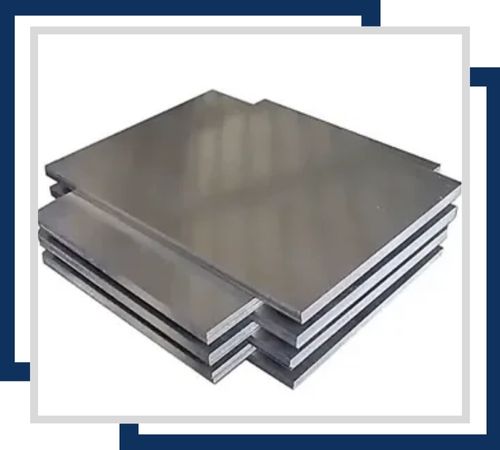

Stainless Steel 17-7 PH Cold Rolled Sheets have a very smooth surface finish and high precision. These sheets are available in a range of thickness from 0.2mm to 6mm. The sheets possess excellent corrosion resistance and are useful for applications that require tight tolerances.

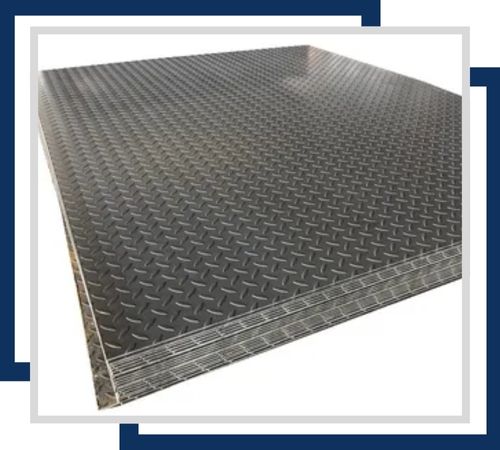

Stainless steel 17-7 PH chequered plates have a raised pattern that increases the grip and safety. It is commercially available from 2mm to 12mm in thicknesses. It is applied in flooring and other anti-skid applications. Their good corrosion resistance suits them well for both industrial and marine environments.

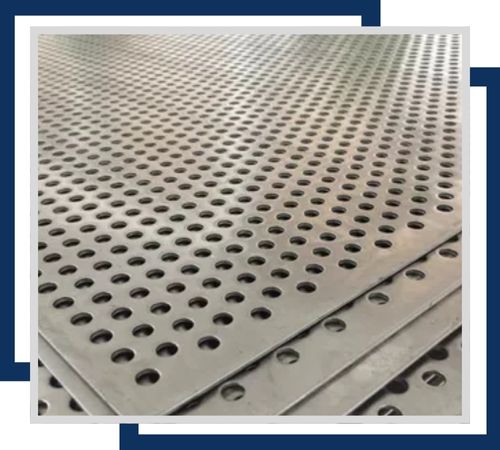

The Stainless Steel 17-7 PH Perforated Sheets have many hole sizes and patterns for various filtration and ventilation applications. They are typically in the thickness of 0.3mm to 3mm. Corrosion resistance allows these sheets to be long-lasting in all uses.

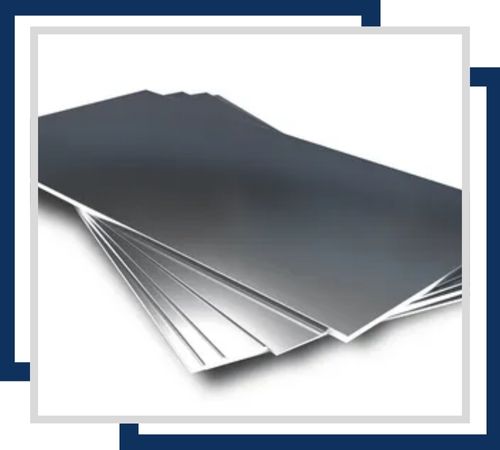

Stainless Steel 17-7 PH Shim Sheet is a thin, precision-cut sheet for spacing and alignment in machinery. It is available in 0.05mm to 3mm thicknesses, giving excellent corrosion resistance. Its sheets ensure reliable performance in very demanding mechanical environments.

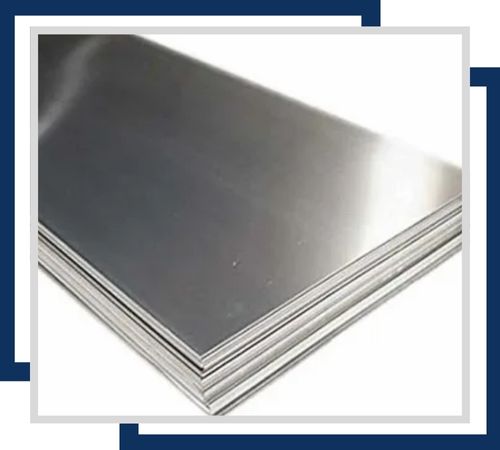

Stainless Steel 17-7 PH Polished Plates have a bright polish finish. They come in thickness from 3mm up to 100mm. These plates exhibit strong corrosion resistance. They are good for decorative and sanitary applications.
Merih Stainless is committed to providing a great customer experience by offering full documentation for its high-quality Stainless Steel 17-7 PH Sheets and Plates. We provide important documents like commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports to prove authenticity and give strength to our superior quality. Moreover, our Stainless Steel 17-7 PH Sheets and Plates are provided with many test certificates like MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These records assuredly ensure our customer satisfaction and constant product excellence.
Stainless Steel 17-7 PH Plates and Sheets have extensive applications in industries that need high strength, corrosion resistance, and ruggedness. They are typically used in aerospace parts, equipment in chemical processing, petrochemical facilities, and marine use. They are also utilized for spring manufacturing, structural components, and high-stress mechanical parts. Their cyclic loading resistance and corrosion resistance in aggressive environments make them especially effective in critical engineering applications where performance and reliability are crucial.
