MERIH STAINLESS, located in Istanbul, Turkey, is a well-respected manufacturer and supplier of top-notch stainless steel products. Their Stainless Steel 317L Sheets and Plates are crafted for outstanding performance in tough, corrosive environments. With meticulous engineering and compliance with international standards, these sheets and plates boast remarkable resistance to pitting, crevice corrosion, and oxidation. Thanks to their consistent dimensions, smooth finish, and enhanced durability, MERIH STAINLESS guarantees that their products can handle the demanding needs of chemical, marine, and industrial applications, providing reliable and long-lasting performance where strength and corrosion resistance are essential.
Stainless Steel 317L Sheets and Plates are primarily made up of iron, chromium, nickel, and molybdenum, featuring low carbon content to reduce carbide precipitation. The low carbon (“L”) designation improves weldability and lowers the chances of intergranular corrosion. Mechanically, these sheets and plates deliver high tensile and yield strength, along with good ductility and toughness, all while maintaining excellent formability. Their corrosion resistance, particularly against chlorides and acidic environments, makes them perfect for fabrication, welding, and industrial applications that require both structural integrity and chemical resistance over extended periods.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | 8.0 g/cm3 |
|---|---|
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |
Contact us to get a quick quote for your requirement.

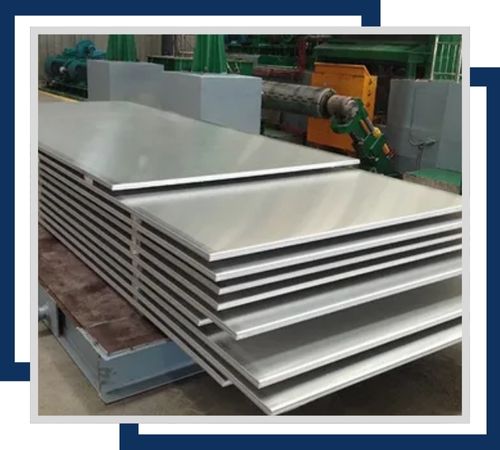

High resistance to corrosion by chlorides and acids available as sheets and plates from a thickness of 3mm to 100mm in width to 2 meters. The hot-rolled product allows heavy usage because it produces a tough and durable finish.

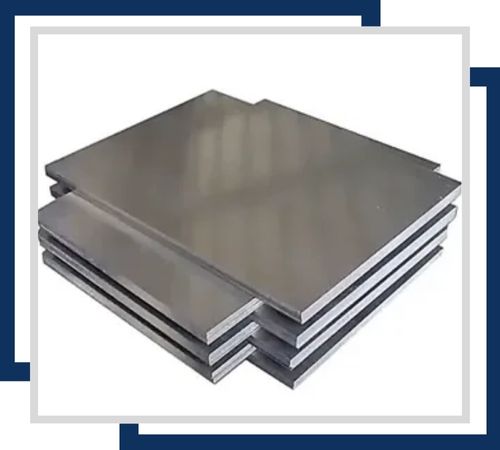

With high corrosion resistance, the cold rolling provides cold rolled sheets and plates that range in thickness from 0.3mm to 6mm, with widths reaching up to 1.5 meters. In the case of cold rolling, it leaves the surface very smooth and precise for aesthetic and high-precision uses.

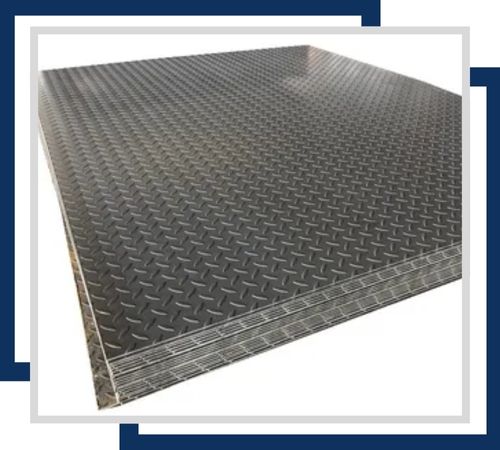

They have been designed with the patterned surface for superior friction and slip resistance. Chequered sheets and plates provide superior resistance to corrosion. These products are available from 1.5mm up to 6mm thickness in custom sizes as per application requirements.

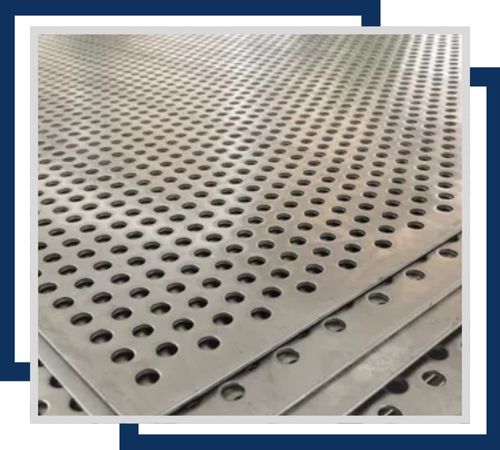

These sheets and plates are superior in corrosion resistance and perforated holes for ventilation, filtering, and aesthetic purposes. Common sizes range from 0.5mm to 6mm thick, and custom hole patterns and diameter sizes are offered according to several industrial and architectural needs.

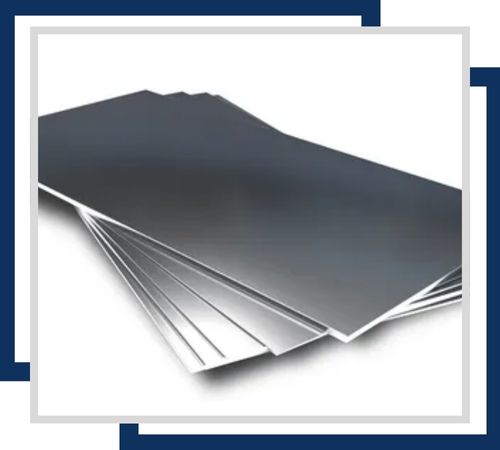

Shim sheets and plates are highly resistant to corrosion and are used for precise spacing and alignment. They are thin gauges usually from 0.1mm to 3mm thick, but may be customized in dimensions according to the particular mechanical and industrial application.

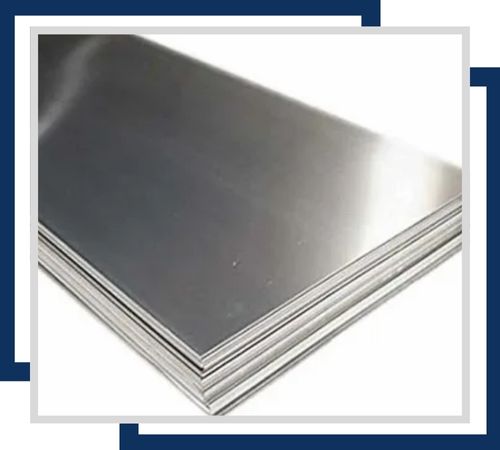

They come with great corrosion resistance as well as the option of polishing to a mirror finish for aesthetic use, suitable in decorative or high-visibility applications. The sheets and plates range in thickness from 0.5mm to 12mm.
We, at Merih Stainless, ensure a completely hassle-free experience to our customer while providing documentation with our premium range of Stainless Steel 317L Sheets and Plates . Our pack consists of the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. The quality and authenticity of our product get authenticated due to these documents, which then brings trust and confidence in the mind of our client. We also provide test certificate for our Stainless Steel 317L Sheets and Plates, like an MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates indicate our relentless pursuit of client satisfaction and our quest for excellence in the quality of the product.
Stainless Steel 317L Sheets and Plates find extensive use in industries that require high corrosion resistance and durability. They are perfect for chemical processing equipment, pharmaceutical machinery, marine gear, and petrochemical facilities. These sheets and plates are also suitable for heat exchangers, storage tanks, pressure vessels, piping systems, and food processing units, where hygiene, reliability, and safety are crucial. The low carbon grade ensures exceptional performance in welded structures. MERIH STAINLESS 317L sheets and plates offer long-term operational reliability, making them a go-to choice for demanding applications.
