MERIH STAINLESS, based in Istanbul, Turkey, stands out as a reliable manufacturer and supplier of top-notch stainless steel products. Their Stainless Steel 305 Sheets and Plates are designed to offer outstanding corrosion resistance, durability, and formability, making them perfect for moderate-temperature industrial applications. Crafted to meet international standards, these sheets and plates boast precise dimensions, a smooth surface finish, and dependable mechanical performance. Whether for the chemical, food processing, architectural, or general engineering sectors, MERIH STAINLESS 305 sheets and plates promise long-lasting, maintenance-free service. They’re ideal for fabrication, forming, and welding, providing robust and efficient solutions for both industrial and commercial needs.
Stainless Steel 305 Sheets and Plates are mainly made up of iron, chromium, and nickel, with a carefully controlled carbon content that enhances corrosion resistance and mechanical stability. They showcase high tensile and yield strength, good ductility, and excellent formability, making them perfect for fabrication and welding tasks. This alloy is known for its superior resistance to oxidation, mild corrosion, and scaling at moderate temperatures. These mechanical and chemical properties ensure that 305 sheets and plates maintain their structural integrity, dimensional accuracy, and durability across a range of industrial, architectural, and commercial applications.
| Element | 305 |
| Carbon | 0.12 |
| Chromium | 17.0-19.0 |
| Nickel | 10.5-13.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Property | 305 |
| Yield Strength, min. (ksi) | 25 |
| Tensile Strength, min. (ksi) | 70 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 88 |
Contact us to get a quick quote for your requirement.

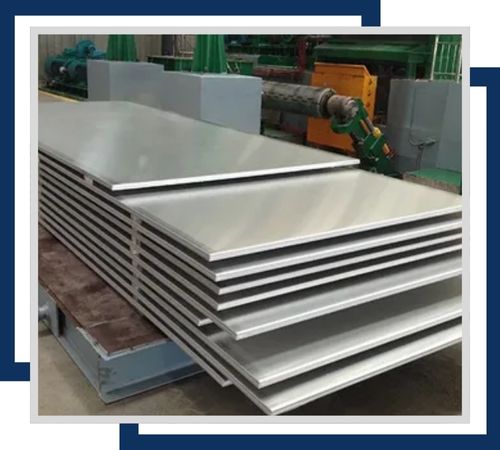

The 305 stainless steel in hot rolled sheets is corrosion-resistant, strong, and versatile. These sheets are usually available in various thicknesses between 1.5mm and 25mm and up to 2000mm in width. Ideally, they find applications in heavy-duty sectors and structural elements.

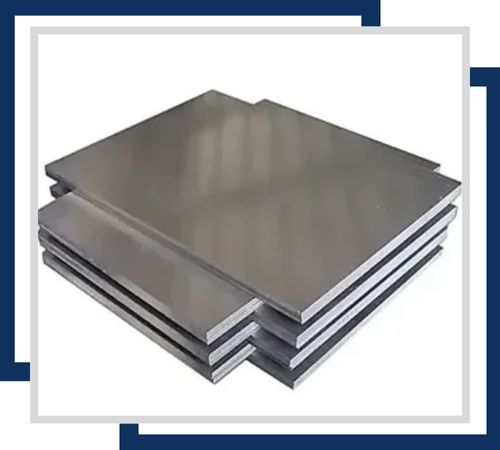

These cold-rolled plates have excellent corrosion resistance and a smooth, polished surface. They are available in thicknesses from 0.3mm to 3mm and widths up to 1500mm and are widely used in automotive, kitchen, and architectural applications.

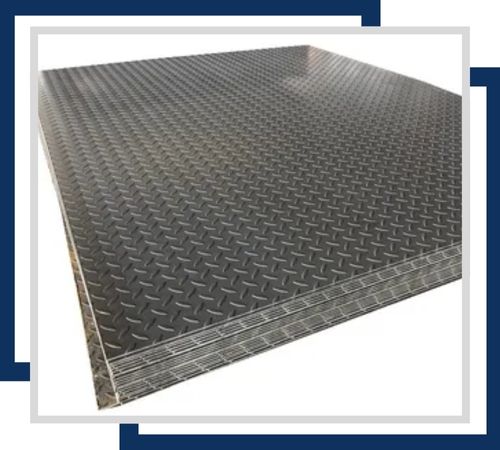

Stainless Steel 305 chequered plates are surface patterned with slip resistance; they have a good corrosion-resistant property. It is available in 2mm to 10mm thickness and 1250mm width for use in flooring and stair treads.

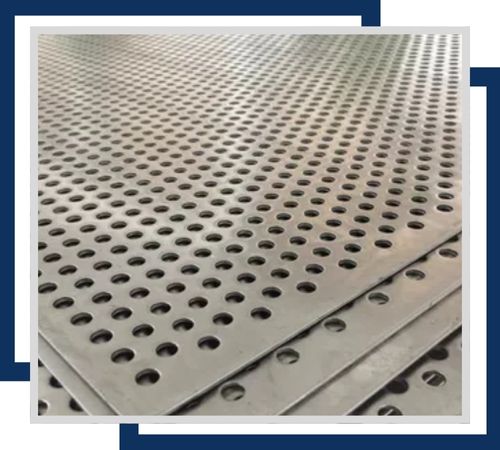

The perforated stainless steel 305 sheets have been specially designed to exhibit excellent corrosion resistance, having holes for ventilation and aesthetic purposes. They usually vary in sizes ranging from 0.5mm to 6mm thickness. The sheet may be ordered as per required dimension and hole pattern.

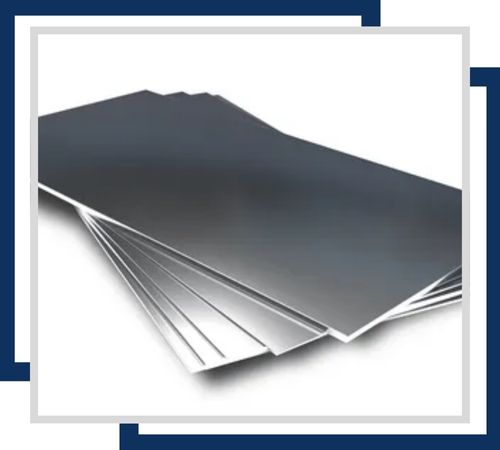

Used for precise spacing and levelling, these shim sheets provide superior corrosion resistance. These are available in thicknesses ranging from 0.1mm to 3mm and in various dimensions and are ideal for mechanical and structural applications where exact tolerances are required.

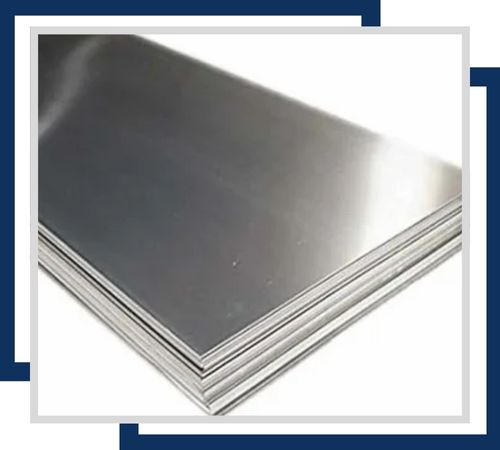

Known for their excellent corrosion resistance and aesthetic appeal, polished plates come in thickness from 0.5mm up to 50mm and up to 2000mm width. They are mainly used for decorative and high-visibility applications where a desired high-gloss finish is achieved.
Merih Stainless promises superior customer satisfaction supplemented by thorough documentations of Stainless Steel 305 Sheets and Plates. The documentations that our company offers contain the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. All the documents authenticate products for superiority qualities and thereby are helpful in attaining the utmost trust from all valued customers. We also provide Stainless Steel 305 Sheets and Plates along with various test certificates, which include MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our commitment to continuous product excellence.
Stainless Steel 305 Sheets and Plates find their place in various industries that demand materials that are corrosion-resistant, durable, and easy to fabricate. They’re particularly well-suited for chemical processing equipment, machinery in the food and beverage sector, architectural panels, kitchen equipment, and general engineering components. These sheets and plates are also ideal for piping systems, storage tanks, structural supports, and fabricated industrial components that are exposed to moderate temperatures and mildly corrosive environments. MERIH STAINLESS 305 products are designed to meet the diverse needs of these applications, ensuring reliability and performance.
