MERIH STAINLESS is an Istanbul, Turkey-based reputable producer and distributor of premium Stainless Steel 301 Sheets and Plates. With a particular focus on material performance and customer satisfaction, MERIH STAINLESS provides precision-engineered flat products optimized to fulfill the requirements of rigorous industrial usage. Renowned for their responsiveness, technological prowess, and adherence to global standards, the company caters to customers in automotive, aerospace, and structural industries. MERIH STAINLESS Sheets and Plates of Stainless Steel 301 are praised for their fine strength, formability, and corrosion resistance, hence an ideal solution for lightweight and high-performance applications.
Austenitic chromium-nickel Stainless Steel 301 Sheets and Plates are specifically developed for providing high strength along with good corrosion resistance. The general composition is Chromium (16–18%), Nickel (6–8%), and Carbon up to 0.15%. It is non-hardenable by heat treatment but can have high tensile and yield strength through cold working. The mechanical properties are minimum tensile strength of 520 MPa, yield strength of 205 MPa, and elongation of 40%, depending on the temper. The alloy remains ductile but provides enhanced hardness upon cold rolling, thus being suitable for use in applications that demand both strength and flexibility.
| Item | Stainless Steel 301 sheet(Hot rolled, cold rolled) | |
| Thickness | 0.3~10.0mm | |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |
| Surface | the surface and finish of stainless steel 301 sheet: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Brand: | Indian Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Thailand Origin, Taiwan Origin | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. |
|
Element |
Percent by Weight |
|
|
Type 301 ANN |
||
|
Carbon |
0.150 maximum |
|
|
Manganese |
2.000 maximum |
|
|
Phosphorus |
0.045 maximum |
|
|
Sulfur |
0.030 maximum |
|
|
Silicon |
1.00 maximum |
|
|
Chromium |
16.00 – 18.00 |
|
|
Nickel |
6.000 – 8.000 |
|
|
Nitrogen |
0.10 maximum |
Contact us to get a quick quote for your requirement.

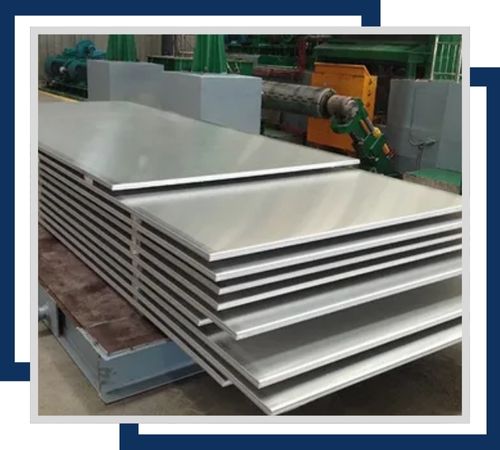

The sheets have moderate corrosion resistance, produced by high temperature rolling. They are typically available from thickness ranging from 3mm to 12mm with widths up to 2000mm and are applicable for structural applications requiring good toughness.

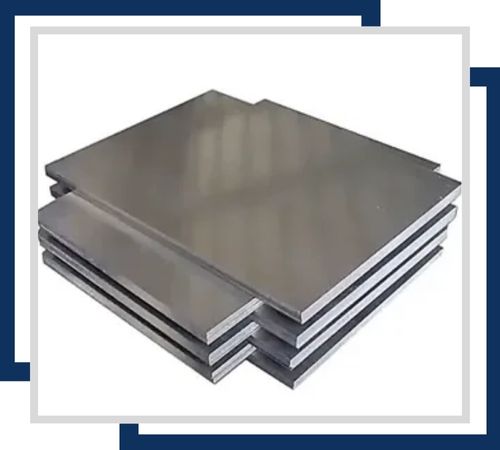

The superior corrosion resistance is provided by cold rolled plates, which are processed at room temperature, thus offering a smooth surface and precise thickness. The common dimensions are from 0.5mm to 6mm in thickness and widths up to 1500mm. They are suitable for high-precision applications.

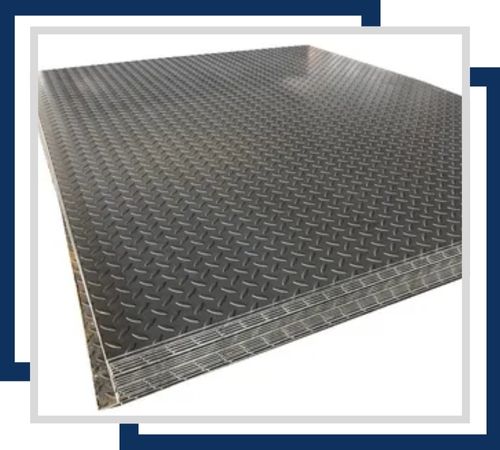

These plates come with a textured surface to have grip and last longer. They come in a thickness range that is between 1.5mm and 5mm and sizes that are standard are 1000mm x 2000mm. It is suitable for flooring and anti-slip application.

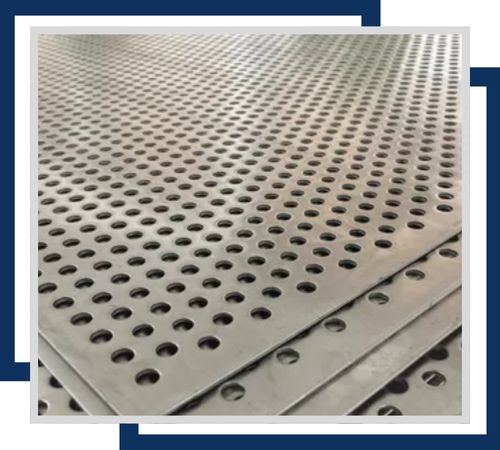

With good corrosion resistance, perforated sheets feature holes punched in various patterns, enhancing aesthetics and ventilation. Sizes usually range from 0.8mm to 3mm in thickness and can be customized up to 1500mm widths and used for filtration and decorative purposes.

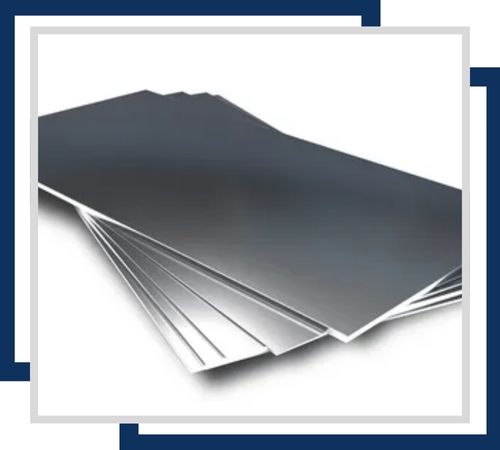

Thin sheets with excellent corrosion resistance, often used to fill gaps or adjust clearances in machinery. These are available from 0.1mm up to 1mm in thickness and in standard sizes of 1000mm x 2000mm. Useful for precision alignment.

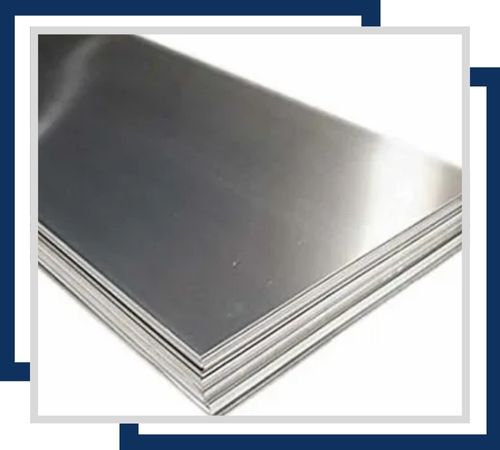

Polished plates are excellent for aesthetic applications and offer high corrosion resistance with a high gloss finish. Common thicknesses range from 1mm to 10mm, and sizes typically run to 1500mm x 3000mm. They are also used in architectural and decorative projects.
Merih Stainless is devoted to providing excellent customer experience accompanied with complete documentation of our excellent-quality Stainless Steel 301 Sheets and Plates. We provide such critical documents such as a commercial invoice, a packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. This set of documentation works to further endorse the legitimacy and high-grade of our product in the hands of our esteemed clients. On top of this, we provide the different test certificates – MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate – for Stainless Steel 301 Sheets and Plates. All these test certificates would reflect our whole focus on customer-focused practices and will go on striving for excellence in product quality.
Stainless Steel 301 Plates and Sheets are extensively utilized in high-strength, lightweight, and good corrosion-resistant applications. They find widespread application in the automobile industry for use in trims, structural reinforcements, and parts. They are applied in aerospace applications where there is a need for superior fatigue strength and lower weight. 301 is additionally applied in railway cars, household appliances, industrial enclosures, and building facades. Its resistance to maintaining mechanical strength under stress and being easily formed and welded makes it perfect for components subject to dynamic loads or severe fabrication procedures.
