MERIH STAINLESS, Istanbul, Turkey, is a well-established producer and supplier of high-quality stainless steel items like **Stainless Steel 436 Sheets and Plates**. MERIH STAINLESS is renowned for technical know-how, product consistency, and punctual delivery and caters to vast industries like automobile, kitchen appliances, heat exchanger production, and industrial fabrications. With advanced production units and rigorous compliance with international quality standards, the company provides repetitive product performance and customer satisfaction. Their competence to supply both standard and custom size makes MERIH STAINLESS an ideal source of stainless steel sheet and plate solutions.
**Stainless Steel 436 Sheets and Plates** are produced from a ferritic stainless steel alloy having about 16–18% chromium and 0.75–1.25% molybdenum. Adding molybdenum enhances corrosion resistance—especially in chloride-bearing environments—over the normal 430 stainless steel. 436 has good thermal conductivity and oxidation resistance, in addition to superior resistance to stress corrosion cracking. 436 is not heat treatable hardenable, but mechanical properties consist of a tensile strength of approximately 415–585 MPa and yield strength of about 275 MPa. It also provides good formability, thus ideal for deep-drawing and forming operations.
| Specifications | ASTM A240, ASME SA240 |
| Standard | JIS, ASTM, AISI, GB, EN, DIN |
| Surface | 2B, BA, HL, No. 4, Mirror etc. |
| Finish | Cold rolled, Hot rolled |
| Thickness | 0.3mm–100mm |
| Size | 1000mm, 1219mm, 1250mm, 1500mm, 1524mm, 2000mm |
| Grade | Fe | Cr | Ni | Mo | Mn | Nb | Si | Ti | Ta | C | P | S |
| SS 436 | 81.3 | 16 | – | 1 | 1 | 0.5 | – | – | 0.5 | 0.12 | 0.040 | 0.030 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| 0.28 lbs/in3 7.74 g/cm3 | 2600 – 2750 ° F (1427 – 1510 °C) | 77 KSI min (531 MPa min) | 53 KSI min (365 MPa min) | 40 % | Rb 89 max |
Contact us to get a quick quote for your requirement.

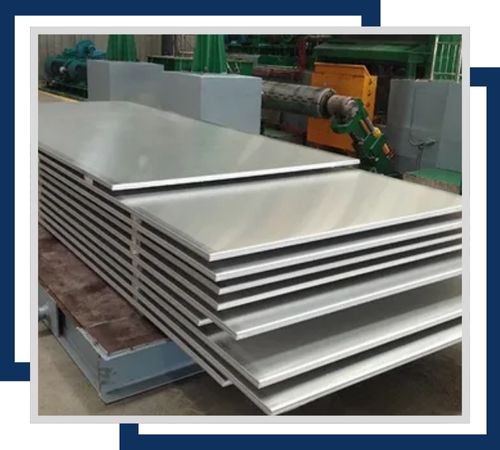

The alloy 436 stainless steel hot-rolled sheets possess excellent resistance to corrosion under conditions of high stress. Normally available in a form whose thickness runs from 3 mm up to 25 mm and width up to 2000 mm, this sheet is used in fabrication and construction.

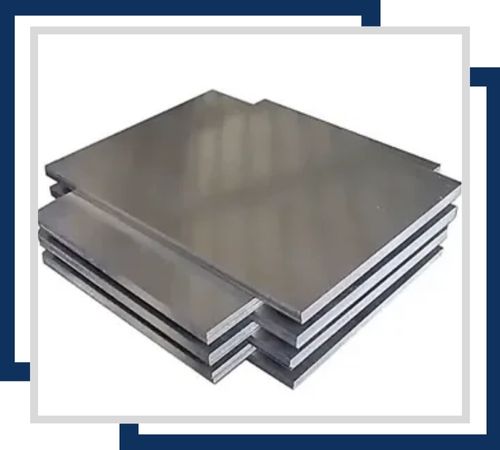

Stainless Steel 436 Cold Rolled Plates offer excellent resistance to corrosion as well as an excellent surface finish. Available in thicknesses of 0.5 mm-6 mm, and widths of up to 1500mm, these plates are perfect for applications that are precise and aesthetically designed.

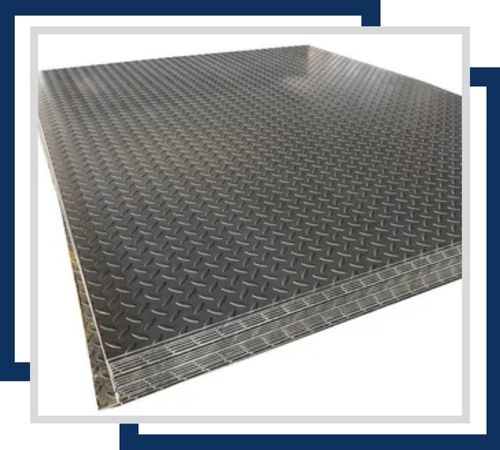

Stainless Steel 436 Chequered Sheets provide good corrosion resistance along with an anti-slip surface. The sheets are available in 1 mm to 6 mm thickness and in standard sizes up to 2000 mm x 1000 mm. Stainless Steel 436 Chequered Sheets are often used in flooring and safety applications.

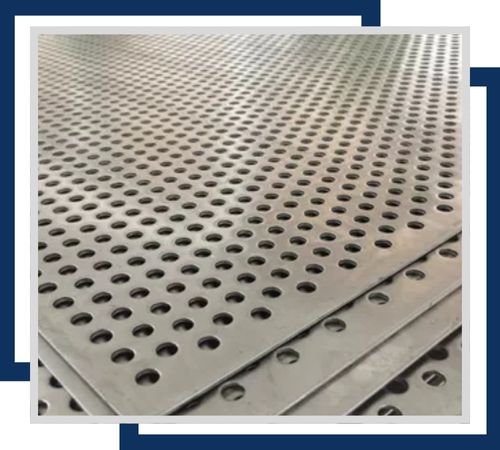

High-quality corrosion resistance is offered by stainless steel 436 perforated plates, available with custom hole patterns for effective ventilation and filtration. The product is supplied in thicknesses from 0.8 mm to 5 mm and sheet sizes up to 2000 mm x 1000 mm, and used in industrial and architectural applications.

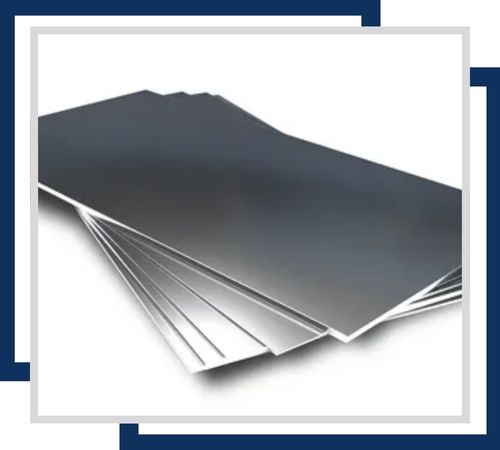

Stainless Steel 436 Shim Sheets, being reliable to corrosion resistance along with precise thicknesses for gap filling and alignment, are also available in usual thicknesses varying from 0.1mm to 3mm and usually up to a size of 3000 mm x 1500 mm with machinery and assembly processes.

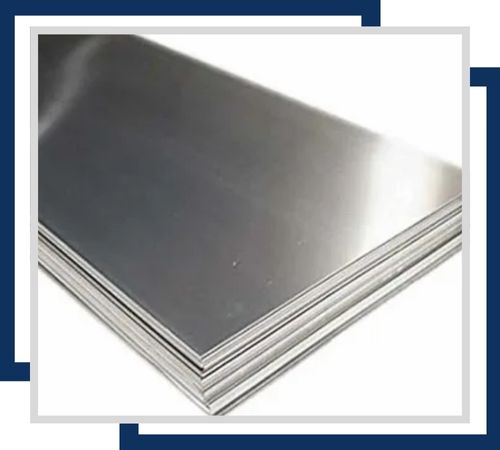

High corrosion resistance coupled with a polished finish, these Stainless Steel 436 Polished Plates are stocked in sizes up to 1500 mm x 3000 mm and can be supplied between 0.5 mm – 6mm thick. Such plates are predominantly used in decoration and architectural areas.
Merih Stainless has set out a commitment to provide the best customer services with complete documentation of its high-quality Stainless Steel 436 Sheets and Plates. The company provides primary documents such as commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports. All these documents ensure the genuinity and quality at their highest level of products and tend to increase trust and confidence among its users. Along with this, we also supply Stainless Steel 436 Sheets and Plates with multiple test certificates issued on MTC as per EN 10204/3.1b, PMI Test Certificate, radiography test reports on 100%, and third-party inspection certificate. The above proofs confirm our high regards for satisfaction to the esteemed customer and continually seeking excellence through the products produced by us.
**Sheets and Plates of Stainless Steel 436** find widespread use in applications calling for improved corrosion resistance and heat resistance, particularly in automotive exhaust components, catalytic converter components, and heat exchangers. They are also widely used in commercial kitchen equipment and architectural usage where formability, strength, and oxidation resistance are needed. 436 is suitable for use in mildly corrosive environments, especially those with chlorides, due to the presence of molybdenum. Its ferritic microstructure provides lower thermal expansion and greater thermal conductivity compared to austenitic grades, with the former being a cost-effective and efficient method for application in both thermal and structures.
