MERIH STAINLESS, based in Istanbul, Turkey, is a well-established producer and supplier of high-performance stainless steel items, such as **Stainless Steel 409 Sheets and Plates**. Focusing on quality, value, and customer satisfaction, MERIH STAINLESS supplies various industries like automotive, construction, HVAC, and industrial fabrication. Their high-tech production facilities, along with rigorous quality control procedures, provide product consistency to international standards. Reliability and quick delivery are synonymous with MERIH STAINLESS, which offers long-lasting and economical stainless steel sheet and plate solutions to domestic as well as international markets.
**Stainless Steel 409 Sheets and Plates** are produced using a ferritic stainless steel alloy containing a major percentage of 10.5–11.75% chromium and having a low carbon content of about 0.08% max. This material is intended for those applications where oxidation and corrosion resistance are critical, but where the utilization of more costly stainless steels is not required. 409 has good weldability, formability, and modest mechanical properties, with tensile strength of about 380–550 MPa and yield strength of about 170–260 MPa. While less resistant to corrosion than austenitic types, 409 resists mildly corrosive and high-temperature conditions, particularly when stabilized with titanium.
Specifications< ASTM A240 / ASME SA240
Size : 1/4″ to 4″
Range : 5mm To 150mm
Thickness : 4.0mm – 100mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
| Element | Content |
|---|---|
| Carbon | 0.08 maximum |
| Manganese | 1.00 maximum |
| Phosphorus, maximum | 0.045 maximum |
| Sulfur, maximum | 0.045 maximum |
| Silicon | 1.00 maximum |
| Nickel | 0.5 |
| Chromium | 11.75 |
| Molybdenum | – |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Ti |
|---|---|---|---|---|---|---|---|---|---|
| SS 409 | 0.030 max | 0.5 max | 1 max | – | 0.020 max | 1 max | 0.040 max | 10.5 – 11.7 | 6*(%C+%N |
Contact us to get a quick quote for your requirement.

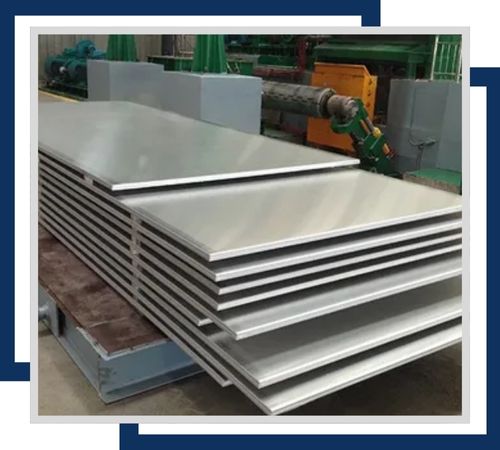

Stainless Steel 409 Hot Rolled Sheet and Plates provide good oxidation resistance and strength. These are applied in automotive exhaust systems, heat exchangers, and many more high-temperature applications that require durability.

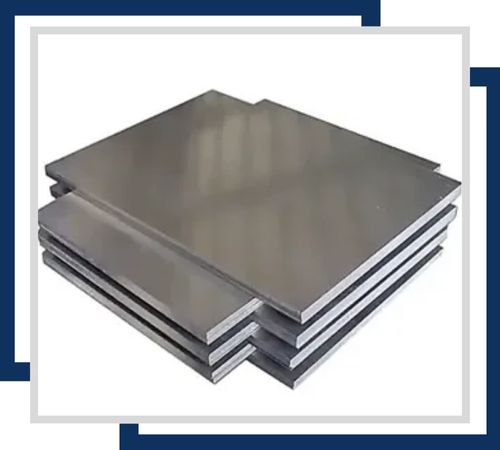

Stainless Steel 409 Cold Rolled Sheet and Plates are available with a smooth, precise finish, which provides enhanced mechanical properties, applied in automobile parts, industrial applications, and structural components that require a clean, flat surface.

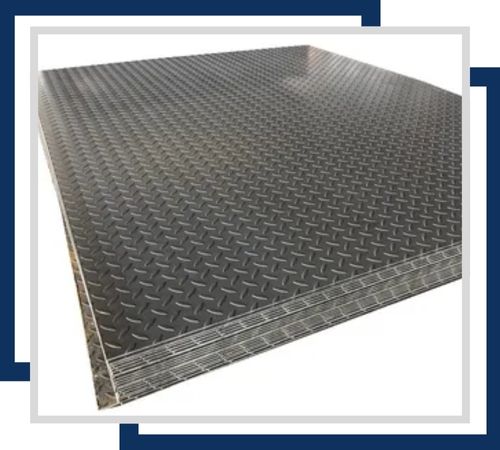

Stainless Steel 409 Chequered Sheet and Plates are applied where slip resistance and durability is required, including flooring and stair treads. It combines the strength with the corrosion resistance so it can be applied in either industrial or commercial applications.

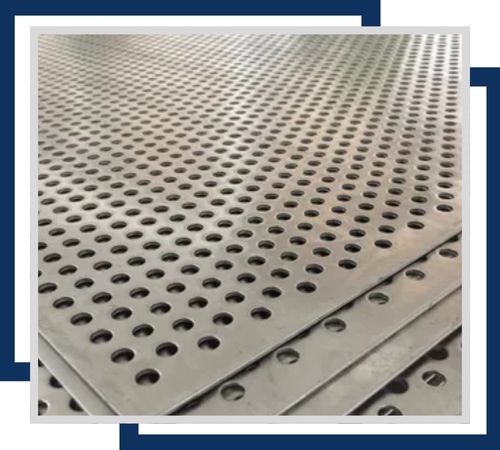

Stainless Steel 409 Perforated Sheet and Plates are used in filtration, ventilation, and aesthetic applications. They are strong and resistant to corrosion, with functional perforations that allow for the design of various custom and structural applications in high-temperature conditions.

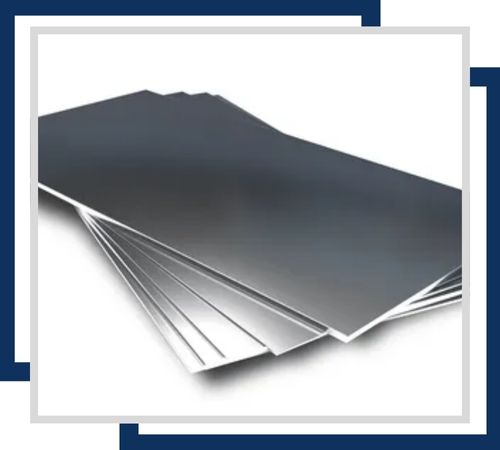

Stainless Steel 409 Shim Sheet and Plates can ensure the accuracy and rigidity to the machinery and structural parts. Owing to its properties of resistance to high temperature and corrosion, it is widely used in automobile and industrial applications where such accurate distance and alignment are a must.

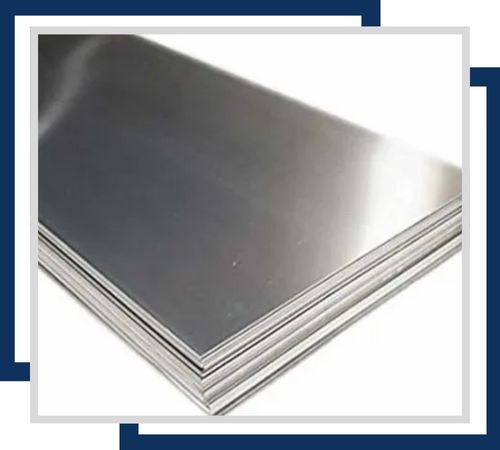

The stainless steel 409 polished sheet and plates feature a bright, shiny surface suitable for decorative and architectural purposes. They exhibit good resistance to oxidation and corrosion and can be used for aesthetic as well as functional purposes in any environment.
Merih Stainless assures the best experience for customers by providing detailed documentation of our Stainless Steel 409 Sheets and Plates. We deliver the following crucial documents: Commercial Invoice, Packing List, Fumigation Certificate, Heat Treatment Chart, Quality Assurance Plan, and NABL-approved Lab Test Report. These documents authenticate the genuineness but at the same time highlight the better quality of our products that instill confidence and trust among our esteemed customers. Furthermore, we provide Stainless Steel 409 Sheets and Plates with test certificates like MTC in accordance with EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. Those certify our customer centric focus coupled with an unstoppable insistence on perfection on our products.
**Stainless Steel 409 Sheets and Plates** are most commonly utilized in the **automotive sector**, particularly for **exhaust systems, mufflers, catalytic converters**, and other parts that need resistance to high heat and corrosive exhaust gases. They find applications in industrial air venting systems, heat shields, farm equipment, and structural support where mild corrosion resistance and economical pricing become important considerations. Because of its favorable oxidation resistance and thermal stability, 409 is a pragmatic solution for high-temperature use. Although it is not appropriate for highly corrosive or marine environments, it is a hard-wearing, cost-effective option for general-purpose and thermal-resistance use.
