MERIH STAINLESS, with its headquarters located in Istanbul, Turkey, is a renowned manufacturer and provider of high-quality stainless steel materials, such as **Stainless Steel 420 Sheets and Plates**. Dedicated to quality, research and development, and customer satisfaction, MERIH STAINLESS offers dependable solutions to automotive, medical, tooling, and industrial production industries. Their sophisticated production plants and rigorous quality control measures guarantee every sheet and plate up to international standards of performance, accuracy, and longevity. MERIH STAINLESS is known worldwide for their prompt delivery, affordable prices, and excellent technical assistance, qualifying them as a preferred source of stainless steel products.
**Stainless Steel 420 Sheets and Plates** are produced using a high-carbon martensitic stainless steel with about 12–14% chromium and 0.15–0.40% carbon. This alloy allows the material to be heat treated for high strength and hardness. Under ideal heat treatment, 420 can be given a Rockwell hardness of as high as 50 HRC with a tensile strength between 700–850 MPa and yield strength of about 500–600 MPa. It has moderate corrosion resistance, which is enhanced when in hardened condition. Though less corrosion-resistant than austenitic grades, 420 suits those situations where mechanical abrasion and wear are major considerations.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | C | Mn | Si | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 420 | 0.15 max | 1.00 max | 1.00 max | 0.04 max | 0.03 max | min: 12.0 max: 14.0 | – |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50mm) | Hardness Brinell (HB) |
|---|---|---|---|---|
| Annealed * | 655 | 345 | 25 | 241 max |
| 399°F (204°C) | 1600 | 1360 | 12 | 444 |
| 600°F (316°C) | 1580 | 1365 | 14 | 444 |
| 800°F (427°C) | 1620 | 1420 | 10 | 461 |
| 1000°F (538°C) | 1305 | 1095 | 15 | 375 |
| 1099°F (593°C) | 1035 | 810 | 18 | 302 |
| 1202°F (650°C) | 895 | 680 | 20 | 262 |
Contact us to get a quick quote for your requirement.

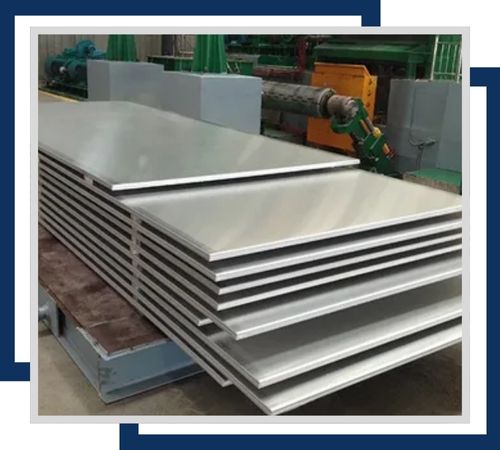

These are stainless steel 420 hot rolled sheets that can offer excellent corrosion resistance and a durability that no other material could. They range from 3mm to 12mm thickness and are most suitable for any application that calls for high strength and good machinability.

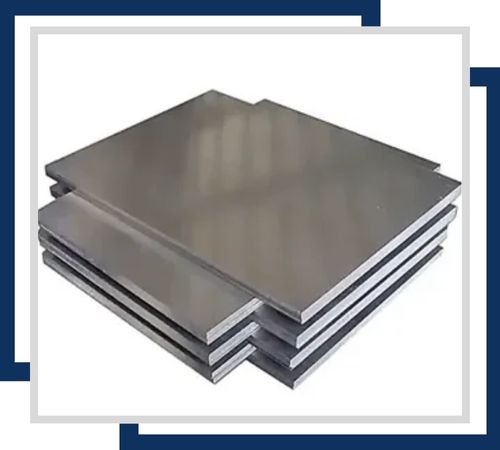

Stainless Steel 420 cold rolled plates offer excellent corrosion resistance and a bright finish. These plates are available in thicknesses ranging from 0.5mm to 6mm and are used in precision applications where dimensional accuracy and fine surface finish are critical.

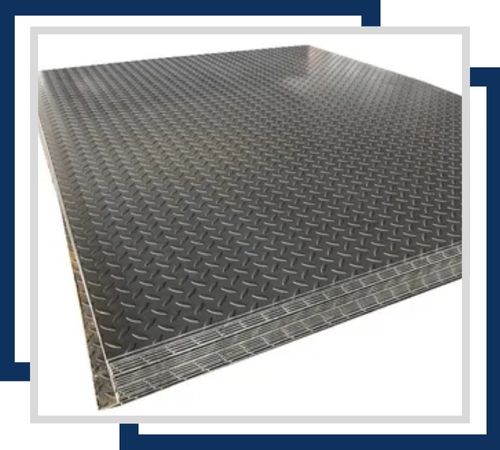

Stainless Steel 420 chequered plates combine excellent corrosion resistance with a textured surface for slip resistance. They are available in thicknesses from 2mm to 8mm and various patterns, and are widely used in flooring and safety applications.

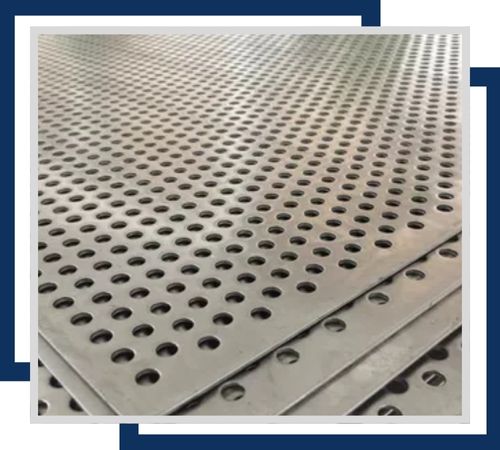

Stainless Steel 420 perforated sheets are corrosion-resistant and have uniform holes for ventilation and aesthetics. They are available in thicknesses from 1mm to 5mm and are used in filtering and architectural applications.

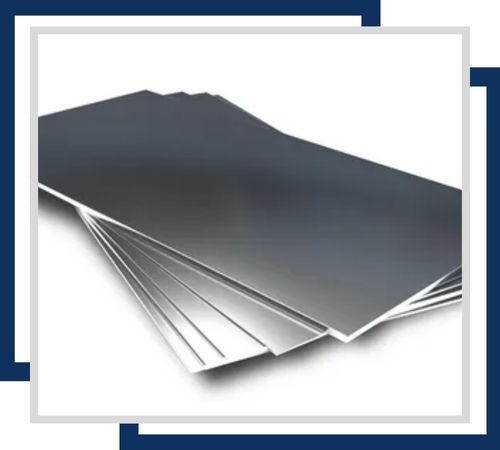

Stainless Steel 420 shim sheets are very corrosion resistant and precise. Generally available in the thickness of 0.1mm to 1mm, these are used for precise spacing and alignment in many engineering and manufacturing applications.

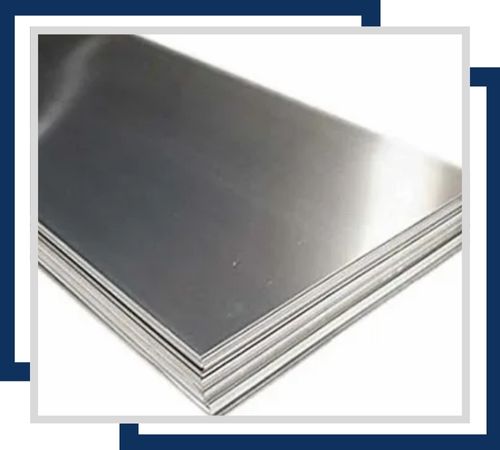

Stainless Steel 420 polished plates have excellent corrosion resistance and a reflective finish. Available in thicknesses ranging from 1mm to 10mm, they are used for decorative and high-visibility applications where aesthetic quality and resistance to oxidation are critical.
Merih Stainless is highly concerned with the customer experience and delivers that with adequate documentation of its premium-quality Stainless Steel 420 Sheets and Plates. We deliver to our clients the necessary documents like a commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report. These documents validate the genuineness and superior quality of our products and, therefore, ensure confidence in our valued customers. In addition, we provide our Stainless Steel 420 Sheets and Plates with different test certificates, including MTC according to EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate, reflecting our customer-first approach and dedication to excellence.
**420 Sheets and Plates of Stainless Steel** find extensive applications in applications that need high surface hardness, wear resistance, and fair corrosion resistance. Some common applications are cutting tools, surgical instruments, valve parts, molds, pump shafts, and industrial blades. Because they have such high polishability and hardenability, 420 sheets and plates are commonly chosen for cosmetic or precision-engineered components. They are particularly suitable for use in mildly corrosive conditions, dry environments, and instances of contact with abrasive substances. Their mechanical strength and versatility justify them being a favored choice in a variety of industries that require tough and machinable stainless steel.
