MERIH STAINLESS, based in Istanbul, Turkey, is a reliable manufacturer and supplier of premium stainless steel products, among them **Stainless Steel 410S Sheets and Plates**. With dedication to accuracy, longevity, and customer-centric service, MERIH STAINLESS caters to various industries such as construction, petrochemical, power generation, and fabrication. Their manufacturing capacity is underlined by sophisticated machinery and rigorous quality management procedures that maintain international standards. From domestic infrastructure development to stringent international applications, MERIH STAINLESS provides dependable sheet and plate solutions that meet changing mechanical and thermal requirements.
**410S Stainless Steel Sheets and Plates** are manufactured from a low-carbon, non-hardenable form of martensitic stainless steel with about 11.5–13.5% chromium and lowered carbon content (max 0.08%). Weldability is enhanced in this composition, and the possibility of hardening upon welding is minimized. 410S has moderate strength and superior resistance to oxidation and scaling at higher temperatures. Mechanical properties usually consist of a tensile strength ranging from 415–585 MPa and a yield strength of 205 MPa. Lower carbon content also adds to toughness, especially after welding or thermal cycling exposure, with retained good corrosion resistance in mildly corrosive environments.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
| Element | SS 410S |
| C | 0.08 max |
| Mn | 1 max |
| Si | 1 max |
| P | 0.040 max |
| S | 0.030 max |
| Cr | 11.5 – 13.5 |
| Fe | 85 |
| Element | SS 410S |
| Density | 7.8 g/cm3 |
| Tensile Strength | psi – 64,400, MPa – 444 |
| Yield Strength (0.2%Offset) | psi – 42,000, MPa – 290 |
| Elongation | 33 % |
| Hardness | Rockwell B (HR B)- 75 / Brinell (HB)- 65 |
Contact us to get a quick quote for your requirement.

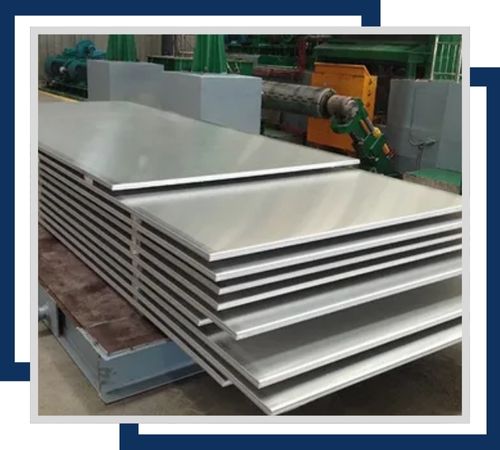

Stainless Steel 410S hot rolled sheets possess excellent corrosion resistance with high strength and toughness. The sheets come in a wide range of thicknesses, starting from 1.5 mm up to 20 mm with widths up to 2000 mm. These are suitable for high-impact resistant applications.

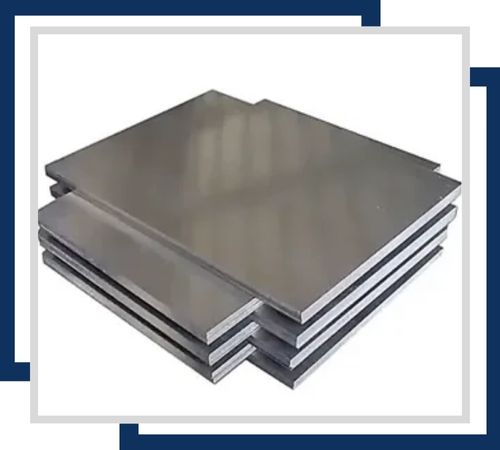

Stainless Steel 410S Cold Rolled Plates have corrosion resistance along with a smooth, bright surface finish. Usually made available in width up to 1500mm and in different thickness ranges such as 0.5-6 mm these plates are specially suited for use in precision engineering and for critical applications where closer tolerances apply.

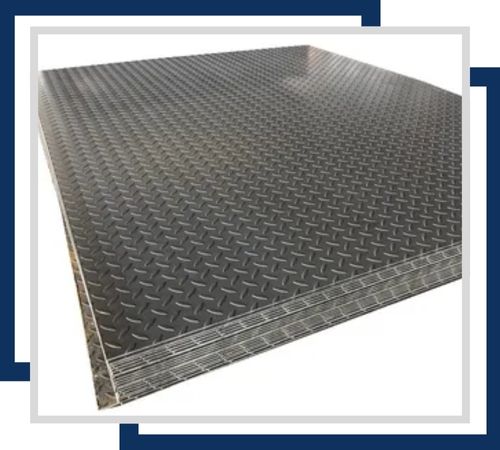

Stainless Steel 410S Chequered Sheets have a raised pattern, which gives excellent corrosion and slip resistance. These sheets are available in various thicknesses from 1.2 mm to 6 mm and up to 2000 mm x 1000 mm dimensions, which make them suitable for flooring and decorative applications.

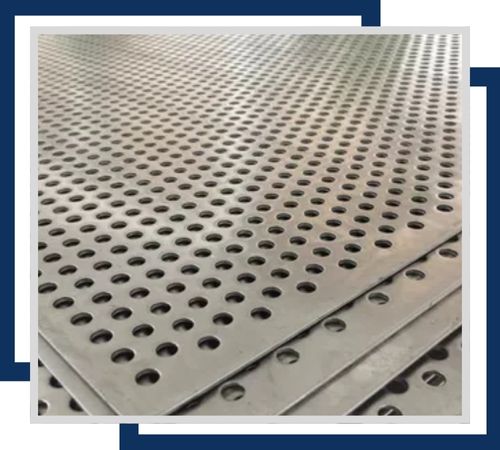

Stainless Steel 410S Perforated Plates combine protection against corrosion with increased ventilation and aesthetics. The perforated plates are available in a number of hole sizes and patterns, available in thicknesses ranging from 1 mm up to 4 mm and available in dimensions up to 2500 mm × 1200 mm for filters and screens.

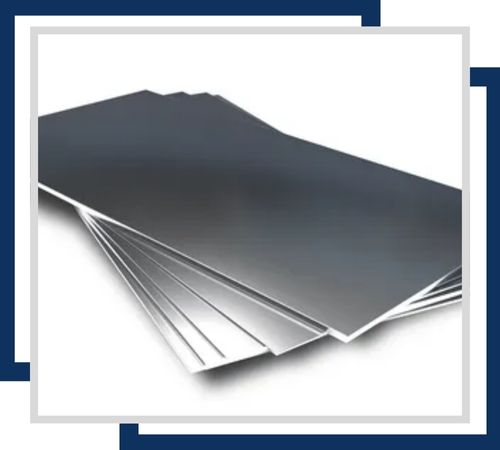

The Shim Sheets of Stainless Steel 410S are available with corrosion resistance and precise control over thickness. These sheets are available in 0.1 mm thickness up to 1000 mm x 1000 mm, cut to size for fine-tuning mechanical fits.

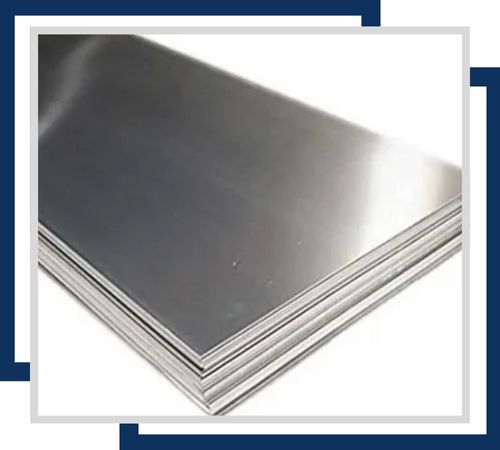

Stainless Steel 410S polished plates offer outstanding corrosion resistance and have a highly reflective finish. The plates are usually available in sizes up to 2000 mm x 1000 mm with thickness between 1mm and 6mm. Stainless Steel 410S Polished Plates are used in aesthetic applications as well as in decorative purposes.
Merih Stainless guarantees a high customer experience by completing all the necessary documentation of high-quality Stainless Steel 410S Sheets and Plates. We will provide our customer with commercial invoices, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and lab test reports certified by NABL-approved labs to prove authenticity and superior quality in our products that can give complete trust and satisfaction to our respected customers. Additionally, our Stainless Steel 410S Sheets and Plates are supplied with test certificates such as MTC as per EN 10204/3.1b, PMI Test Certificate, a 100% radiography test report, and Third Party Inspection Certificate. These certificates reflect our customer-focused approach and our very strong commitment to product excellence.
**410S Stainless Steel Sheets and Plates** find extensive usage in cases where resistance to higher temperatures and oxidation resistance are of more concern than high strength. Some of the common uses of 410S include components for furnaces, heat exchangers, exhaust systems, thermal processing equipment, and power plant ducting. Their excellent formability, weldability, and thermal fatigue resistance have made them perfect for fabrication jobs involving cyclic heating and cooling. Although they are not recommended for extreme corrosive environments, 410S is suitable for atmospheric, steam, and mildly corrosive conditions, thus it can be used in a wide range of structural and heat-resistant applications at a reasonable cost.
