MERIH STAINLESS, based in Istanbul, Turkey, stands out as a top manufacturer and supplier of premium stainless steel products. Their Stainless Steel 310H Sheets and Plates are specifically designed for high-temperature applications, offering remarkable strength, corrosion resistance, and durability. Crafted to meet international standards, these sheets and plates boast precise dimensions, a smooth surface finish, and dependable performance even in extreme conditions. Perfect for sectors like chemical, petrochemical, power generation, and various industrial applications, MERIH STAINLESS 310H sheets and plates guarantee long-lasting operational efficiency. They’re also great for fabrication, forming, and welding, providing sturdy, maintenance-free solutions for critical high-temperature systems.
Stainless Steel 310H Sheets and Plates are mainly made up of iron, chromium, and nickel, with a slightly higher carbon content than standard 310 to boost high-temperature strength. In terms of mechanical properties, they showcase excellent tensile strength, yield strength, hardness, and good ductility, ensuring they’re durable and easy to work with. This alloy offers outstanding resistance to oxidation, scaling, and corrosion in high-temperature settings. These characteristics make 310H sheets and plates perfect for structural components, pressure vessels, and piping systems that face prolonged high-temperature service while keeping their dimensional stability and mechanical integrity intact.
| Specifications | : | ASTM A240 / ASME SA240 |
| Standard | : | ASTM, ASME and API |
| Thickness | : | 4.0mm – 100mm |
| Specialize | : | Shim Sheet, Perforated Sheet, B. Q. Profile. |
| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | : | SS 310H, (UNS S31009) |
| Grade | Fe | Cr | Ni | Mn | Si | C | P | S |
| SS 310H | – | 26.0-24.0 | 21.0-19.0 | 2.00 | 1.00 | 0.10 | – | 0.030 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | HardnessRockwell B (HR B) max | Hardness Brinell (HB) max |
| 310H | 515 | 205 | 40 | 95 | 217 |
Contact us to get a quick quote for your requirement.

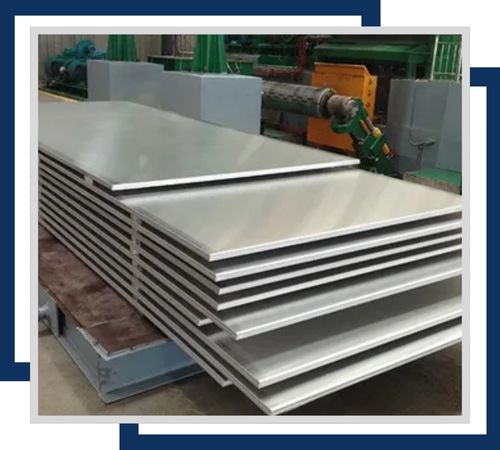

Stainless Steel 310H Hot Rolled Sheets are known for excellent high-temperature corrosion resistance. These are generally available in 2mm to 50mm thickness and widths up to 2000mm and are suitable for structural applications that require strength and durability.

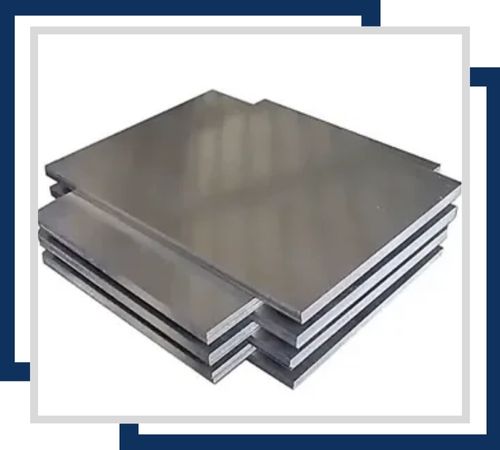

The plates are high in corrosion resistance and the surface finish is even. They come in the thickness range of 0.5mm to 6mm and 1500mm widths. They can be used in applications requiring precise dimensions and higher surface quality.

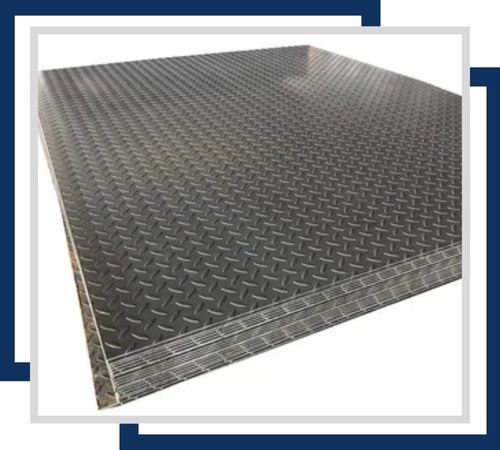

Stainless Steel 310H Chequered Plates have improved slip and high-temperature corrosion resistance. They are available in 3mm to 12mm in thickness and widths up to 1250mm. The product is excellent for flooring and high-traction applications.

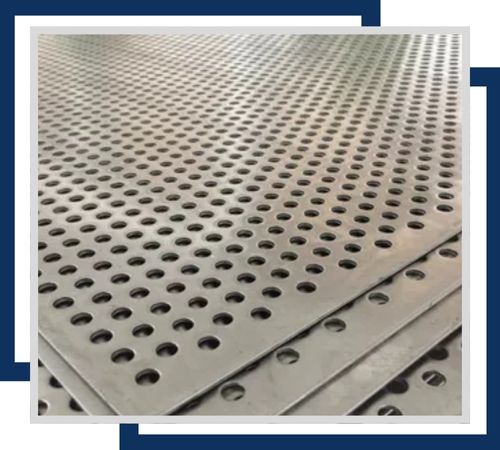

Stainless Steel 310H Perforated Sheets offer high corrosion resistance with customized hole patterns for filtration and ventilation. The sheet sizes are generally available in 0.5mm to 6mm in thickness and up to 2000mm in width. It is used in industrial and architectural applications.

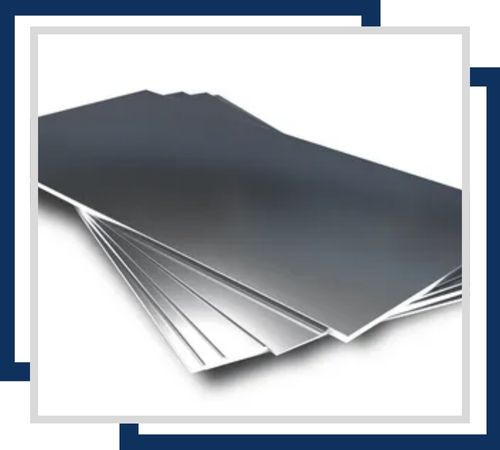

Stainless Steel 310H Shim Sheets are known for their excellent corrosion resistance at high temperatures and are used for spacing and alignment applications. The range of thickness offered is from 0.1mm to 2mm and sizes up to 1000mm x 2000mm, which offers flexibility in application.

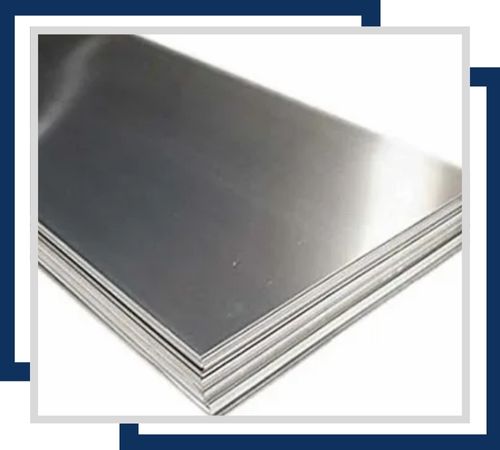

The stainless steel 310H polished plates feature high-temperature corrosion resistance with a mirror-like finish. Available in thicknesses from 1mm to 25mm and widths up to 1500mm, these plates are used in decorative and high-visibility applications where aesthetic quality is important.
Merih Stainless promises its customers a hassle-free experience. We offer our customers all the documents they require for the purchase of high-quality Stainless Steel 310H Sheets and Plates. We offer the following necessary documents: commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test reports, thus making our products authentic and superior. In addition, our Stainless Steel 310H Sheets and Plates are provided with several test certificates like MTC according to EN 10204/3.1b, PMI Test Certificates, 100% radiography test reports, and Third Party Inspection Certificates. Such certificates highlight the commitment towards customers’ satisfaction as well as continued efforts toward the achievement of excellence in product quality.
Stainless Steel 310H Sheets and Plates find extensive use in industries that demand materials capable of withstanding high temperatures, corrosion, and wear. They’re ideal for furnace parts, heat exchangers, kiln linings, petrochemical and chemical processing equipment, as well as components for power generation. These sheets and plates are well-suited for boilers, exhaust systems, furnace components, and industrial machinery that are exposed to extreme heat. The higher carbon content ensures improved creep and tensile strength at elevated temperatures, making them a reliable choice for demanding applications.
