MERIH STAINLESS, which is Istanbul, Turkey-based, is a trustworthy manufacturer and distributor of high-quality Stainless Steel 304/304L Sheets and Plates. Acclaimed for its focus on quality and precision engineering, MERIH STAINLESS provides flat products that are of international standards for corrosion resistance and endurance. Their 304/304L sheets and plates are extensively applied in numerous industries, such as food processing, chemical, and architectural applications. With state-of-the-art production methods and strict quality checks, MERIH STAINLESS guarantees reliable performance of the products, prompt delivery, and superior customer service, and thus they are a reliable business partner in the stainless steel market.
Stainless Steel 304/304L Sheets and Plates are austenitic stainless steels with Composition: Chromium (18–20%), Nickel (8–12%), and controlled Carbon content—304: ≤0.08%, 304L: ≤0.03%. This alloy exhibits superior resistance to corrosion, good weldability, and very high strength. Mechanical properties are a minimum tensile strength of 515 MPa, minimum yield strength of 205 MPa, and elongation of approximately 40%. Lower carbon content in 304L is responsible for decreased carbide precipitation during welding and minimizes the risk of intergranular attack. Both grades are good for use in a variety of fabrication processes.
Stainless Steel Sheets and Plates Specification : ASTM A240 / ASME SA240
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| C | Mn | Si | P | S | Cr | Ni | N | |
|---|---|---|---|---|---|---|---|---|
| 304 | 0.07max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 10.5 | — |
| 304L | 0.03max | 2.0max | 0.75max | 0.045max | 0.03max | min: 18.0 max: 20.0 | min: 8.0 max: 12.0 | 0.10 max |
| Grade | Tensile Strength ksi (min) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Brinell) MAX | Hardness (Rockwell B) MAX |
|---|---|---|---|---|---|
| 304 | 75 | 30 | 40 | 201 | 92 |
| 304L | 70 | 25 | 40 | 201 | 92 |
Contact us to get a quick quote for your requirement.

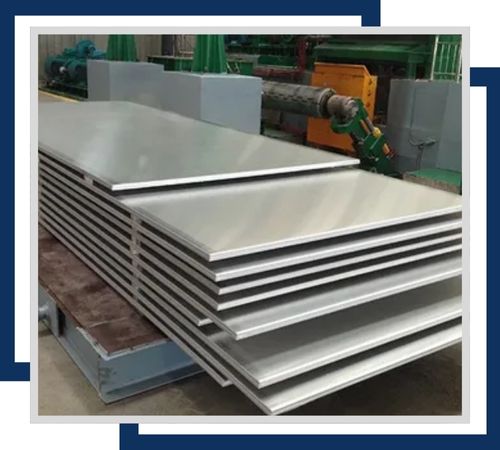

This type of stainless steel is known for its good corrosion resistance. The thickness of this type of stainless steel ranges from 3mm to 100mm. The sheets and plates are available in sizes up to 1500mm x 3000mm. Suitable for structural applications and industrial uses.

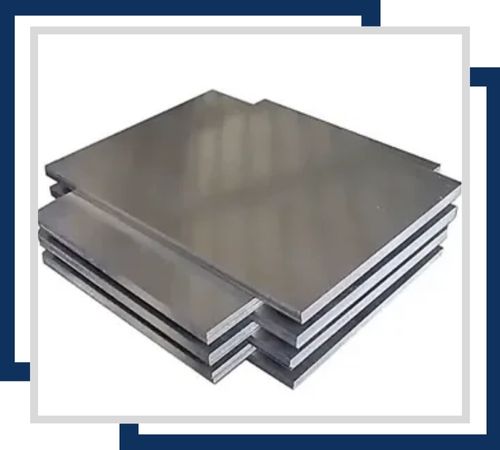

Offering great corrosion resistance, 304L cold-rolled sheets and plates are well known for smooth finish. These are available in thicknesses of 0.5mm up to 12mm, standard sizes up to 1500mm x 3000mm. They are ideal for applications requiring high-quality surface.

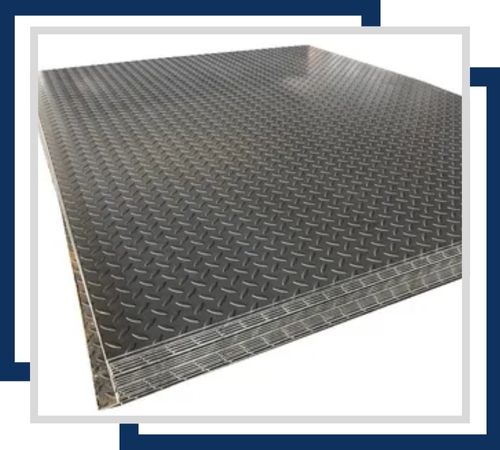

With superior corrosion resistance, 304L chequered sheets and plates are designed for anti-slip applications. They typically come in 2mm to 6mm thicknesses and sizes up to 1500mm x 3000mm. They are commonly used in flooring and stair treads.

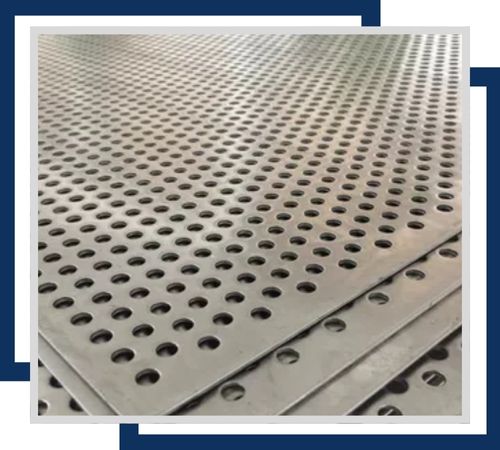

Featuring excellent corrosion resistance, these hole-perforated sheets and plates come in different hole patterns, size, and thickness with a specified range of 0.5mm to 6mm, standard dimension up to 1500mm x 3000mm, suitable for filtration and decorative uses.

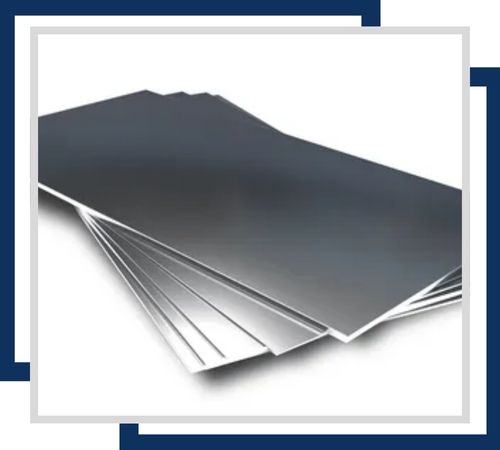

304 shim sheets and plates have good corrosion resistance. They can be as thin as 0.1mm. Standard sizes can go up to 1500mm x 3000mm. These are used in machinery for accurate spacing and adjustment.

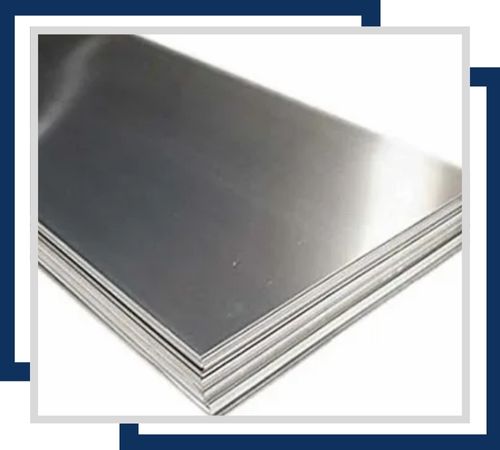

304 polished sheets and plates offer excellent corrosion resistance and a high-gloss finish. Thicknesses from 0.5mm to 12mm, and sizes up to 1500mm x 3000mm. Aesthetic and architectural applications.
Merih Stainless aims at making the purchase process hassle-free for its clients by offering detailed documentation of excellent quality Stainless Steel 304/304L Sheets and Plates. These include critical commercial invoices, packing lists, fumigation certificates, heat treatment charts, quality assurance plans, and NABL-approved lab test reports, which give the authenticity and premium quality to our products. We also offer Stainless Steel 304/304L Sheets and Plates with Test Certificate like EN 10204 3.1b, PMI Test Certificate, radiography test reports of 100%, and third-party inspection. It shows us focused on satisfaction to our valued customers and also hard work.
304/304L Stainless Steel Sheets and Plates find extensive applications in situations where moderate corrosion resistance along with superb mechanical properties are required. They are used extensively in food and beverage processing, pharmaceutical equipment, chemical vessels, building cladding, and automobile components. Their oxidation resistance and ease of fabrication make them suitable for kitchen appliances, heat exchangers, and piping systems. The 304L grade is used in welded construction and those applications where post-weld heat treatment is not possible. They are versatile and rugged, so they are a common selection for most general-purpose applications in various industries.
