MERIH STAINLESS, based in Istanbul, Turkey, is a reliable manufacturer and supplier of high-quality stainless steel products. Their Stainless Steel 317 Sheets and Plates are designed to perform exceptionally well in harsh and corrosive environments. Crafted with precision and in line with international quality standards, these sheets and plates boast impressive resistance to pitting, crevice corrosion, and oxidation. With consistent dimensions, a smooth finish, and outstanding durability, MERIH STAINLESS guarantees that their products cater to the needs of industrial, chemical, and marine applications. These sheets and plates are perfect for critical operations where reliability, strength, and long-lasting performance are crucial.
Stainless Steel 317 Sheets and Plates mainly consist of iron, chromium, nickel, and molybdenum, with small amounts of manganese and silicon added to boost corrosion resistance. The high molybdenum content ensures excellent protection against pitting and crevice corrosion, especially in environments rich in chlorides. On the mechanical side, these sheets and plates deliver high tensile strength, yield strength, and hardness, while also offering good ductility and toughness. Their properties make them ideal for forming, welding, and fabrication processes, all while maintaining structural integrity and performance under high stress and temperature conditions in industrial settings.
Specifications: ASTM A240 / ASME SA240
Dimensions: ASTM, ASME, and API.
Width: 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Thickness:4mm-100mm
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface Finish: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Form: Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
|
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
7.9 g/cm3 |
1400 °C (2550 °F) |
Psi – 75000, MPa – 515 |
Psi – 30000, MPa – 205 |
35 % |
Contact us to get a quick quote for your requirement.

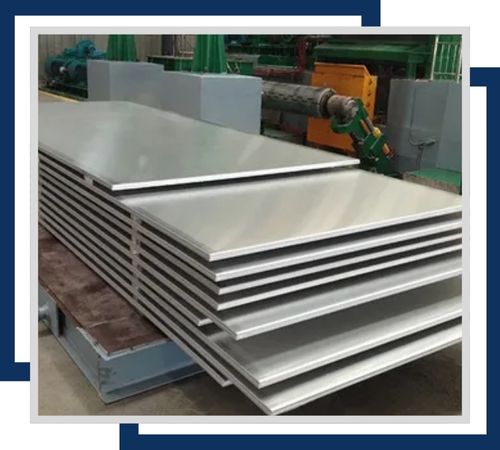

Stainless Steel 317 Hot Rolled Sheet and Plates provide excellent strength along with excellent corrosion resistance for high-temperature and aggressive chemical environments. They are used in industrial applications requiring durability and toughness.

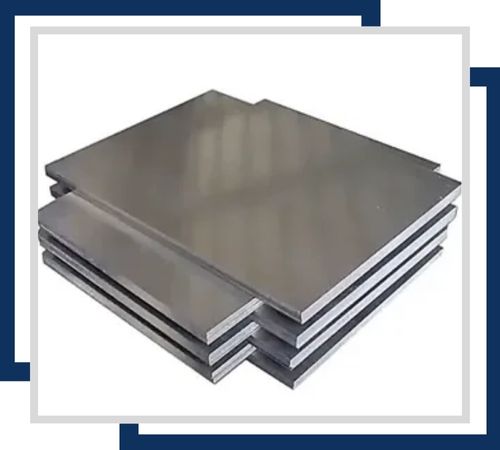

Stainless Steel 317 Cold Rolled Sheet and Plates provide a smooth surface finish and precise dimensions, suitable for any applications in chemical, marine, pharmaceutical industries with high requirements of superior corrosion resistance and aesthetic quality.

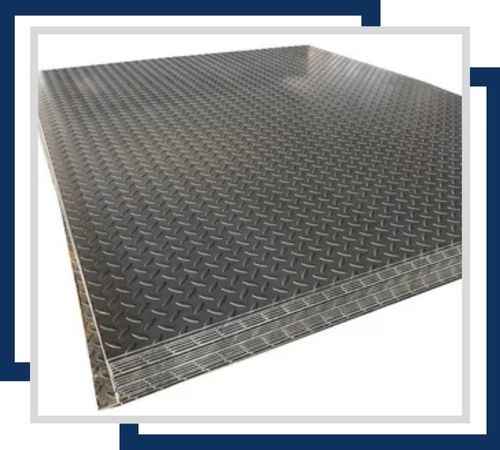

Stainless Steel 317 Chequered Sheet and Plates are used in slip-resistant and long-lasting applications like flooring and stair treads. They are excellent corrosion-resistant materials, which can be used for both industrial and decorative purposes.

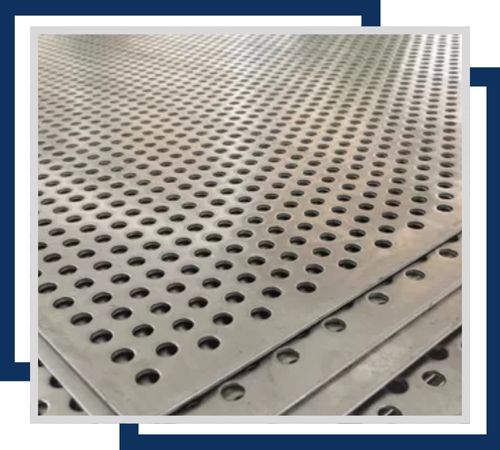

Stainless Steel 317 Perforated Sheet and Plates are used for filtration, ventilation, and architecture. It incorporates strength with the corrosion resistance capabilities of the plates along with useful perforations; hence, ideal for custom design and structural purposes in aggressive applications.

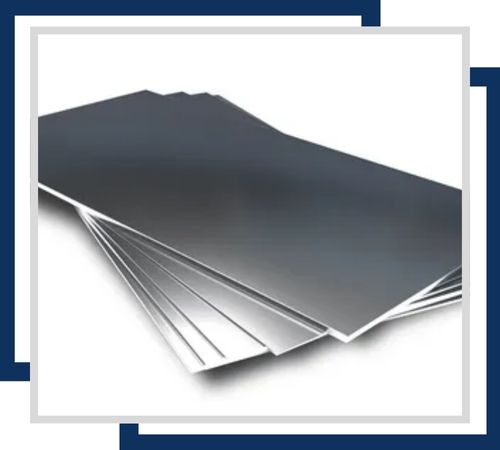

Stainless Steel 317 Shim Sheet and Plates are deployed for precision spacing and alignment within machinery and equipment. It shows high strength as well as resistant to corrosion features, thus sustaining stability and endurance in critical operations.

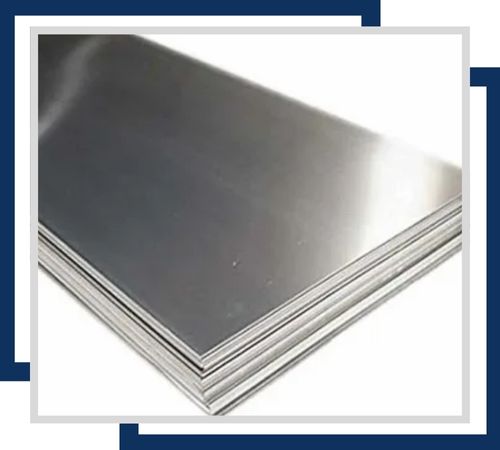

Stainless Steel 317 Polished Sheet and Plates have a very high-quality, reflective finish which is suitable for decorative and architectural applications. These have excellent corrosion resistance and are used in the environments where the appearance and durability are key requirements.
Stainless Steel 317 Sheets and Plates find extensive use in industries that demand corrosion-resistant, high-performance materials. They are perfect for chemical processing equipment, petrochemical plants, pharmaceutical machinery, and marine applications. Their remarkable resistance to acids, chlorides, and high temperatures makes them suitable for heat exchangers, pressure vessels, storage tanks, and piping systems. Additionally, they are utilized in food processing, wastewater treatment, and industrial machinery, where durability and hygiene are paramount.
