MERIH STAINLESS, located in Istanbul, Turkey, has made a name for itself as a leading manufacturer and supplier of top-notch Stainless Steel 904L Sheets and Plates, serving both local and global markets. The company prides itself on precision engineering, durability, and a commitment to customer satisfaction, ensuring that their products meet international quality standards and cater to a variety of industrial needs. Known for their exceptional resistance to corrosion, impressive strength, and ability to thrive in tough environments, MERIH STAINLESS has become a go-to partner for industries in need of high-quality stainless steel solutions.
Stainless Steel 904L Sheets and Plates are crafted from low-carbon, high-alloy austenitic stainless steels, packed with high levels of chromium, nickel, molybdenum, and copper. This unique composition grants them remarkable resistance to pitting and stress corrosion cracking. They also boast excellent toughness, non-magnetic characteristics, and high weldability. With a tensile strength of about 490 MPa and good elongation, these sheets and plates offer outstanding mechanical performance. Their impressive resistance to strong reducing acids, such as sulfuric acid, makes them a top choice for extremely corrosive environments.
| Standard | ASTM A240, ASME SA240 |
| Thickness | 0.1mm to 12 mm Thk |
| Sheet and Plate Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching. |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated). |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Contact us to get a quick quote for your requirement.

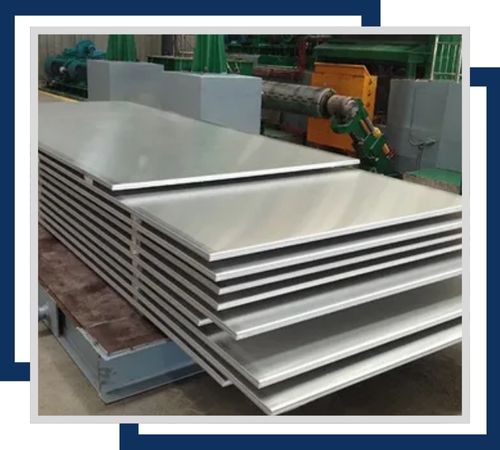

Stainless Steel 904L hot rolled sheets exhibit excellent corrosion resistance in aggressive conditions, such as acids and chlorides. Thicknesses range between 3mm to 25mm, while widths can be up to 2 meters in size. This sheet is employed in heavy-duty applications where robust structural integrity is demanded.

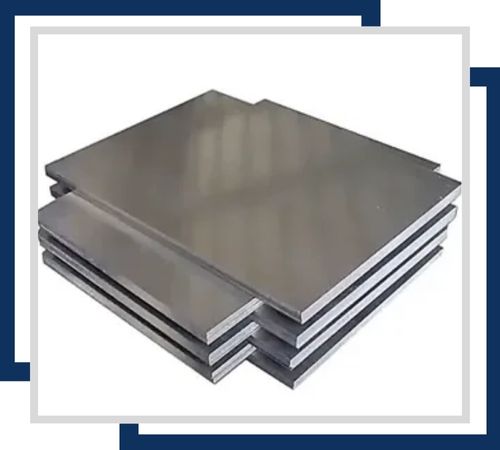

Stainless Steel 904L Cold Rolled Plates are alloyed with austenitic with excellent corrosion protection against strong acids and chlorides. These 904L sheets are available up to 0.5-3 mm, with widths ranging up to 1.5 meters. Plates are also featured with a highly smooth surface polish that can use for precise aesthetics.

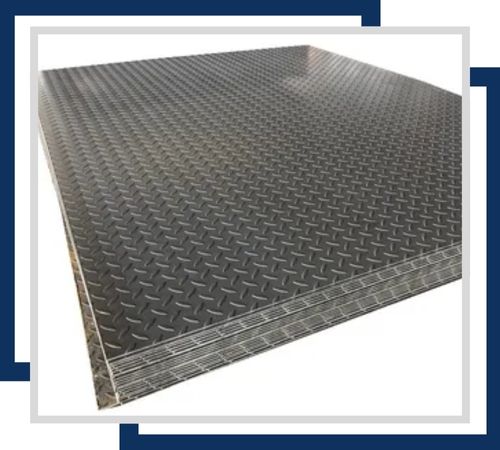

Stainless Steel 904L Chequered Sheets have a patterned surface that enhances slip resistance while maintaining excellent corrosion resistance. Available in common thicknesses of 2 mm to 6 mm and up to 1.2 meters in width, these sheets are ideal for flooring and other high-traction surfaces.

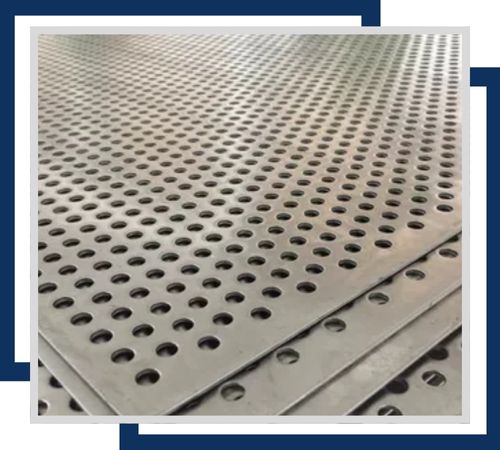

Stainless steel perforated plates from the 904L grade combine corrosion resistance with customized perforation patterns for ventilation and filtration. Thicknesses range from 1 mm to 8 mm, and the size up to 1.2 meters by 2.4 meters accommodates industrial and architectural applications.

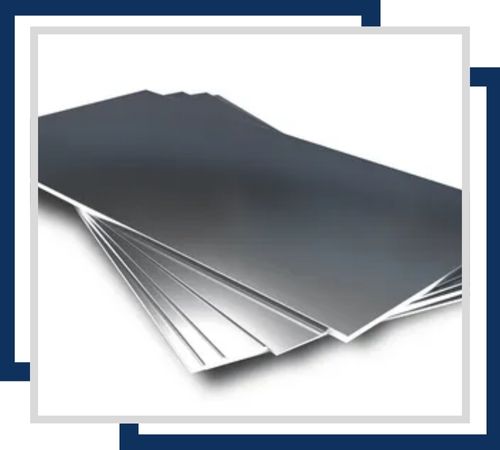

Stainless Steel 904L Shim Sheets are excellent resistance to aggressive environments and precise thicknesses for the application. Normally available in a thickness range from 0.1 mm up to 3 mm and size up to 1 meter by 2 meters, these sheets are used for gap filling and alignment.

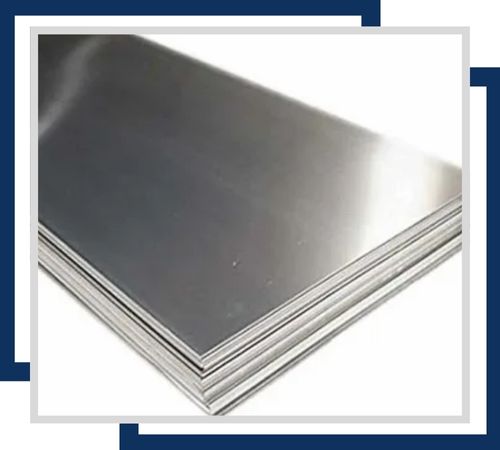

Stainless Steel 904L Polished Plates are known for their excellent finish and high corrosion resistance. They are very suitable for decorative and high-end applications. Thicknesses available are from 1 mm to 50 mm, and the maximum dimensions can go up to 2 meters by 6 meters, making them aesthetically pleasing and durable.
Merih Stainless is committed to providing an experience of excellence to all its customers who purchase our Premium Quality Stainless Steel 904L Sheets and Plates by providing complete documents. We send the commercial invoice, packing list, fumigation certificate, heat treatment chart, quality assurance plan, and NABL-approved lab test report, which certifies the originality and high quality of our products. To further boost the confidence of our clients, we provide the Stainless Steel 904L Sheets and Plates with a range of test certificates, such as MTC as per EN 10204/3.1b, PMI Test Certificate, 100% radiography test report, and Third Party Inspection Certificate. We express our promising commitment to our customers in terms of satisfaction, and on going to evolve into excellence in product quality.
These Stainless Steel 904L Sheets and Plates find extensive use in industries like chemical processing, oil and gas, petrochemical, and power generation, thanks to their ability to withstand harsh conditions. They’re also utilized in marine engineering, heat exchangers, and pollution control equipment, where resistance to chloride-induced corrosion is essential. Additionally, their durability and formability make them ideal for pharmaceutical equipment, the paper and pulp industry, and food processing machinery. With their superior strength, corrosion resistance, and reliability, Stainless Steel 904L Sheets and Plates ensure long-lasting performance across a wide range of industrial applications.
